4 manufacturer photos · 1 / 4
Atomstack · Diode

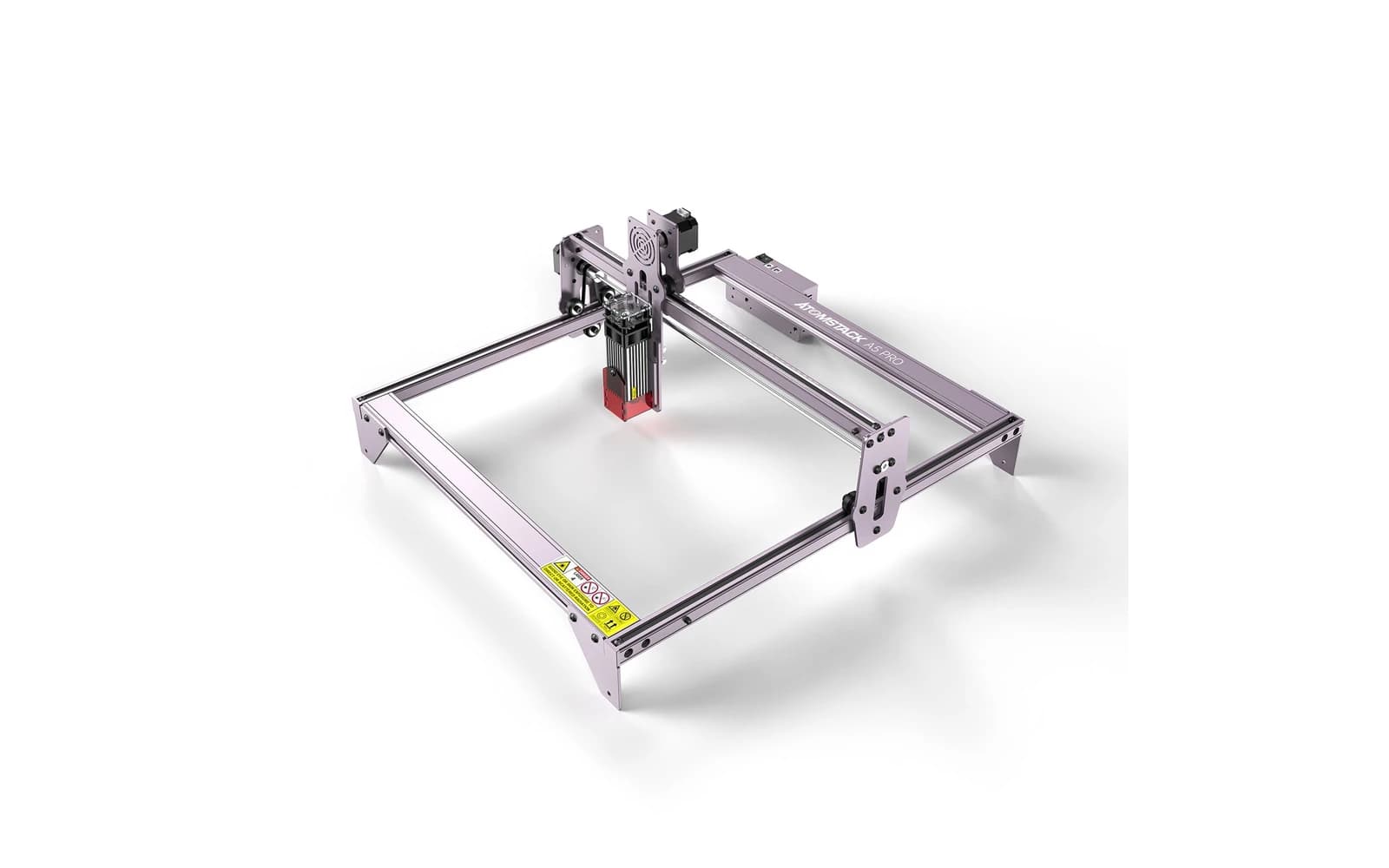

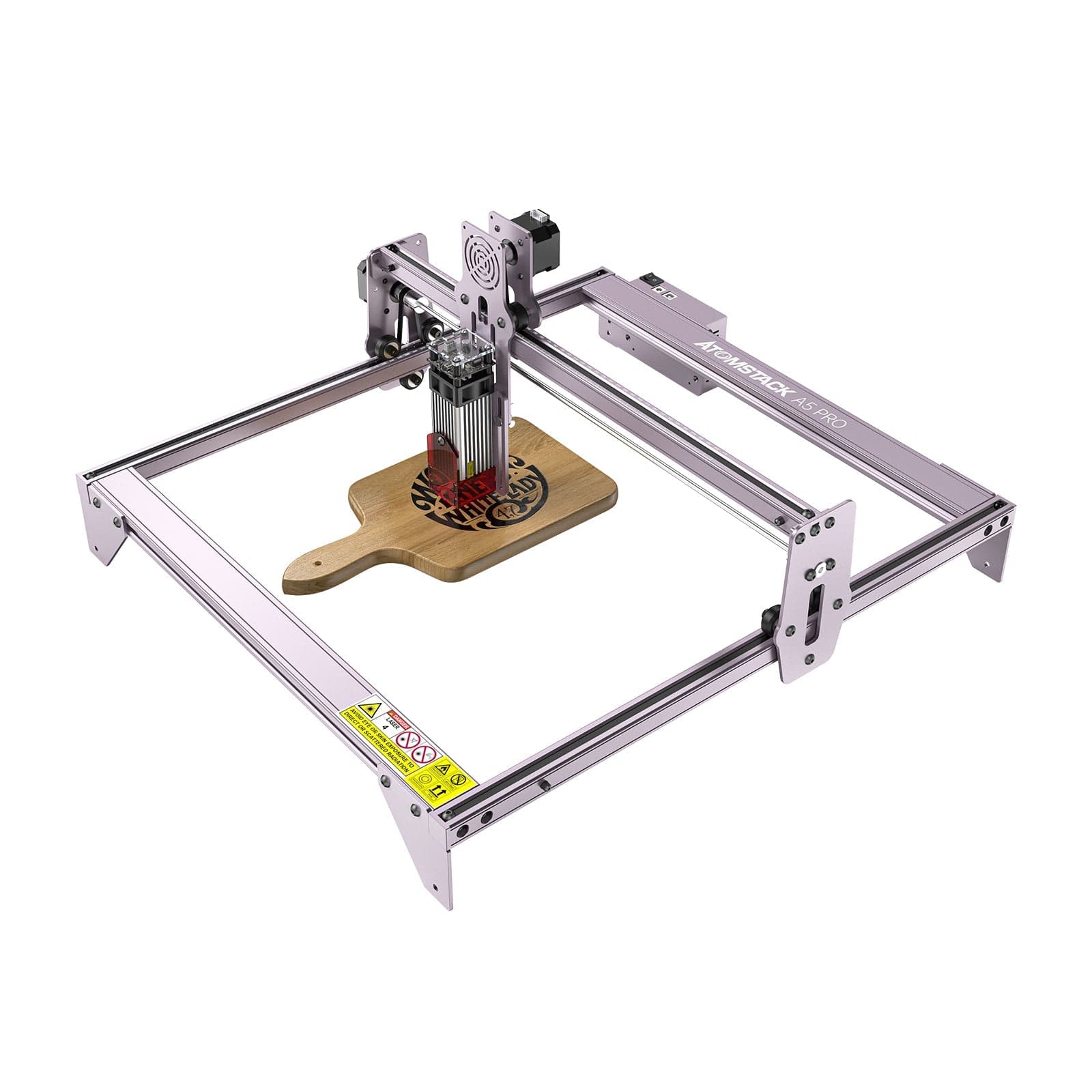

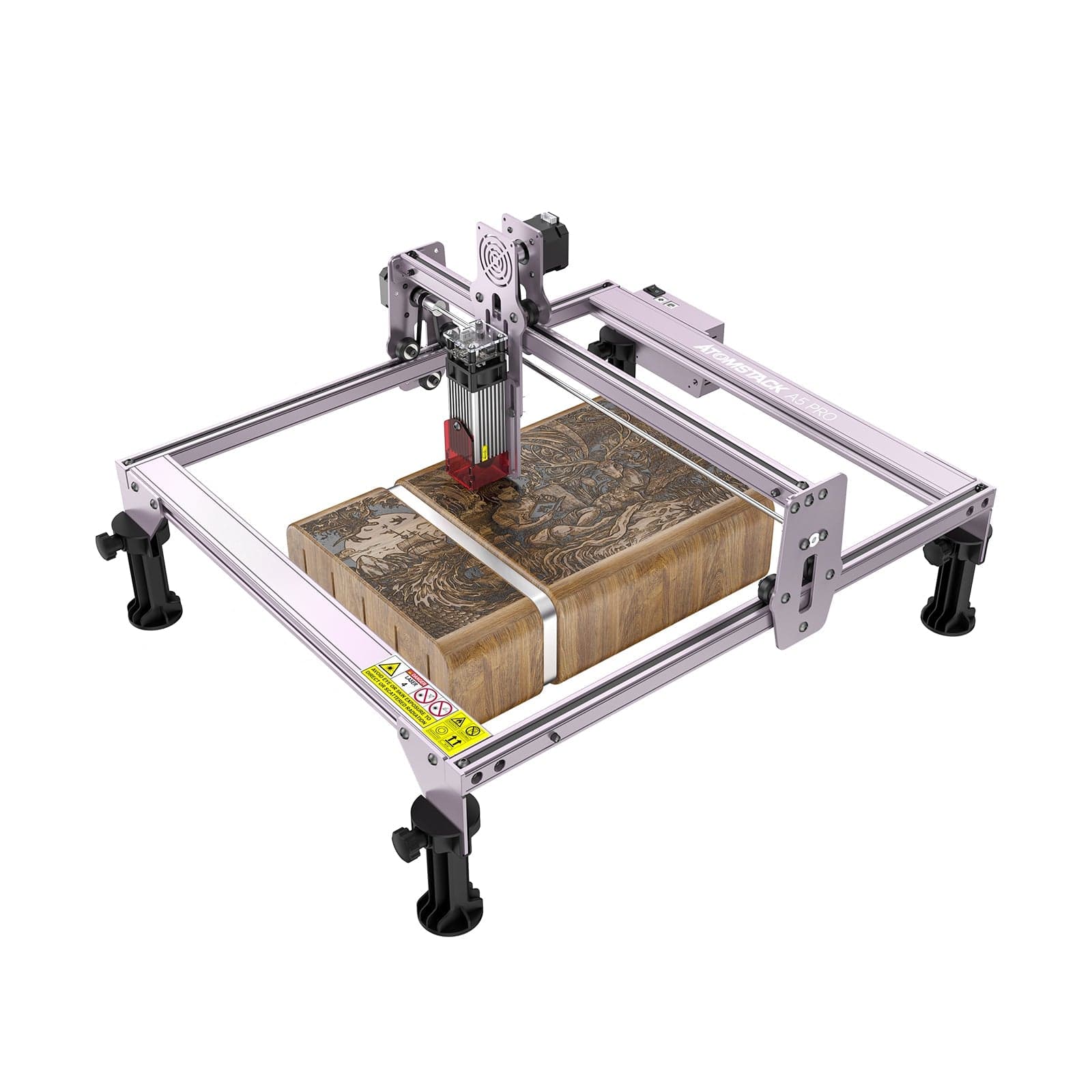

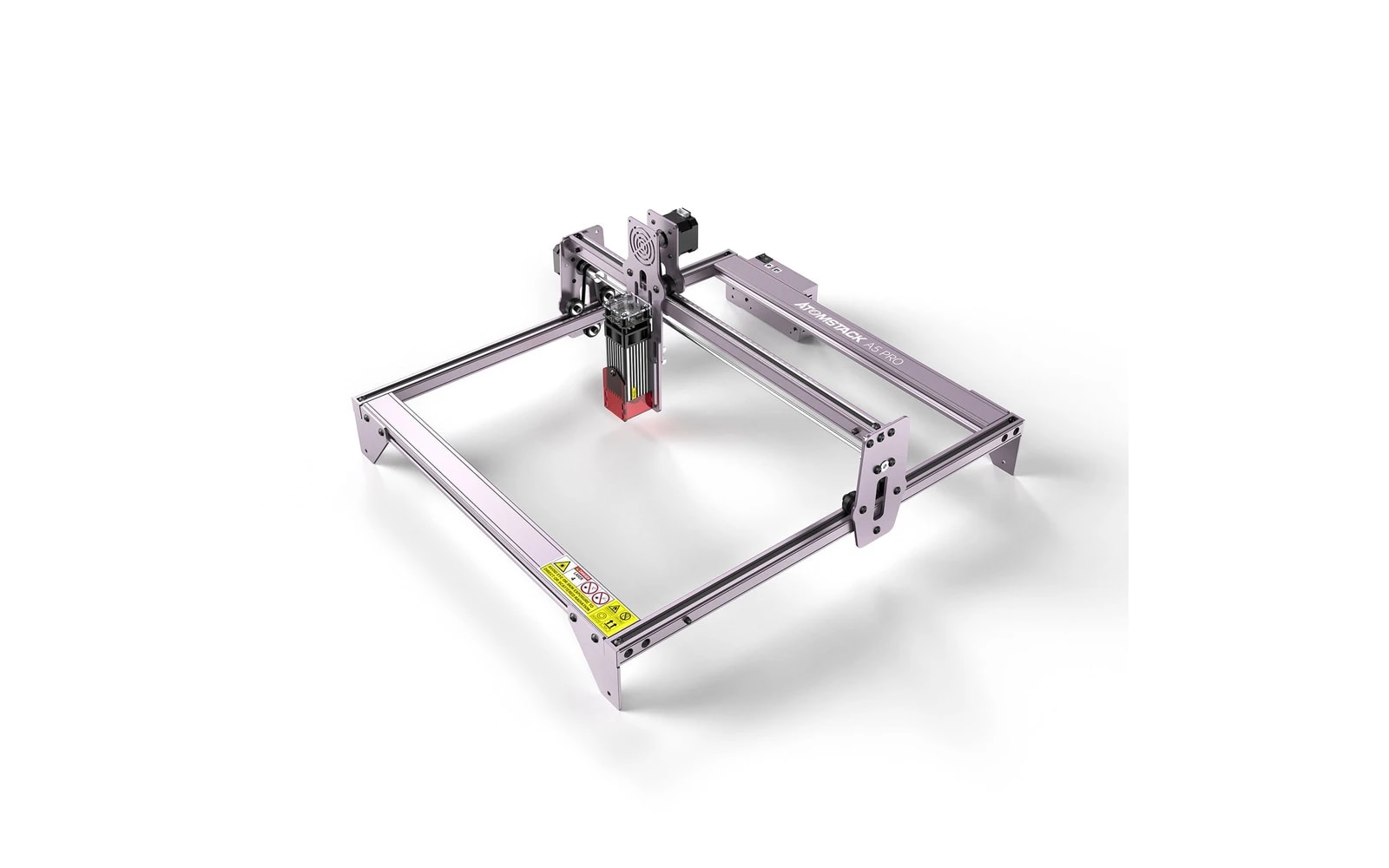

Atomstack A5 Pro · 10W
10W Ultra-budget diode laser: minimum viable entry point
All Atomstack models →Add to compare →
Last updated How we evaluate
Discontinued
Atomstack no longer sells this machine new. We keep the profile online because it still turns up used and as a reference point.
Choose a power option
Details below update for the selected power option.
Showing specs for: 10W
TL;DR
Atomstack A5 Pro 10W is the 10W SKU on the Atomstack atomstack a5 pro line. One of the cheapest ways to try laser engraving. Verify optical power on the listing: do not assume combined-watt marketing.
Compare the Atomstack A5 Pro 10W to…
Popular side-by-side matchups with full specs, scores, and an honest verdict.
Best for
What makes this machine stand out
Hardware and workflow features worth understanding before you buy : not just wattage on a label.
The practical middle tier
Roughly 35% shorter photo and cut times than the 5W in our benchmark, for about $50 more.
Basswood up to 5 mm
Enough for ornaments, puzzles and small boxes in our profile, with air assist and a few passes.
Our verdict
Ideal if you
Atomstack A5 Pro 10W suits makers who sell marks, photos, and gifts more than daily panel cutting. Reasonable open-frame entry price.
Skip if you
Skip if you already quote 5 mm+ cutting in production: see 20W in the line. Not for cast acrylic or bare metal without spray.
Pros
- Cuts a 10 × 10 cm square in 3 mm basswood in ~9–15 min in our benchmark, versus ~14–24 min for the 5W
- Basswood up to 5 mm in our profile, enough for ornaments and small boxes
- $249–349 range, about $50 above the 5W for roughly 35% shorter photo fills
Cons
- Discontinued: spare modules and support depend on the seller
- Wider spot than the 5W in our profile (~0.09 mm vs ~0.08 mm): photos are slightly softer
- Black acrylic and anything above 5 mm wood are out of practical reach
What this machine is for
High-quality hobby and light-business engraving with light, slow cutting

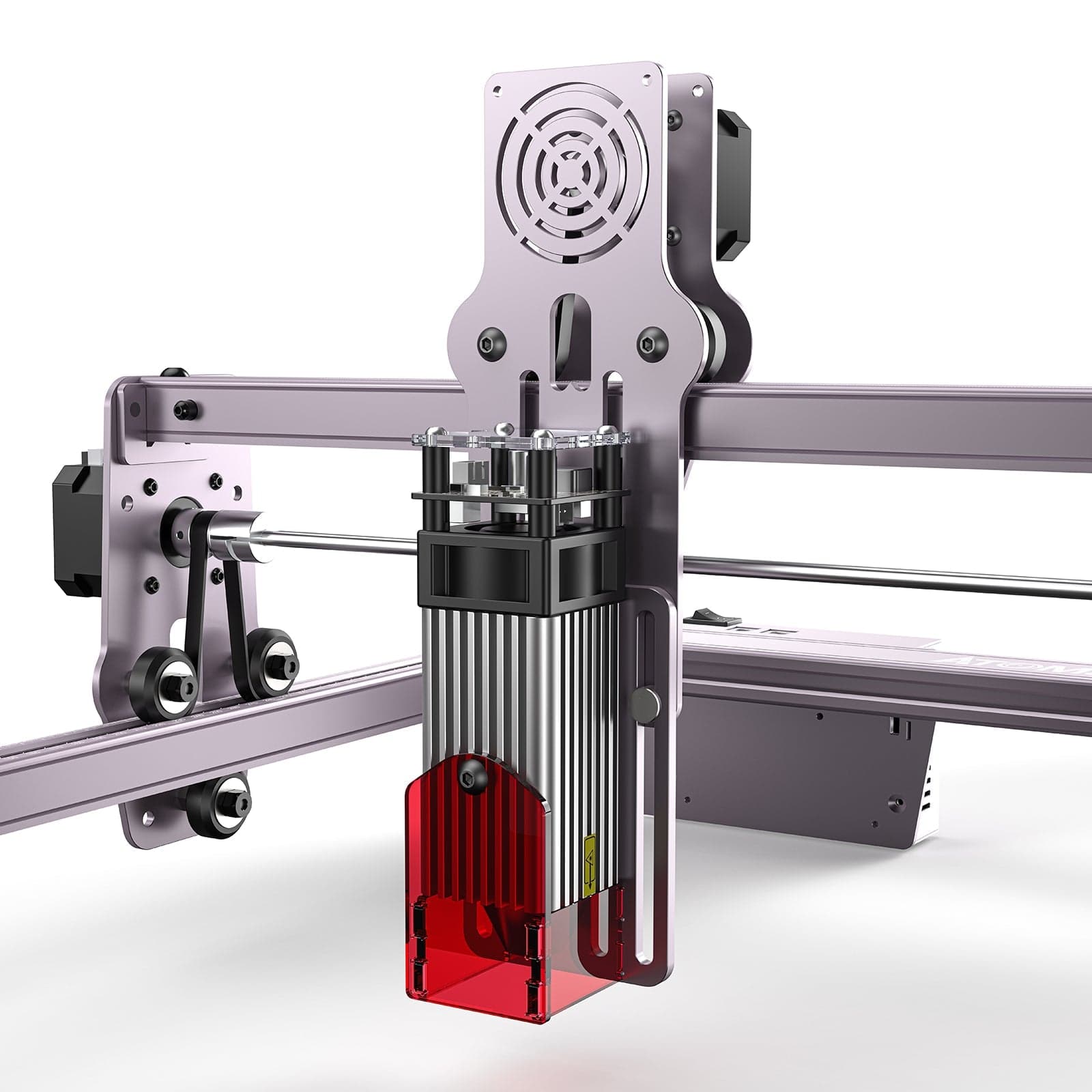

10W module · Atomstack A5 Pro
Laser spot size
~0.09 mm spot
Motion precision: 0.01 mm
Sample engrave job
~18–28 min
10 × 10 cm (4 × 4 in)
Sample cut job
~9–15 min
10 × 10 cm (4 × 4 in)
Reference benchmark: same job size on every machine so you can compare times fairly. Times are estimates for the reference job above; your design complexity and settings will change them.
Materials
- · Wood
- · Leather
- · Slate
- · Anodized aluminum (light)
Accessories & add-ons
Typical inclusions and add-ons for this profile : confirm your SKU.
- Optional
Enclosure / cabinet
Third-party enclosure improves smoke control and safety
- Recommended
Laser safety glasses
~450 nm diode: OD rated for your wavelength
- Recommended
Fire extinguisher
Editorial guidance : not a live parts list. See also: Ventilation setup · Safety basics
Practical notes
Beginner notes
This profile is the 10W SKU on Atomstack A5 Pro. Read the TL;DR and benchmarks above, then compare other power options via the chips before buying.
Pro tips
Run material test grids at engraving speeds first. Add air assist for light cuts. If cut jobs exceed ~30% of your week, open the higher-watt profile on this site and compare times.
Pro / technical specsRaw numbers for experienced users comparing machines.
- Max speed (spec)
- 200 mm/s
- Avg engrave speed
- 9–21 mm/s fill
- Avg cut speed
- 2–3 mm/s on 2–3 mm wood
Common questions
How much faster is the A5 Pro 10W than the 5W?
In our benchmark, a 10 × 10 cm filled photo on birch plywood drops from ~28–43 min to ~18–28 min, and a 10 × 10 cm square in 3 mm basswood from ~14–24 min to ~9–15 min. For most buyers that time saving is worth the ~$50 gap ($249–349 vs $199–299).
Can the A5 Pro 10W cut 5 mm wood?
Basswood up to 5 mm, yes, in several slow passes with air assist; our profile tops out there. Our measured cut speed is 2–3 mm/s on 2–3 mm wood. Plywood with glue layers is harder than basswood, so test before committing to a batch.
Is a used A5 Pro 10W a good first laser?
It can be, at a low price. The A5 Pro is discontinued, so prefer a unit with its original power supply and a working module, and expect no factory warranty. If you can stretch to the 20W tier, cut time drops by roughly a third again.
