4 manufacturer photos · 1 / 4
Atomstack · Diode

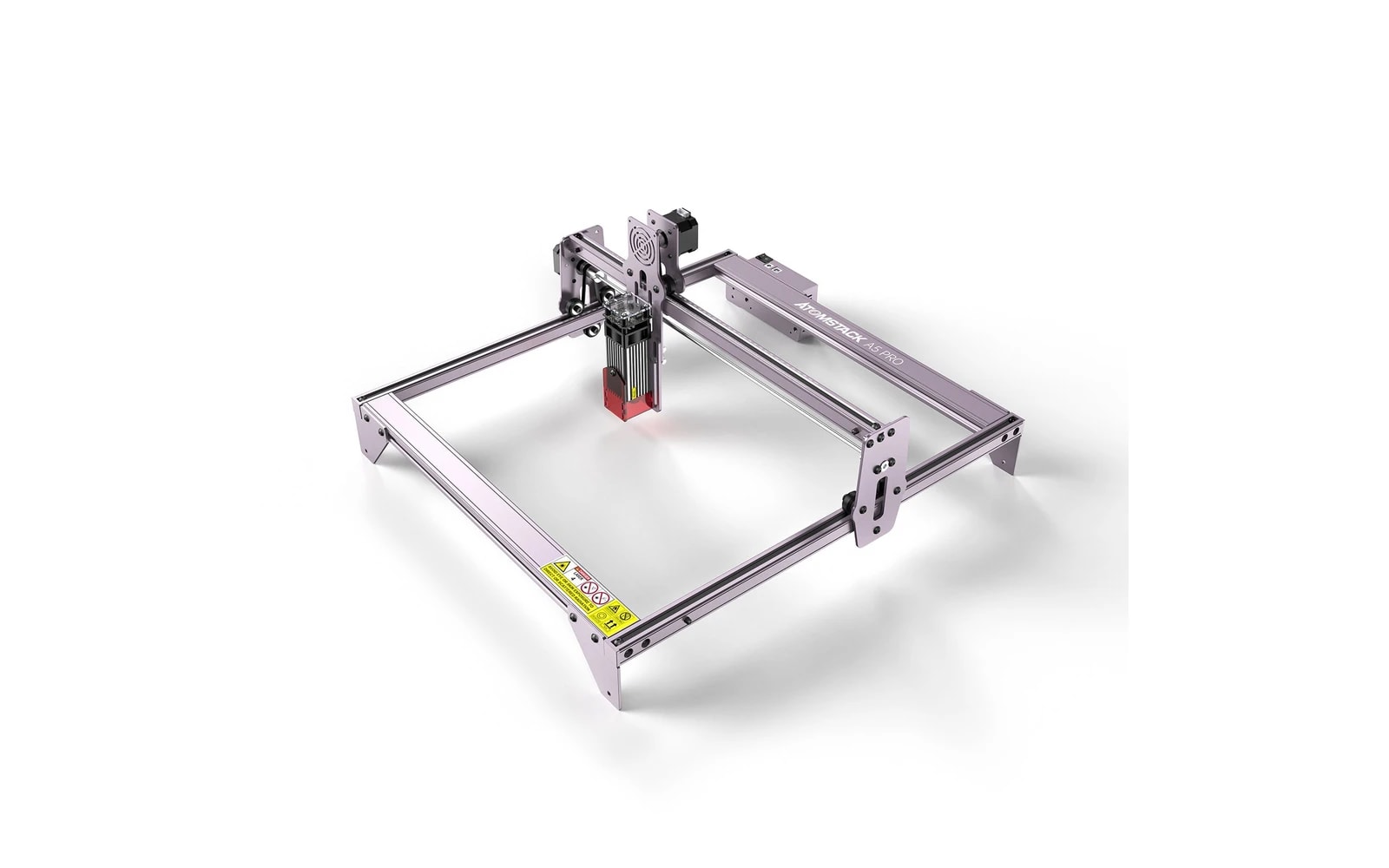

Atomstack A5 Pro · 5W
5W Ultra-budget diode laser: minimum viable entry point
All Atomstack models →Add to compare →
Last updated How we evaluate
Discontinued
Atomstack no longer sells this machine new. We keep the profile online because it still turns up used and as a reference point.
Choose a power option
Details below update for the selected power option.
Showing specs for: 5W
TL;DR
Atomstack A5 Pro 5W is the 5W SKU on the Atomstack atomstack a5 pro line. One of the cheapest ways to try laser engraving. Verify optical power on the listing: do not assume combined-watt marketing.
Best for
What makes this machine stand out
Hardware and workflow features worth understanding before you buy : not just wattage on a label.
Lowest price of the line
$199–299 in our range and less on the used market, for a 410 × 400 mm engraving bed.
A low-risk learning machine
At 5W-class optical power, mistakes cost little: a sensible way to learn LightBurn, focus and material tests before buying bigger.
Our verdict
Ideal if you
Atomstack A5 Pro 5W suits makers who sell marks, photos, and gifts more than daily panel cutting. Reasonable open-frame entry price.
Skip if you
Skip if you already quote 3 mm+ cutting in production: see 10W or 20W in the line. Not for cast acrylic or bare metal without spray.
Pros
- Cheapest way into the A5 Pro frame: $199–299, often less used
- Large 410 × 400 mm bed for a 5W-class machine
- Enough for engraving wood, leather and coated surfaces at hobby pace
Cons
- Atomstack's '40W' label on the A5 Pro is electrical input: its spec lists 5–5.5W optical output
- Cutting tops out around 3 mm basswood; owners report 2 mm plywood at 250 mm/min in one pass and 3 mm needing 2–3 passes
- Very slow fills: ~28–43 min for our 10 × 10 cm photo test
What this machine is for
Detailed engraving on organics and coated metal: occasional thin cuts only
Engraving-first desktop diode for makers who prioritize mark quality over cut speed
Laser spot size
~0.08 mm spot
Motion precision: 0.01 mm
Sample engrave job
~28–43 min
10 × 10 cm (4 × 4 in)
Sample cut job
~14–24 min
10 × 10 cm (4 × 4 in)
Reference benchmark: same job size on every machine so you can compare times fairly. Times are estimates for the reference job above; your design complexity and settings will change them.
Materials
- · Wood
- · Leather
- · Slate
- · Anodized aluminum (light)
Accessories & add-ons
Typical inclusions and add-ons for this profile : confirm your SKU.
- Optional
Enclosure / cabinet
Third-party enclosure improves smoke control and safety
- Recommended
Laser safety glasses
~450 nm diode: OD rated for your wavelength
- Recommended
Fire extinguisher
Editorial guidance : not a live parts list. See also: Ventilation setup · Safety basics
Practical notes
Beginner notes
This profile is the 5W SKU on Atomstack A5 Pro. Read the TL;DR and benchmarks above, then compare other power options via the chips before buying.
Pro tips
Optimize for engraving: lower DPI on photos, higher scan speed on line art after test burns. Air assist still helps clarity. Compare benchmark times on the next tier before assuming you need more power.
Pro / technical specsRaw numbers for experienced users comparing machines.
- Max speed (spec)
- 200 mm/s
- Avg engrave speed
- 2–4 mm/s fill
- Avg cut speed
- 2–3 mm/s on 2–3 mm wood
Common questions
Is the Atomstack A5 Pro 5W really a 40W laser?
No. Atomstack marketed the A5 Pro as '40W', which is electrical input; its own spec gives 5–5.5W of optical output. Compare machines on optical power only: by that measure this is an entry-level engraver, not a cutter.
What can the A5 Pro 5W cut?
Thin material only. A LightBurn forum owner reports 2 mm plywood at 250 mm/min and 100% power in one pass, and expects 3 mm to take 2–3 passes. Our profile caps basswood at 3 mm, and a 10 × 10 cm square in 3 mm basswood takes ~14–24 min in our benchmark.
The A5 Pro is discontinued: should I still buy one?
Only as a cheap used starter or remaining stock, ideally under $200. The A5 Pro is no longer a current Atomstack model, so check the module and power supply before paying. If you plan to cut 3 mm wood regularly, the 10W tier or a current 10W machine is a better first buy.
Alternatives to the Atomstack A5 Pro 5W
Machines in the same space, picked from our database by type, price, and score.
Sculpfun · Diode · $270
Sculpfun S10 10W (2022) is a mid-size open-frame engraver with a sturdier industrial frame than S9, ~385 mm work area, and detachable laser cover. Positioned between budget S9 and S30 families for makers who want better rigidity without Ultra pricing.

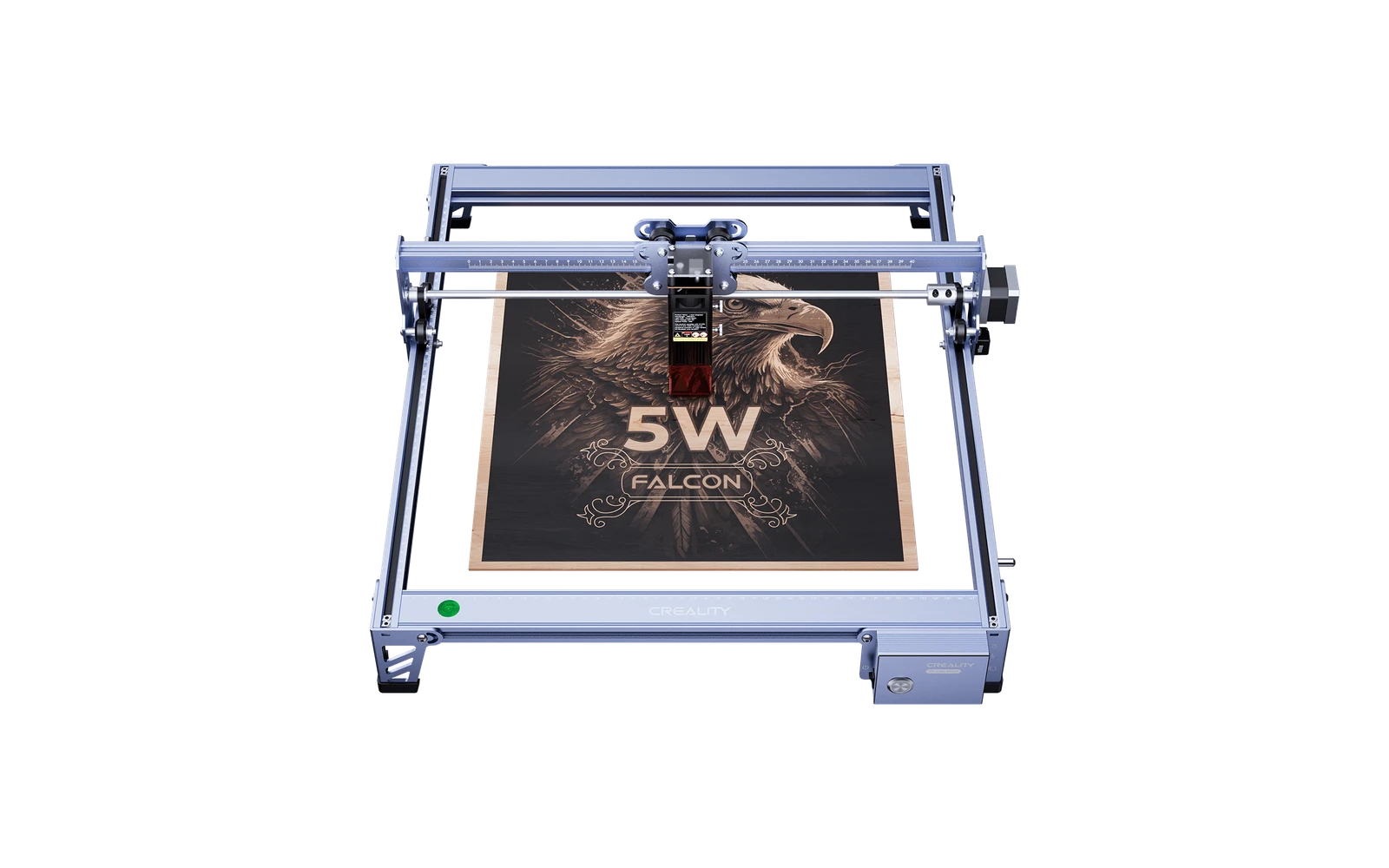

Creality · Diode · $119
Creality Falcon 5W is the 5W version of the CR-Laser Falcon: the same 400 × 415 mm open frame as the Falcon 10W with half the laser power. Fine for engraving and thin crafts at a very low price; cutting is slow.

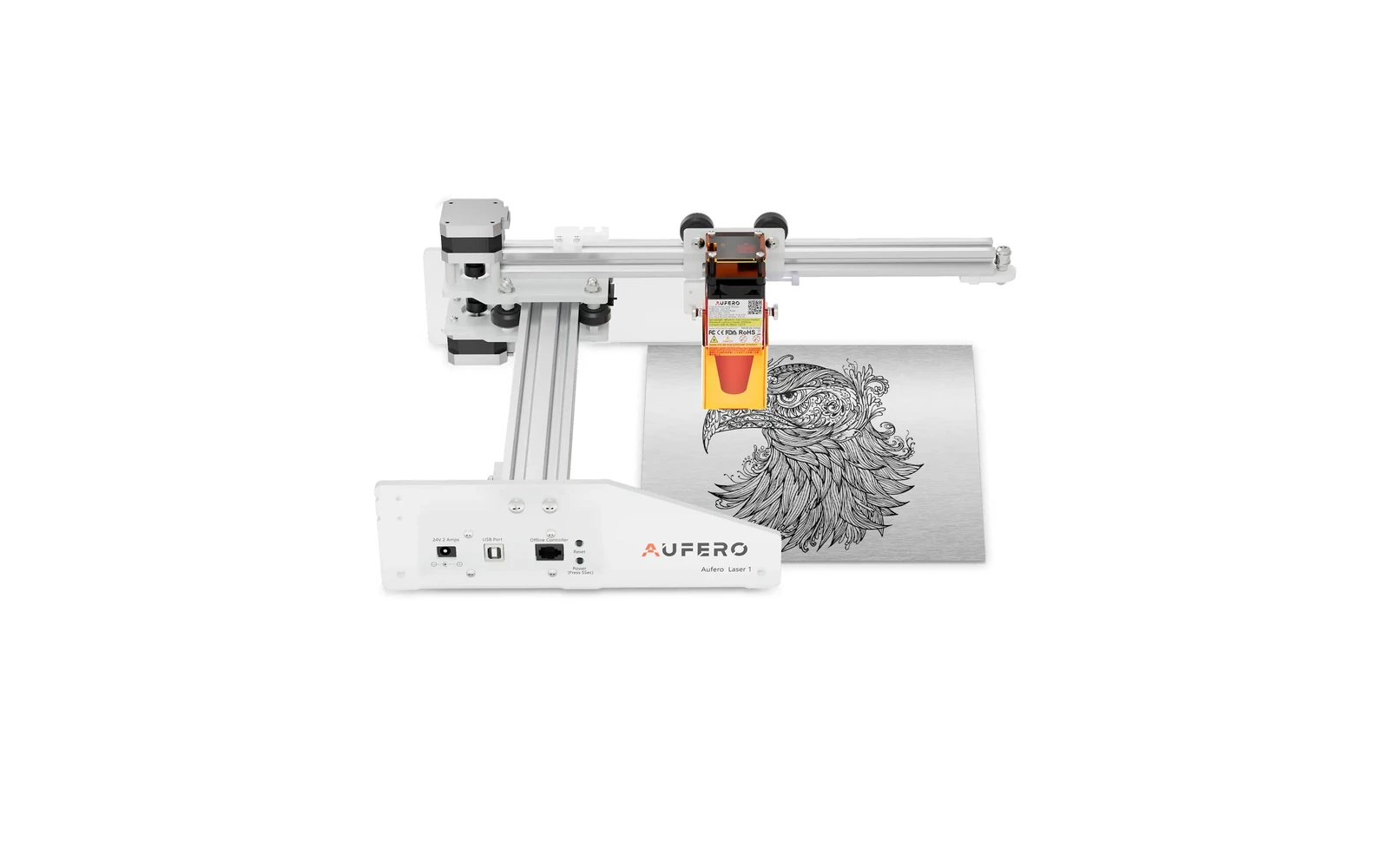

Ortur · Diode · $130 – $210
