Atomstack · Diode

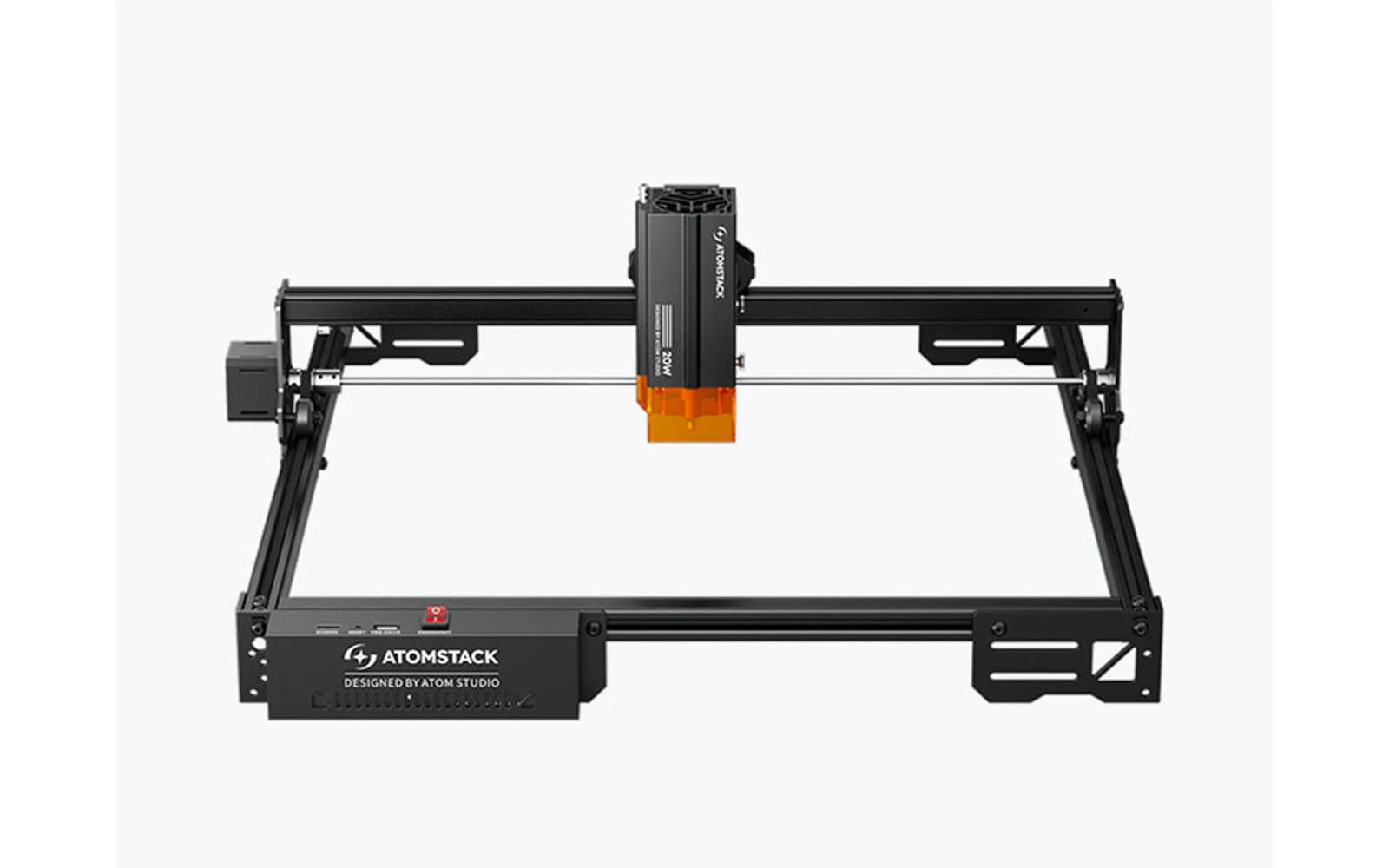

Atomstack A20 Pro
Mid-tier Atomstack with compressed beam: sweet spot between A5 and A40
All Atomstack models →Add to compare →
Last updated How we evaluate
Discontinued
Atomstack no longer sells this machine new. We keep the profile online because it still turns up used and as a reference point.
TL;DR
The A20 Pro sits in Atomstack's lineup between budget A5 and flagship A40. Strong engraving detail with a more rigid frame than entry models. A sensible upgrade path if A5 feels slow but A40 is over budget.
Compare the Atomstack A20 Pro to…
Popular side-by-side matchups with full specs, scores, and an honest verdict.
Best for
What makes this machine stand out
Hardware and workflow features worth understanding before you buy : not just wattage on a label.
Open-frame : plan safety first
There is no factory enclosure: you wear OD-rated glasses, control smoke, and keep kids/pets away. You trade cabinet convenience for price and access : fine in a dedicated workshop, stressful in a living room without a plan.
LightBurn compatible
LightBurn support means advanced layers, camera tools, and workflows many makers outgrow the stock app with. Confirm your exact controller board before assuming full features : some machines need a paid license separately.
Our verdict
Ideal if you
Atomstack A20 Pro 20W is the versatile hobby / side-business SKU: clean engraving and light wood or leather cuts with comparable benchmarks on Maker Atlas.
Skip if you
Open-frame: glasses and exhaust required. Not a CO₂ replacement for clear acrylic or heavy thick-stock production.
Pros
- Everyday engrave and light cut mix: typical 6 mm basswood in several passes
- Open-frame: plan laser glasses, exhaust, and workspace rules from day one
- Software on the profile: trial your workflow on scrap before production
Cons
- Clear cast acrylic and thick production cutting still favor CO₂, not diode power alone
- Confirm optical wattage on the listing before you buy
What this machine is for
Mid-range Atomstack for detailed engraving & reliable thin-wood cutting
Mid-tier open-frame Atomstack for detailed engraving and moderate thin-wood cutting.
Laser spot size
~0.08 mm compressed spot
Motion precision: 0.01 mm
Sample engrave job
~10–14 min
10 × 10 cm (4 × 4 in)
Sample cut job
~5–8 min
10 × 10 cm (4 × 4 in)
Reference benchmark: same job size on every machine so you can compare times fairly. Times are estimates for the reference job above; your design complexity and settings will change them.
Materials
- · Wood
- · Leather
- · Slate
- · Anodized aluminum
Accessories & add-ons
Typical inclusions and add-ons for this profile : confirm your SKU.
- Optional
Enclosure / cabinet
Third-party enclosure improves smoke control and safety
- Recommended
Laser safety glasses
~450 nm diode: OD rated for your wavelength
- Recommended
Fire extinguisher
Editorial guidance : not a live parts list. See also: Ventilation setup · Safety basics
Practical notes
Beginner notes
This profile is the 20W SKU on Atomstack A20 Pro. Read the TL;DR and benchmarks above, then compare other power options via the chips before buying.
Pro tips
Atomstack's F60 air assist kit is worth adding before pushing cut depth: charring drops significantly on 5–6 mm basswood.
Pro / technical specsRaw numbers for experienced users comparing machines.
- Max speed (spec)
- 300 mm/s
- Avg engrave speed
- 75–160 mm/s fill
- Avg cut speed
- 4–11 mm/s on 3–6 mm wood
