4 manufacturer photos · 1 / 4
Gweike · Fiber

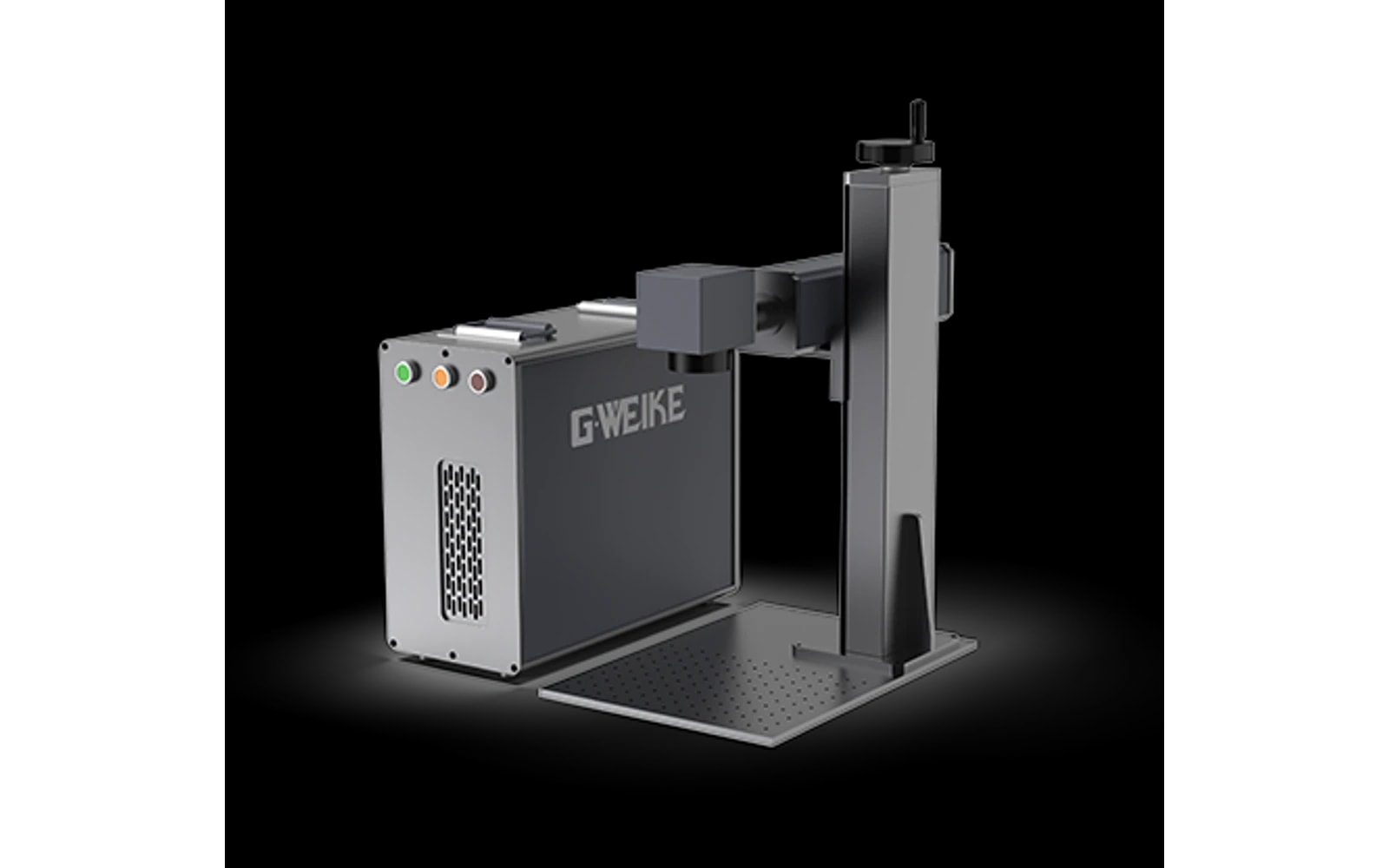

Gweike G6 Split · 100W
100W Split cabinet fiber marker with room for rotary and fixtures
All Gweike models →Add to compare →
Last updated How we evaluate
Choose a power option
Details below update for the selected power option.
Showing specs for: 100W
TL;DR
Gweike G6 Split 100W is the 100W SKU on the Gweike gweike g6 split line. Gweike G6 Split is a larger fiber marking platform with separate laser source cabinet: common format for small production. Verify optical power on the listing: do not assume combined-watt marketing.
Best for
What makes this machine stand out
Hardware and workflow features worth understanding before you buy : not just wattage on a label.
Highest throughput in the G6 Split range
About 2–5 minutes for a filled 10 × 10 cm logo on stainless in our benchmark, and the most headroom for multi-pass cut-outs and embossing on tools and plates.
Power for large-field lenses
A 300 × 300 mm lens spreads energy over a larger spot. With 100W, deep engraving stays workable on large plates where the lower tiers slow down sharply.
Our verdict
Ideal if you
Gweike G6 Split 100W fits shops that mark stainless, aluminum, and tools daily without a CO₂ bay. A solid bench option for jewelry, tags, and small batches.
Skip if you
Skip if wood, leather, or cast acrylic pay your bills. Deep metal cutting and large industrial panels often need more fiber headroom or a different machine class.
Pros
- Fastest G6 Split in our benchmark: about 2–5 min for a filled 10 × 10 cm logo on stainless
- Enough power to keep deep work practical on the 300 × 300 mm lens
- $300–400 less than the G6 Split MOPA 100W
Cons
- $6,299 to $6,699: over $1,000 more than the 70W for a modest gain on surface marking
- No MOPA pulse control: no colour marking despite the top power
- Deep, high-power jobs produce a lot of fumes and spatter: extraction is not optional
What this machine is for
Maximum fiber marking speed and depth in the line
High-power fiber for metal-focused shops needing line-top throughput
Laser spot size
~0.02 mm spot
Motion precision: 0.01 mm
Sample engrave job
~2–5 min
10 × 10 cm (4 × 4 in)
Sample cut job
Not a cutter
Reference benchmark: same job size on every machine so you can compare times fairly. Times are estimates for the reference job above; your design complexity and settings will change them.
Materials
- · Stainless steel
- · Aluminum
- · Brass
- · Plastics
- · Deep metal engraving
Accessories & add-ons
Typical inclusions and add-ons for this profile : confirm your SKU.
- Optional
Enclosure / cabinet
Third-party enclosure improves smoke control and safety
- Recommended
Laser safety glasses
~450 nm diode: OD rated for your wavelength
- Recommended
Fire extinguisher
Editorial guidance : not a live parts list. See also: Ventilation setup · Safety basics
Practical notes
Beginner notes
This profile is the 100W SKU on Gweike G6 Split. Read the TL;DR and benchmarks above, then compare other power options via the chips before buying.
Pro tips
Push speed only after depth tests on your metal alloy. Cooling and lens cleanliness matter more at this power level.
Pro / technical specsRaw numbers for experienced users comparing machines.
- Max speed (spec)
- 7,000 mm/s
- Avg engrave speed
- 500–2,000 mm/s marking
- Avg cut speed
- N/A
Common questions
What is the G6 Split 100W best used for?
Production deep engraving and cut-outs on metal: embossed logos, deep serial numbers on tools, coins and thin-sheet parts. In our benchmark a filled 10 × 10 cm logo on stainless takes about 2–5 minutes, the quickest of the G6 Split range. For light surface marking the extra power changes little.
How much does the G6 Split 100W cost, and with which options?
On Gweike's US store in October 2026: $6,299 with manual lift, $6,399 with electric lift and $6,699 with electric lift and autofocus. The colour-capable G6 Split MOPA 100W costs $6,599–7,099 in the same three configurations.
Standard 100W or G6 Split MOPA 100W?
The standard 100W uses a Raycus Q-switched source with fixed pulses: good value for depth and black marking. The MOPA version, $300–400 more, adds adjustable pulse width for colour on stainless and cleaner marks on plastics and anodized aluminum. If colour work is not part of what you sell, the standard model is the cheaper route to 100W.
