Longer · Diode
Longer Laser B1 · 20W
20W Longer's large-format diode: bigger bed than Ray5 for sign-sized projects
All Longer models →Add to compare →
Last updated How we evaluate
Released February 2023
Choose a power option
Details below update for the selected power option.
Showing specs for: 20W
TL;DR
Longer Laser B1 20W is the 20W SKU on the Longer longer laser b1 line. Longer's large-format B1 20W diode: this profile is the 20W SKU only; Longer also sells 30W and 40W B1 machines separately. Verify optical power on the listing: do not assume combined-watt marketing.
Best for
What makes this machine stand out
Hardware and workflow features worth understanding before you buy : not just wattage on a label.

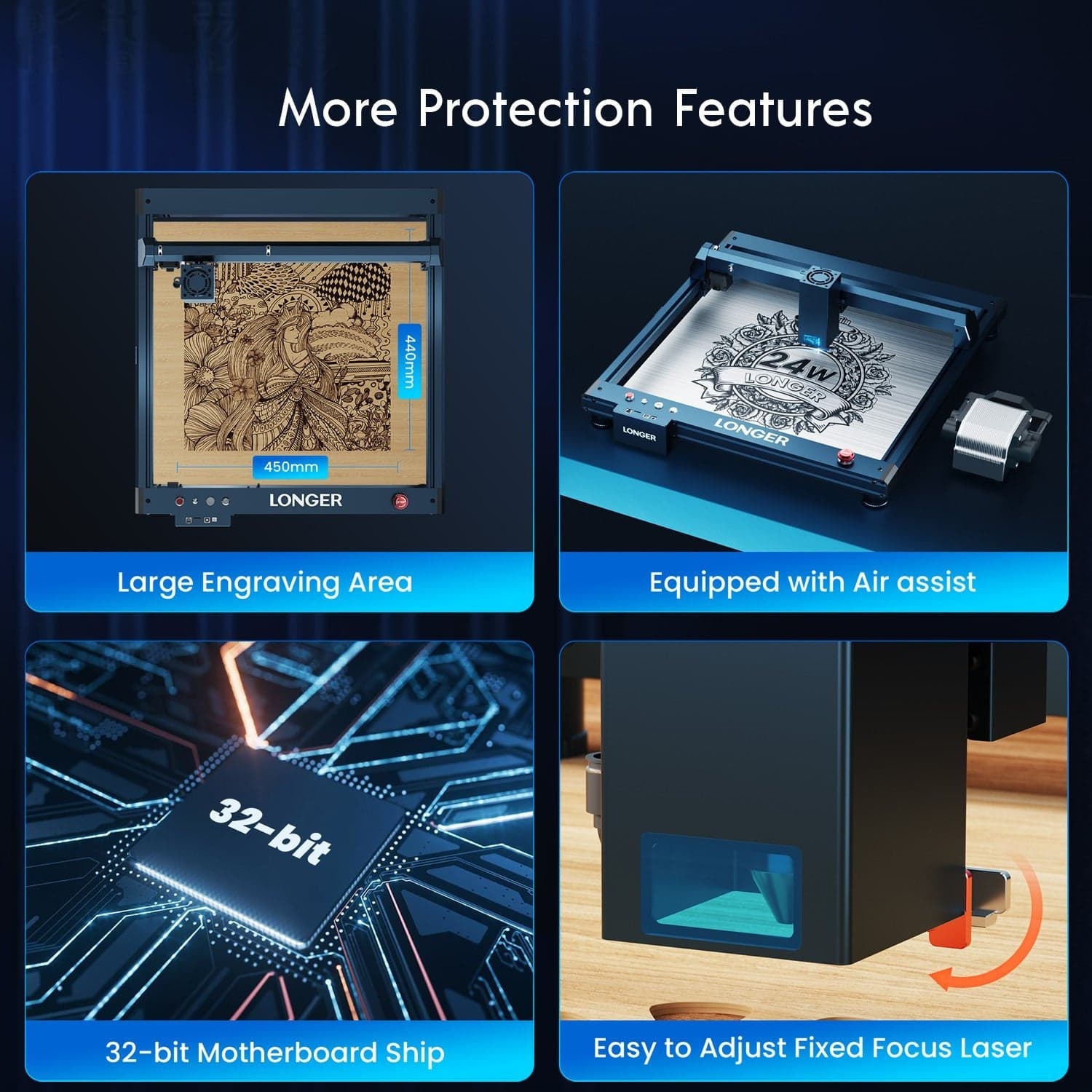

Large bed at entry price
450 × 440 mm working area from $479.99, extendable with Longer's $109.99 extension kit.
Detail-friendly spot
0.08 × 0.1 mm according to Longer, the finer of the two spot sizes in the B1 range.
IR module bundle
Longer sells a Basic set with IR module ($799.99) for engraving jewellery and metal.
Our verdict
Ideal if you
Longer Laser B1 20W is the versatile hobby / side-business SKU: clean engraving and light wood or leather cuts with comparable benchmarks on Maker Atlas.
Skip if you
Open-frame: glasses and exhaust required. Upgrade path to 30W or 40W if cutting takes over. Not a CO₂ replacement for clear acrylic or heavy thick-stock production.
Pros
- Cheapest way into the 450 × 440 mm B1 frame: $479.99 basic set (Longer store, October 2026)
- Fine 0.08 × 0.1 mm spot, per Longer's spec sheet
- Extension kit and touch screen available as add-ons
Cons
- Slow fills in our tests: ~14–32 mm/s, so a 10 × 10 cm photo takes ~18–28 min
- Our cut benchmark is far below Longer's 15 mm one-pass claim
- Touch screen and extension kit cost extra on the basic set
What this machine is for
Everyday engraving plus reliable light cutting on wood, leather, and dark acrylic
20W module · Longer Laser B1
Laser spot size
~0.07 mm spot
Motion precision: 0.01 mm
Sample engrave job
~18–28 min
10 × 10 cm (4 × 4 in)
Sample cut job
~9–15 min
10 × 10 cm (4 × 4 in)
Reference benchmark: same job size on every machine so you can compare times fairly. Times are estimates for the reference job above; your design complexity and settings will change them.
Materials
- · Wood
- · Leather
- · Slate
- · Anodized aluminum
Accessories & add-ons
Typical inclusions and add-ons for this profile : confirm your SKU.
- Optional
Enclosure / cabinet
Third-party enclosure improves smoke control and safety
- Recommended
Laser safety glasses
~450 nm diode: OD rated for your wavelength
- Recommended
Fire extinguisher
Editorial guidance : not a live parts list. See also: Ventilation setup · Safety basics
Practical notes
Beginner notes
This profile is the 20W SKU on Longer Laser B1. Read the TL;DR and benchmarks above, then compare other power options via the chips before buying.
Pro tips
Use air assist for cuts, lower scan speed for photo engraving. Multiple passes at moderate speed beat one aggressive pass. Check the flagship tier’s cut benchmark if you quote production times to customers.
Pro / technical specsRaw numbers for experienced users comparing machines.
- Max speed (spec)
- 400 mm/s
- Avg engrave speed
- 14–32 mm/s fill
- Avg cut speed
- 2–3 mm/s on 3–8 mm wood
Common questions
How thick does the B1 20W really cut?
Longer's spec sheet claims 15 mm basswood in one pass and 35 mm acrylic maximum. In our benchmarks a 10 × 10 cm square in 3 mm basswood takes about 9–15 min at 2–3 mm/s, so treat 8 mm basswood and 5 mm dark acrylic as practical limits in passes; 15 mm needs ideal settings and air assist.
Which B1 20W set should I buy?
On Longer's store in October 2026: Basic set $479.99, Pro set $649.99, Pro Max set $869.99, and Basic set plus IR module $799.99 for jewellery and metal marking. An extension kit ($109.99) and a touch screen ($39.99) are sold separately.
B1 20W or B1 30W?
Both share the 0.08 × 0.1 mm spot and the 450 × 440 mm area. The 30W basic set cost $90 more ($569.99), is rated for 20 mm basswood in one pass instead of 15 mm, and fills at ~39–88 mm/s in our tests against ~14–32 mm/s. If you engrave most of the time, the 20W is enough.
Alternatives to the Longer Laser B1 20W
Machines in the same space, picked from our database by type, price, and score.
Sculpfun · Diode · $690
The 22W is the middle of Sculpfun's three S30 Ultra heads (11W, 22W, 33W), often sold bundled with LightBurn. The 33W head goes further for thick cuts. Listings that say S30 Ultra 10W or 20W are reseller labels.
xTool · Diode · $499 – $1,229
Launched May 2026, the M2 packs laser engraving, cutting, and integrated inkjet color printing into one enclosed desktop at $599. Built for everyday crafters and Etsy sellers who want color + laser without a pro CO₂ budget: not a metal-marking or production cutter.
Atomstack · Diode · $459 – $1,119
AtomStack A24 Pro is a 24W diode engraver and cutter (four 6W diodes) built on a unibody frame you set up in minutes. The 360 × 280 mm bed is small for this power class, but the optional conveyor stretches it to 360 × 800 mm. Diode only: for metal marking, Atomstack sells a separate A24 Pro 1064nm fiber version.
