Longer · Diode
Longer Ray5 · 10W
10W Compact fixed-focus diode: simple desk engraver for small projects
All Longer models →Add to compare →
Last updated How we evaluate
Released August 2022
Choose a power option
Details below update for the selected power option.
Showing specs for: 10W
TL;DR
Longer Ray5 10W is the 10W SKU on the Longer longer ray5 line. Longer's compact Ray5 20W diode engraver: verify you are buying the 20W SKU, not the 5W, 10W, or 40W Ray5 listings. Verify optical power on the listing: do not assume combined-watt marketing.
Best for
What makes this machine stand out
Hardware and workflow features worth understanding before you buy : not just wattage on a label.
0.06 mm spot
Longer's finest Ray5 spot, good for small lettering, portraits and detailed line work.
Cutting kit option
Longer's $299.99 cutting kit adds air assist and a honeycomb bed, the two upgrades that matter most for cuts.
Our verdict
Ideal if you
Longer Ray5 10W suits makers who sell marks, photos, and gifts more than daily panel cutting. Reasonable open-frame entry price.
Skip if you
Skip if you already quote 5 mm+ cutting in production: see 20W or 40W in the line. Not for cast acrylic or bare metal without spray.
Pros
- Finest spot of the Ray5 range: 0.06 × 0.06 mm according to Longer

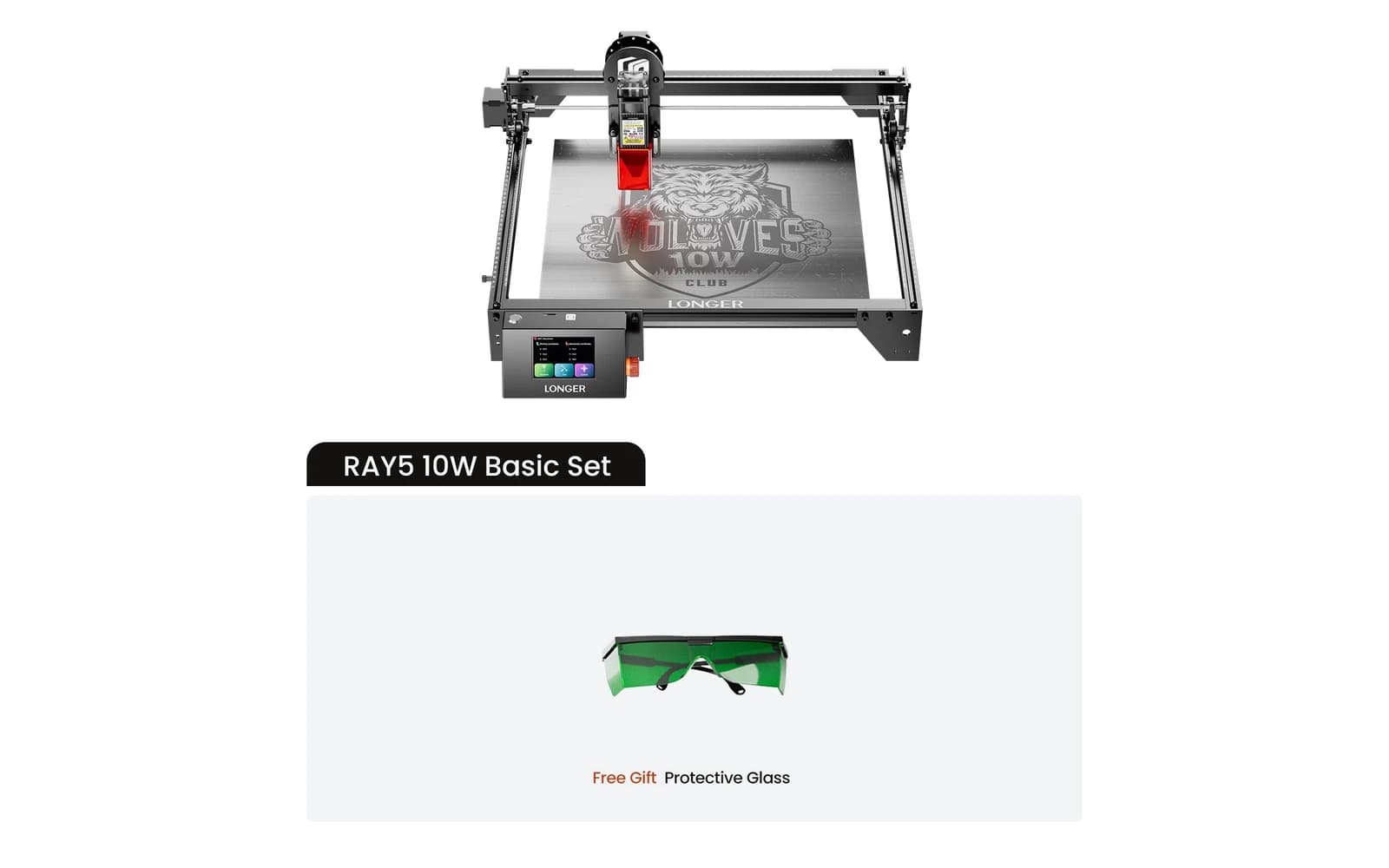

- Basic set at $239.99 on Longer's store (October 2026)

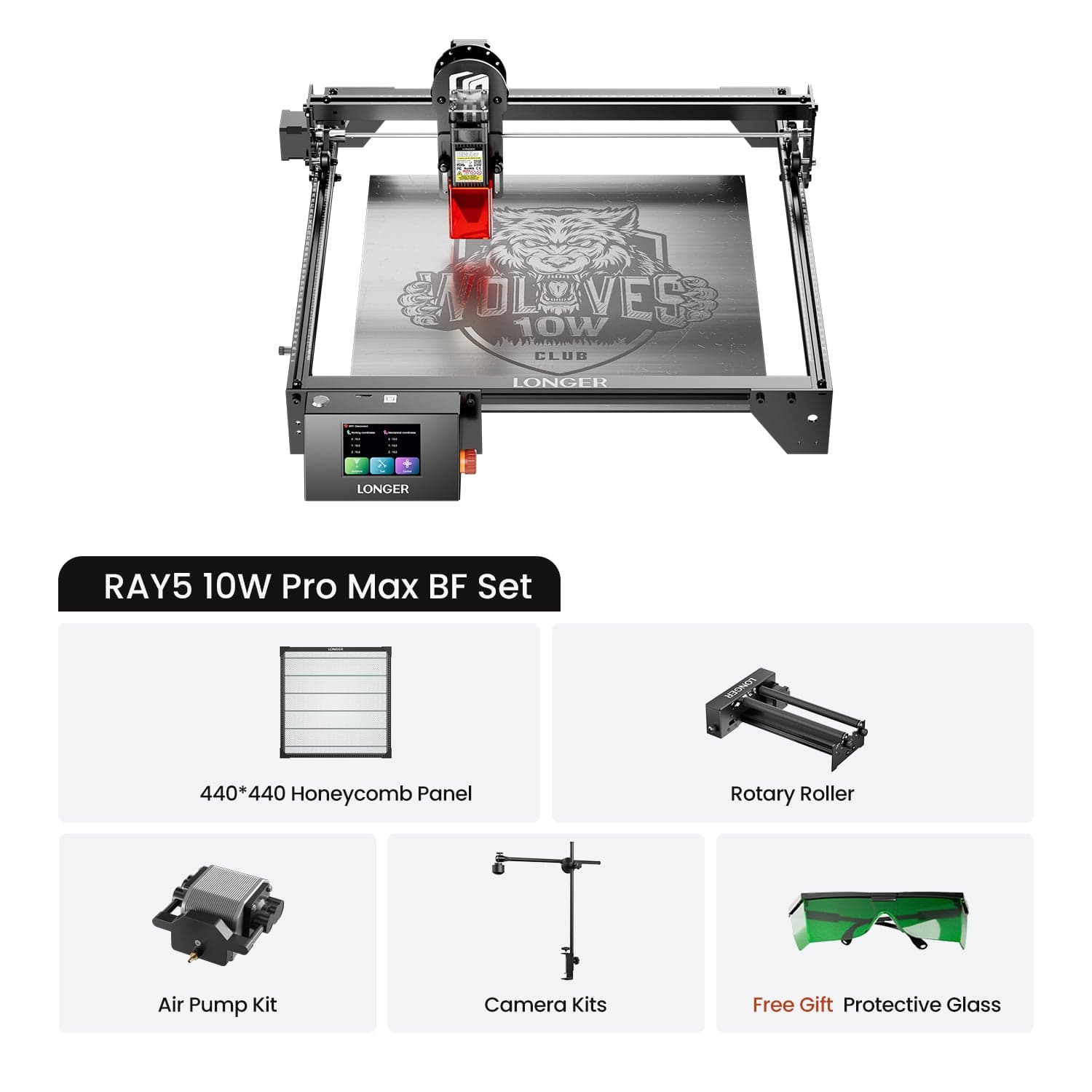

- Full 400 × 400 mm area per Longer, with kits that add air assist or rotary
Cons
- Slow fills of ~5–10 mm/s in our benchmarks: a 10 × 10 cm photo takes ~28–43 min
- A 3 mm basswood square takes ~14–24 min to cut
- Longer's 8 mm one-pass rating is far above what our cut benchmark suggests
What this machine is for
High-quality hobby and light-business engraving with light, slow cutting
10W module · Longer Ray5
Laser spot size
~0.08 mm spot
Motion precision: 0.01 mm
Sample engrave job
~28–43 min
10 × 10 cm (4 × 4 in)
Sample cut job
~14–24 min
10 × 10 cm (4 × 4 in)
Reference benchmark: same job size on every machine so you can compare times fairly. Times are estimates for the reference job above; your design complexity and settings will change them.
Materials
- · Wood
- · Leather
- · Slate
- · Anodized aluminum
Accessories & add-ons
Typical inclusions and add-ons for this profile : confirm your SKU.
- Optional
Enclosure / cabinet
Third-party enclosure improves smoke control and safety
- Recommended
Laser safety glasses
~450 nm diode: OD rated for your wavelength
- Recommended
Fire extinguisher
Editorial guidance : not a live parts list. See also: Ventilation setup · Safety basics
Practical notes
Beginner notes
This profile is the 10W SKU on Longer Ray5. Read the TL;DR and benchmarks above, then compare other power options via the chips before buying.
Pro tips
Run material test grids at engraving speeds first. Add air assist for light cuts. If cut jobs exceed ~30% of your week, open the higher-watt profile on this site and compare times.
Pro / technical specsRaw numbers for experienced users comparing machines.
- Max speed (spec)
- 200 mm/s
- Avg engrave speed
- 5–10 mm/s fill
- Avg cut speed
- 2–3 mm/s on 2–4 mm wood
Common questions
Why does the 10W have the finest spot of the Ray5 range?
Longer quotes a 0.06 × 0.06 mm spot for the 10W module, against 0.08 × 0.08 mm for the 5W and 0.08 × 0.10 mm for the 20W. That makes it the Ray5 to pick for small text and photo detail, even if its fills are slow: about 5–10 mm/s in our benchmarks.
How thick can the Ray5 10W cut?
Longer rates it for 8 mm basswood in one pass. In our benchmarks a 10 × 10 cm square in 3 mm basswood takes about 14–24 min at 2–3 mm/s, so plan around 5 mm as the realistic limit in passes. Air assist (in Longer's cutting kit) helps a lot.
Ray5 10W or 20W?
On Longer's store in October 2026 the basic sets were $239.99 (10W) and $399.99 (20W). The 20W is rated for 15 mm basswood in one pass and cuts our 3 mm square in about 9–15 min, but its spot is wider and Longer lists a slightly smaller 400 × 365 mm area. Detail-first engravers keep the 10W; cutters pay the $160.
