Ortur · Diode

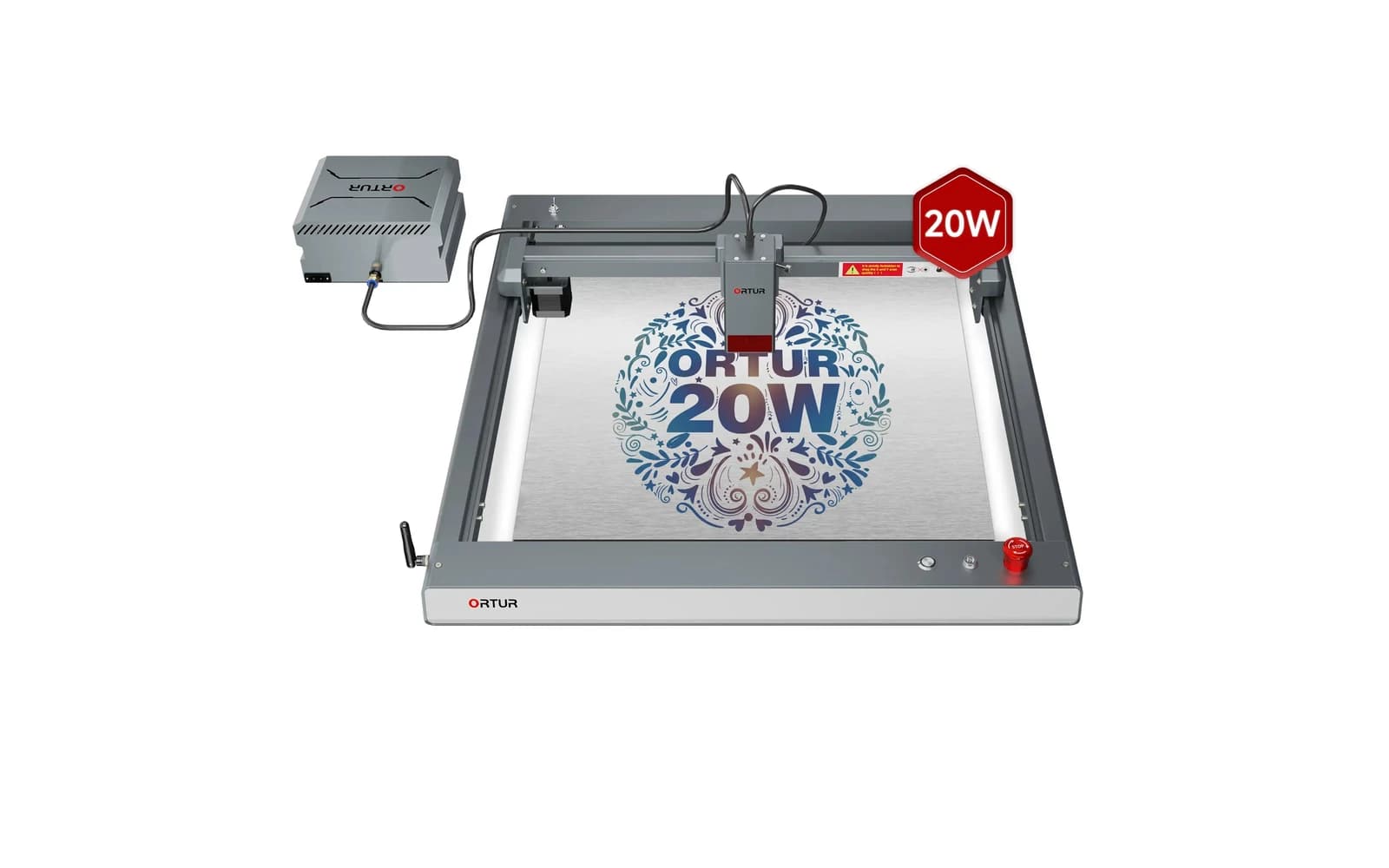

Ortur Laser Master 3 · 20W
Community-favorite open-frame diode: best LM3 value
All Ortur models →Add to compare →
Last updated How we evaluate
Released August 2022
Choose a power option
Details below update for the selected power option.
Showing specs for: 20W
TL;DR
The 20W LM3 is the configuration most buyers mean when they say 'Laser Master 3'. Strong engraving, light cutting, huge community: verify you are not accidentally ordering the 10W SKU.
Compare the Ortur Laser Master 3 20W to…
Popular side-by-side matchups with full specs, scores, and an honest verdict.
Best for
What makes this machine stand out
Hardware and workflow features worth understanding before you buy : not just wattage on a label.

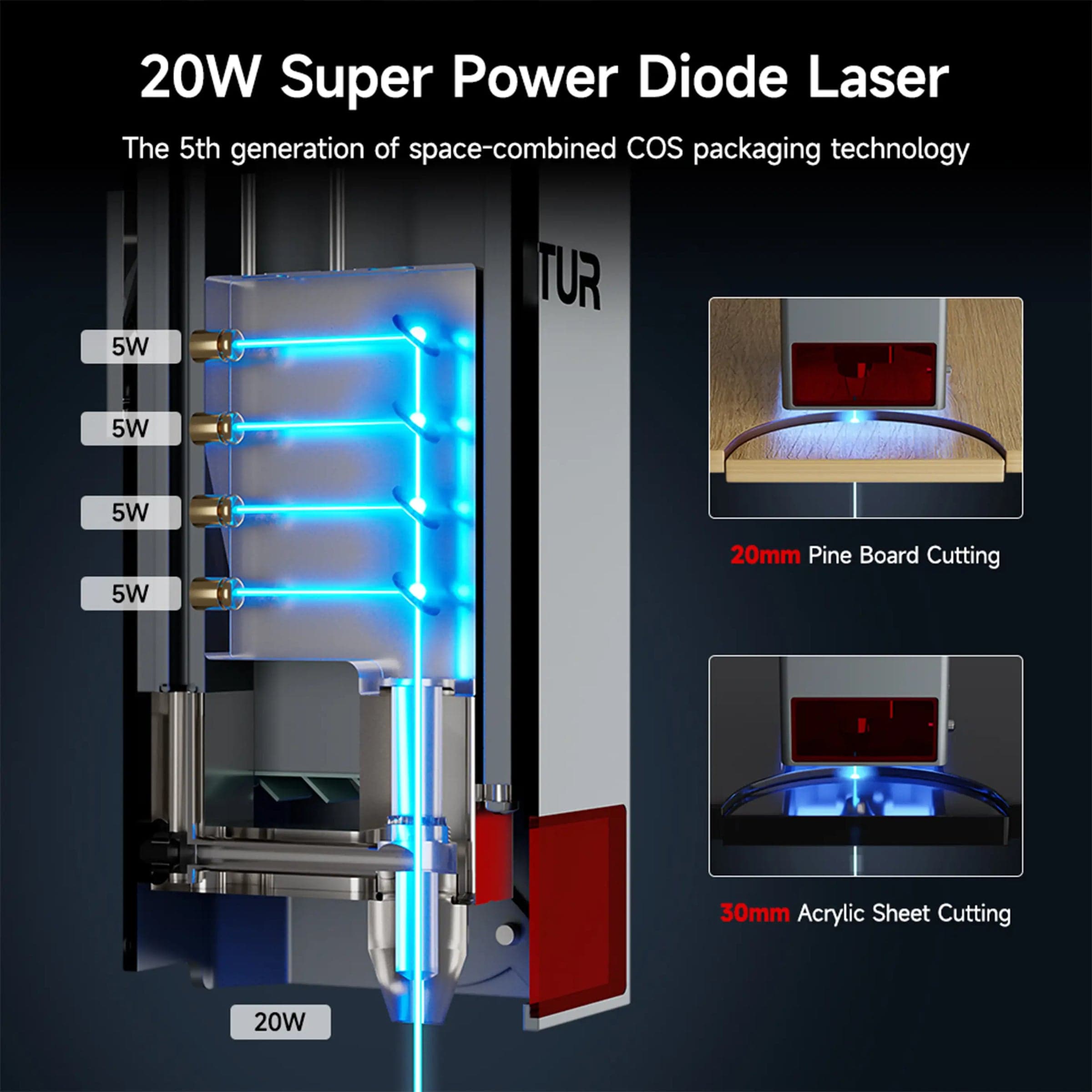

One-pass cutting demos
Ortur demonstrates 10 mm plywood and 8 mm black acrylic in a single pass with this module.
Air pump included
The basic set ships with Ortur's Air Pump 1.0, which the company says cuts burn marks by about half.
Square spot for photos
A 0.08 × 0.08 mm square spot that Ortur rates for 256 grey levels on photo engravings.
Our verdict
Ideal if you
Ortur Laser Master 3 20W is the versatile hobby / side-business SKU: clean engraving and light wood or leather cuts with comparable benchmarks on Maker Atlas.
Skip if you
Open-frame: glasses and exhaust required. Not a CO₂ replacement for clear acrylic or heavy thick-stock production.
Pros
- Free Air Pump 1.0 in Ortur's basic set (October 2026)
- Square 0.08 × 0.08 mm spot, which Ortur says gives 256 grey levels
- Fills at ~70–150 mm/s: a 10 × 10 cm photo in ~10–15 min
Cons

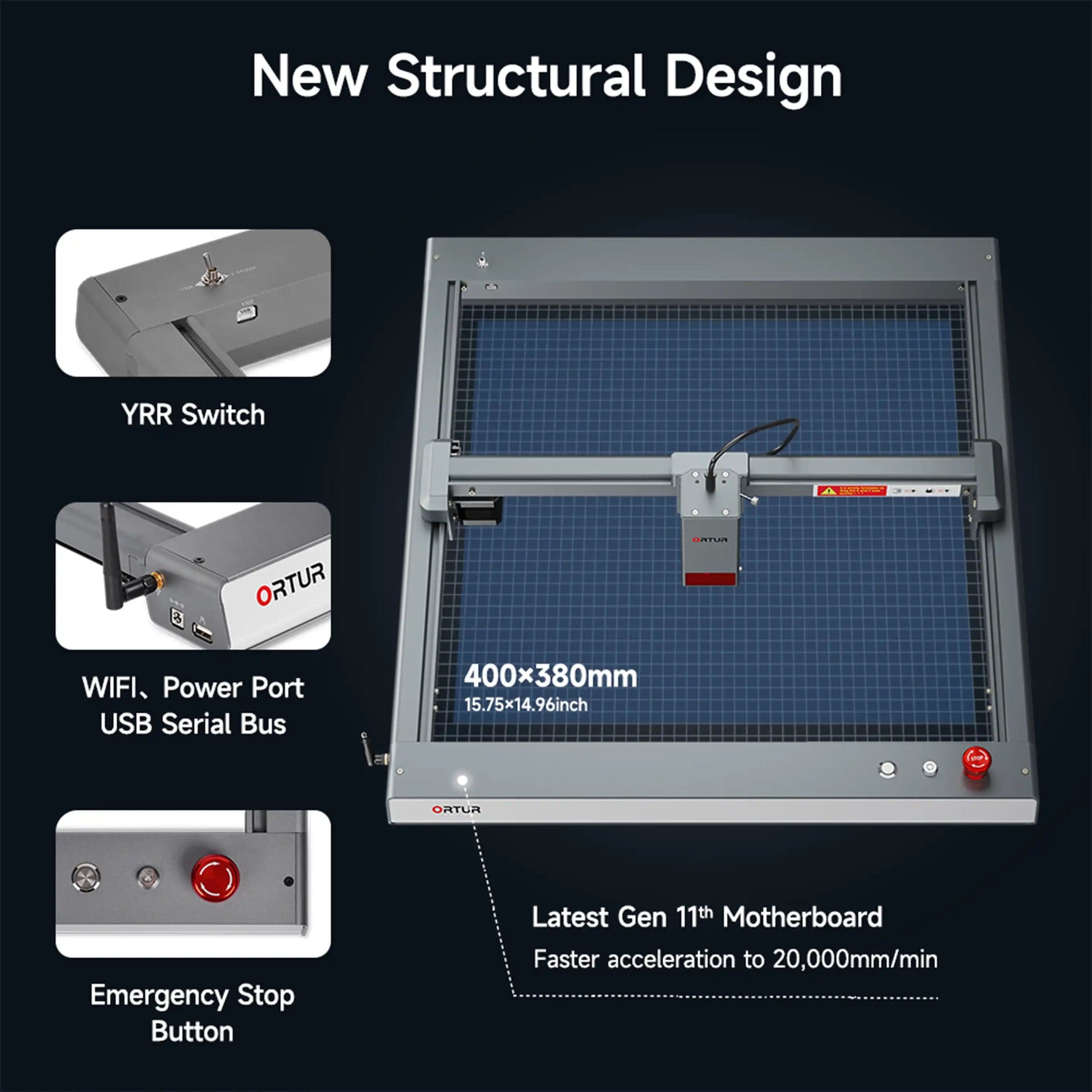

- Working area shrinks to 400 × 380 mm (400 × 355 mm with the Z-height adjuster)
- $639.99 basic set: more than double the entry LM3
- Long cutting runs fill the room with smoke unless the exhaust is ducted outside
What this machine is for
Everyday engraving plus reliable light cutting on wood, leather, and dark acrylic
20W module · Ortur Laser Master 3
Laser spot size
~0.10 mm spot
Motion precision: 0.01 mm
Sample engrave job
~10–15 min
10 × 10 cm (4 × 4 in)
Sample cut job
~5–8 min
10 × 10 cm (4 × 4 in)
Reference benchmark: same job size on every machine so you can compare times fairly. Times are estimates for the reference job above; your design complexity and settings will change them.
Materials
- · Wood
- · Leather
- · Slate
- · Anodized aluminum
- · Stainless (with spray)
Accessories & add-ons
Typical inclusions and add-ons for this profile : confirm your SKU.
- Optional
Enclosure / cabinet
Third-party enclosure improves smoke control and safety
- Recommended
Laser safety glasses
450 nm diode: verify OD with seller
- Recommended
Fire extinguisher
Editorial guidance : not a live parts list. See also: Ventilation setup · Safety basics
Practical notes
Beginner notes
This profile is the 20W SKU on Ortur Laser Master 3. Read the TL;DR and benchmarks above, then compare other power options via the chips before buying.
Pro tips
Use air assist for cuts, lower scan speed for photo engraving. Multiple passes at moderate speed beat one aggressive pass. Check the flagship tier’s cut benchmark if you quote production times to customers.
Pro / technical specsRaw numbers for experienced users comparing machines.
- Max speed (spec)
- 333 mm/s
- Avg engrave speed
- 70–150 mm/s fill
- Avg cut speed
- 3–10 mm/s on 3 mm wood
Common questions
What does Ortur claim the LM3 20W cuts in one pass?
Ortur's page shows one-pass demo cuts in 15 mm pine, 10 mm plywood and 8 mm black acrylic. Those are demos, not guaranteed maxima. In our benchmarks a 10 × 10 cm square in 3 mm basswood takes about 5–8 min at 3–10 mm/s, and around 8 mm basswood is a realistic everyday limit.
Which LM3 20W set should I buy?
In October 2026 Ortur listed the 20W Basic set at $639.99 (with a free Air Pump 1.0), the Pro set at $719.98, the Rotary set at $839.97, the Extended set at $929.96 and the All-in-1 set at $1,399.99. The Extended set raises the working length to about 850 mm according to Ortur.
Is the 20W worth twice the price of the LM3 10W?
If you cut, yes: for about $340 more it cuts our 3 mm square in about a third less time (5–8 min against 8–12 min) and fills at ~70–150 mm/s instead of 20–42 mm/s. Ortur also advertises colour marking on stainless steel with this module. For engraving-only work on wood and leather, the 10W is enough.
