4 manufacturer photos · 1 / 4
Sculpfun · Diode

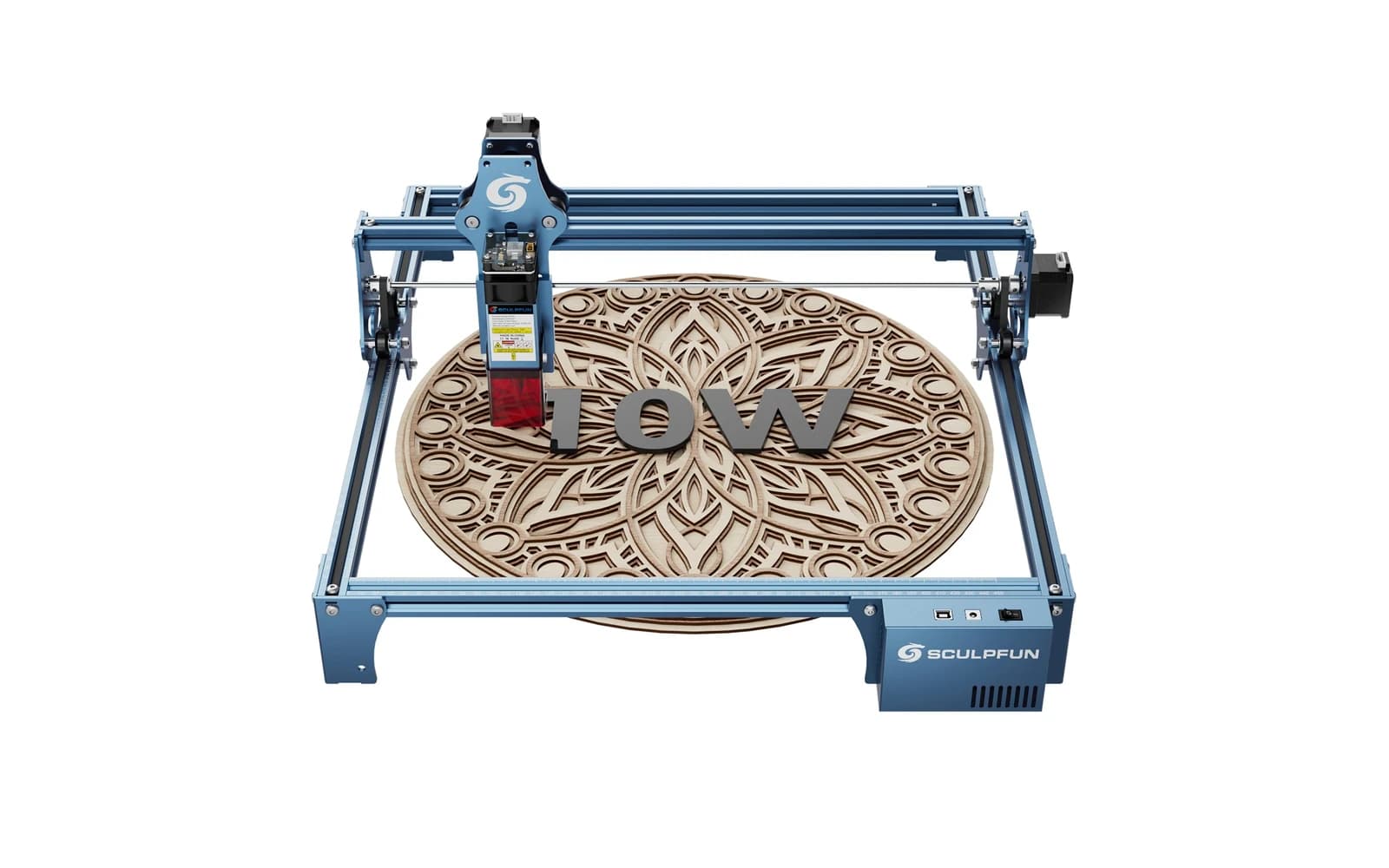

Sculpfun S9 · 10W
10W Sculpfun's proven budget line: still popular for value-focused makers
All Sculpfun models →Add to compare →
Last updated How we evaluate
Released January 2022
Discontinued
Sculpfun no longer sells this machine new. We keep the profile online because it still turns up used and as a reference point.
Choose a power option
Details below update for the selected power option.
Showing specs for: 10W
TL;DR
Sculpfun S9 10W is the 10W SKU on the Sculpfun sculpfun s9 line. Before S30 Ultra, the S9 was Sculpfun's workhorse. Verify optical power on the listing: do not assume combined-watt marketing.
Compare the Sculpfun S9 10W to…
Popular side-by-side matchups with full specs, scores, and an honest verdict.
Best for
What makes this machine stand out
Hardware and workflow features worth understanding before you buy : not just wattage on a label.
Usable cutting on a budget frame
3 mm basswood squares in about 6–10 min in our benchmarks, with 5 mm reachable in one or two passes.
Upgrade path through S30 Ultra heads
Sculpfun lists its S30 Ultra laser heads (11W, 22W, 33W) as compatible with the S9 frame, so a used S9 can take a stronger head later.
Low used price
Sculpfun listed a refurbished S9 Pro at $199 in October 2026; private sales often sit in the same range.
Our verdict
Ideal if you
Sculpfun S9 10W suits makers who sell marks, photos, and gifts more than daily panel cutting. Reasonable open-frame entry price.
Skip if you
Skip if you already quote 5 mm+ cutting in production. Not for cast acrylic or bare metal without spray.
Pros
- Cuts a 10 × 10 cm square in 3 mm basswood in ~6–10 min in our benchmarks
- Photo fills at ~60–140 mm/s: a 10 × 10 cm photo takes ~12–18 min
- Works with LightBurn and LaserGRBL and accepts air assist, so used units are easy to set up
Cons
- Slightly wider ~0.10 mm spot: very fine photo detail is a little softer than on the lower-power S9
- Beyond 5 mm, cutting needs several slow passes and an air pump
- Discontinued: check diode hours, lens and belts before buying a used unit
What this machine is for
High-quality hobby and light-business engraving with light, slow cutting
10W module · Sculpfun S9
Laser spot size
~0.10 mm spot
Motion precision: 0.01 mm
Sample engrave job
~12–18 min
10 × 10 cm (4 × 4 in)
Sample cut job
~6–10 min
10 × 10 cm (4 × 4 in)
Reference benchmark: same job size on every machine so you can compare times fairly. Times are estimates for the reference job above; your design complexity and settings will change them.
Materials
- · Wood
- · Leather
- · Slate
- · Anodized aluminum
Accessories & add-ons
Typical inclusions and add-ons for this profile : confirm your SKU.
- Optional
Enclosure / cabinet
Third-party enclosure improves smoke control and safety
- Recommended
Laser safety glasses
~450 nm diode: OD rated for your wavelength
- Recommended
Fire extinguisher
Editorial guidance : not a live parts list. See also: Ventilation setup · Safety basics
Practical notes
Beginner notes
This profile is the 10W SKU on Sculpfun S9. Read the TL;DR and benchmarks above, then compare other power options via the chips before buying.
Pro tips
Run material test grids at engraving speeds first. Add air assist for light cuts. If cut jobs exceed ~30% of your week, open the higher-watt profile on this site and compare times.
Pro / technical specsRaw numbers for experienced users comparing machines.
- Max speed (spec)
- 167 mm/s
- Avg engrave speed
- 60–140 mm/s fill
- Avg cut speed
- 3–8 mm/s on 2–4 mm wood
Common questions
Which machine is the Sculpfun S9 10W?
It corresponds to the S9 Pro, which Sculpfun sold with a 10W optical diode, a claimed 0.06 mm focus and a 400 × 410 mm engraving area. The line has been succeeded by the S10 and S30 series. Most buyers now find it used or refurbished: Sculpfun listed a refurbished S9 Pro at $199 in October 2026.
How fast does the S9 10W cut 3 mm and 5 mm wood?
In our benchmarks a 10 × 10 cm square in 3 mm basswood takes about 6–10 min at 3–8 mm/s. Around 5 mm basswood is the practical limit in one or two passes with air assist. Sculpfun's claim of 15 mm wood relies on many slow passes, and plywood cuts slower than basswood because of its glue layers.
Is the extra money over the S9 5W worth it?
If you cut, yes. On our tracked listings the 10W costs roughly $100–150 more ($299–449 against $199–299), cuts a 3 mm square in about 6–10 min instead of 9–15 min, and fills photos three to four times faster. If you only engrave small signs and leather, the 5W remains enough.
Alternatives to the Sculpfun S9 10W
Machines in the same space, picked from our database by type, price, and score.
Ortur · Diode · $140 – $1,740
The 20W LM3 is the configuration most buyers mean when they say 'Laser Master 3'. Strong engraving, light cutting, huge community: verify you are not accidentally ordering the 10W SKU.
Sculpfun · Diode · $690
The 22W is the middle of Sculpfun's three S30 Ultra heads (11W, 22W, 33W), often sold bundled with LightBurn. The 33W head goes further for thick cuts. Listings that say S30 Ultra 10W or 20W are reseller labels.
Sculpfun · Diode · $270
Sculpfun S10 10W (2022) is a mid-size open-frame engraver with a sturdier industrial frame than S9, ~385 mm work area, and detachable laser cover. Positioned between budget S9 and S30 families for makers who want better rigidity without Ultra pricing.
