Ortur · Diode (diode + IR)

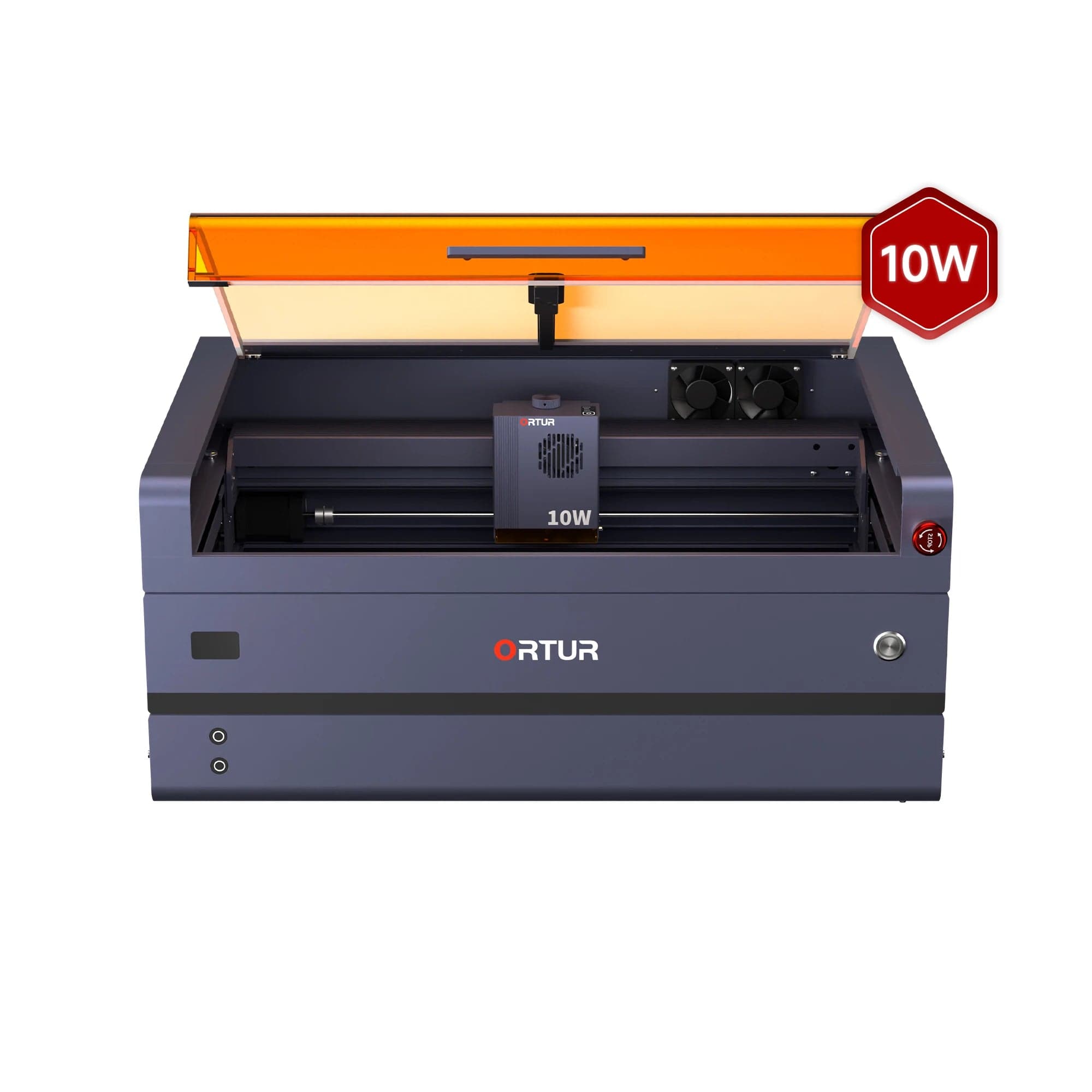

Ortur H20 · 10W diode
Entry H20 chassis with integrated design and Ortur app workflow
All Ortur models →Add to compare →
Last updated How we evaluate
Released October 2023
Choose installed module
Details below match the selected module.
Showing module: 10W diode
TL;DR
Ortur H20 10W is the base diode tier on the H20 frame: faster traverse than LM3 with a more enclosed integration. Good for engraving and light cuts; step up to 20W or 40W for thicker wood.
Best for
What makes this machine stand out
Hardware and workflow features worth understanding before you buy : not just wattage on a label.

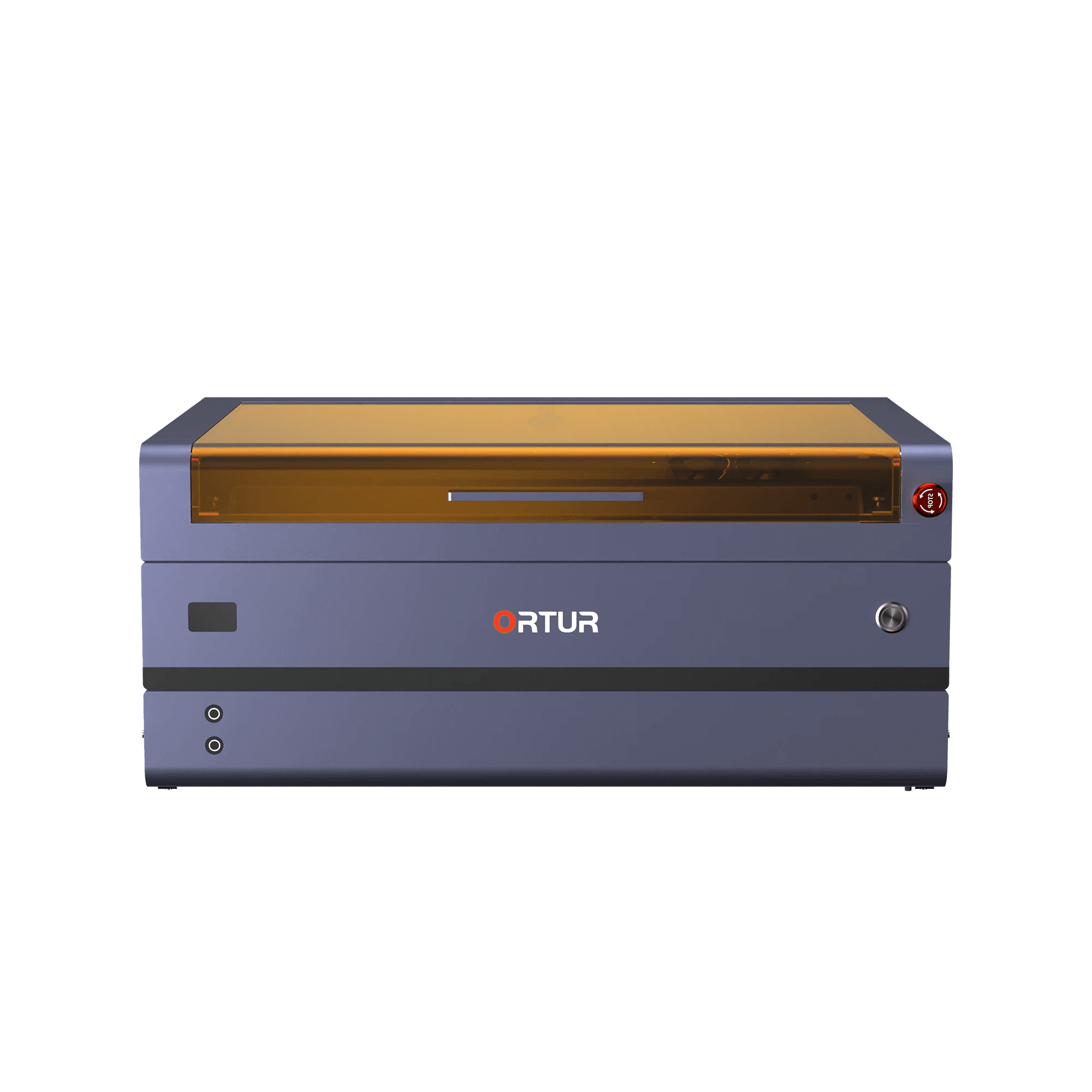

Class 1 enclosure
Lid safety lock, emergency stop, exhaust fan and a light-blocking viewing cover: usable in a shared room.
Motorized lifting platform
The bed lowers for objects up to 98 mm tall, handy for boxes and thick blanks.

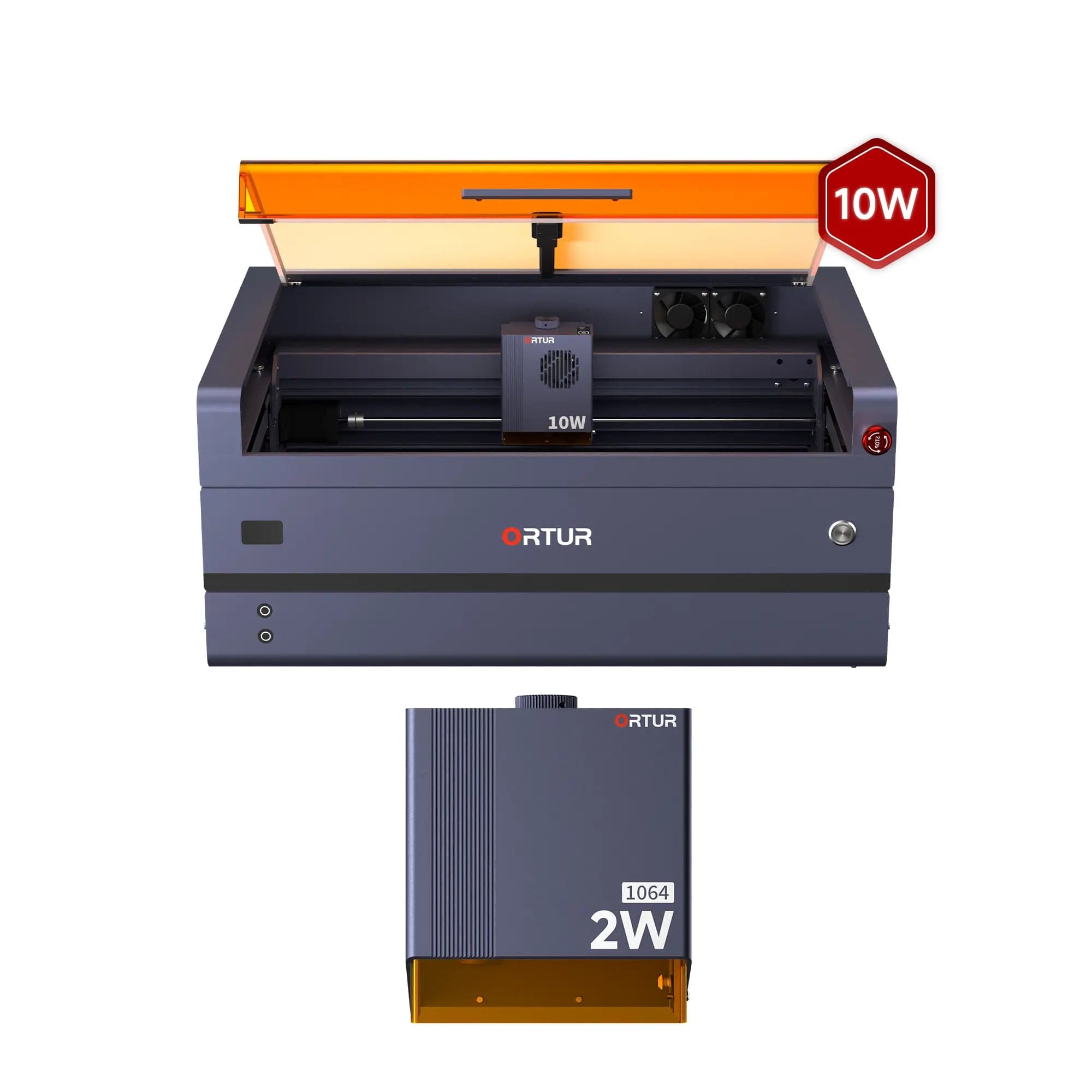

Infrared combo available
Ortur sells a 10W + 2W IR version ($1,748 in October 2026) for marking metal and plastics.
Our verdict
Ideal if you
The 10W diode module on Ortur H20 is right when you mostly engrave wood, leather, and slate and should not pay for cut watts you will not use weekly. Same chassis, upgrade path later.
Skip if you
Skip this module if you cut 5 mm+ stock daily: open the 20W or 40W profile. Cast acrylic and bare metal without spray stay frustrating on diode.
Pros
- Class 1 enclosure with lid lock, exhaust fan and emergency stop
- Motorized lifting platform takes objects up to 98 mm tall
- Fine ~0.08 × 0.09 mm spot for detailed engraving
Cons
- Slow cutting: ~14–24 min for a 3 mm basswood 10 × 10 cm square in our benchmarks
- Manual focus on this module; Ortur only autofocuses the top module
- High price for the laser power: most of the cost is the enclosure
What this machine is for
High-quality hobby and light-business engraving with light, slow cutting
10W module · Ortur H20
Laser spot size
~0.08 × 0.09 mm
Motion precision: 0.01 mm
Sample engrave job
~28–43 min
10 × 10 cm (4 × 4 in)
Sample cut job
~14–24 min
10 × 10 cm (4 × 4 in)
Reference benchmark: same job size on every machine so you can compare times fairly. Times are estimates for the reference job above; your design complexity and settings will change them.
Materials
- · Wood
- · Leather
- · Dark acrylic
- · Anodized aluminum (light)
Accessories & add-ons
Typical inclusions and add-ons for this profile : confirm your SKU.
- Included
Enclosure / cabinet
- Optional
Laser safety glasses
Still useful when servicing or with lid open
- Recommended
Fire extinguisher
Editorial guidance : not a live parts list. See also: Ventilation setup · Safety basics
Practical notes
Beginner notes
This profile is the 10W SKU on Ortur H20. Read the TL;DR and benchmarks above, then compare other modules via the chips before buying.
Pro tips
Run material test grids at engraving speeds first. Add air assist for light cuts on basswood. If cut jobs exceed ~30% of your week, compare the 20W or 40W module profiles before upgrading.
Pro / technical specsRaw numbers for experienced users comparing machines.
- Max speed (spec)
- 20,000 mm/s traverse
- Avg engrave speed
- 5–11 mm/s fill
- Avg cut speed
- 2–3 mm/s on 3 mm wood
Common questions
Why pay over $1,100 for a 10W enclosed machine?
You pay for the enclosure, not the cutting power: Ortur lists a Class 1 enclosure with a light-blocking viewing cover, exhaust fan, lid safety lock, emergency stop and a motorized lifting platform for objects up to 98 mm tall. Ortur's store listed the 10W at $1,109 in October 2026, but out of stock.
What can the H20 10W cut?
In our benchmarks a 10 × 10 cm square in 3 mm basswood takes about 14–24 min at 2–3 mm/s. Basswood up to about 5 mm and thin leather are possible in passes. Ortur describes this module as suited to light cutting, without thickness figures.

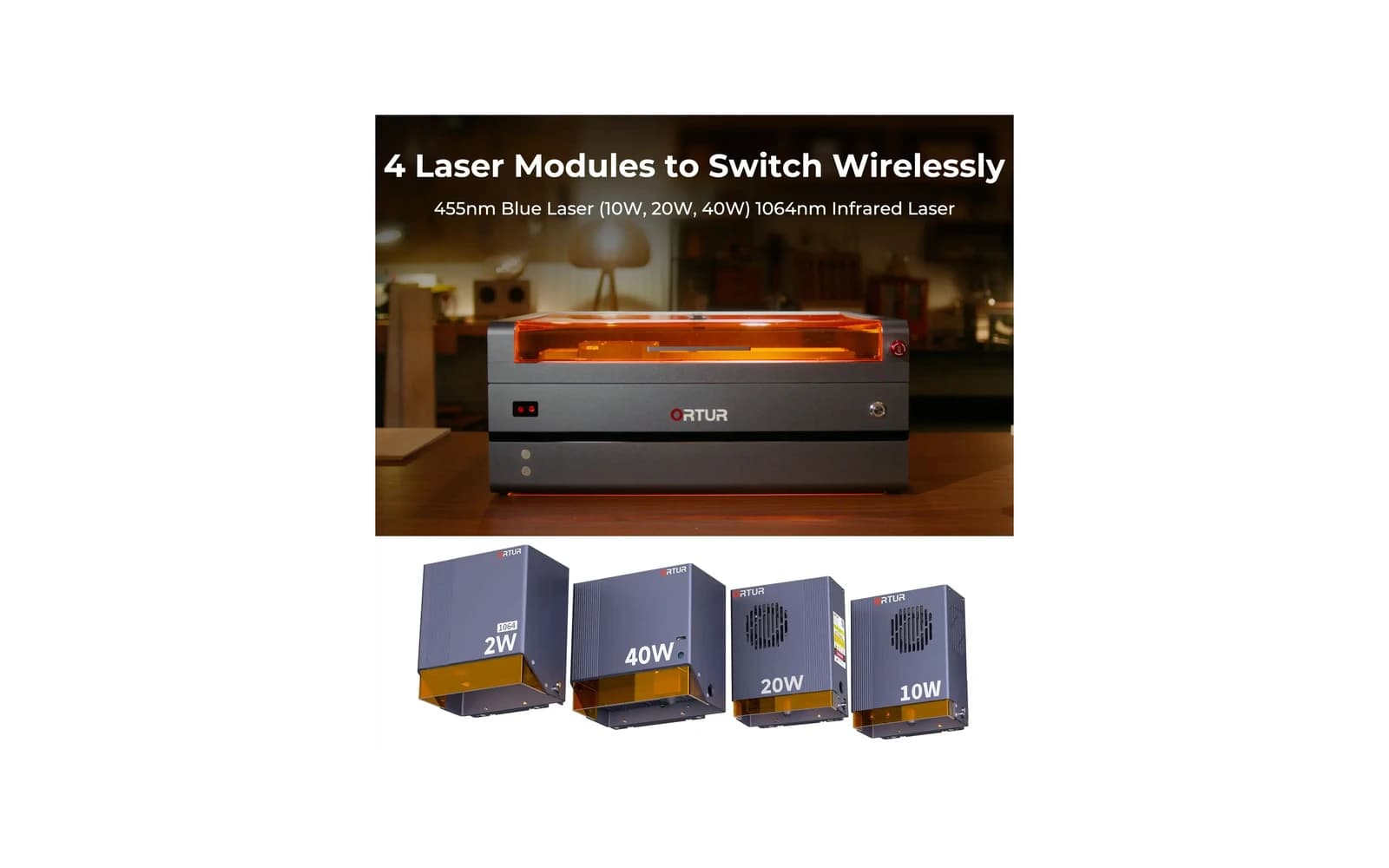

Start with the 10W and upgrade the module later?
The H20 takes interchangeable modules, so it is possible. Compare first: in October 2026 Ortur listed the 20W version at $1,379 with a free air pump and the 40W at $1,909. If you expect to cut weekly, the bundle gap may be cheaper than buying a second module later.
