xTool · Diode

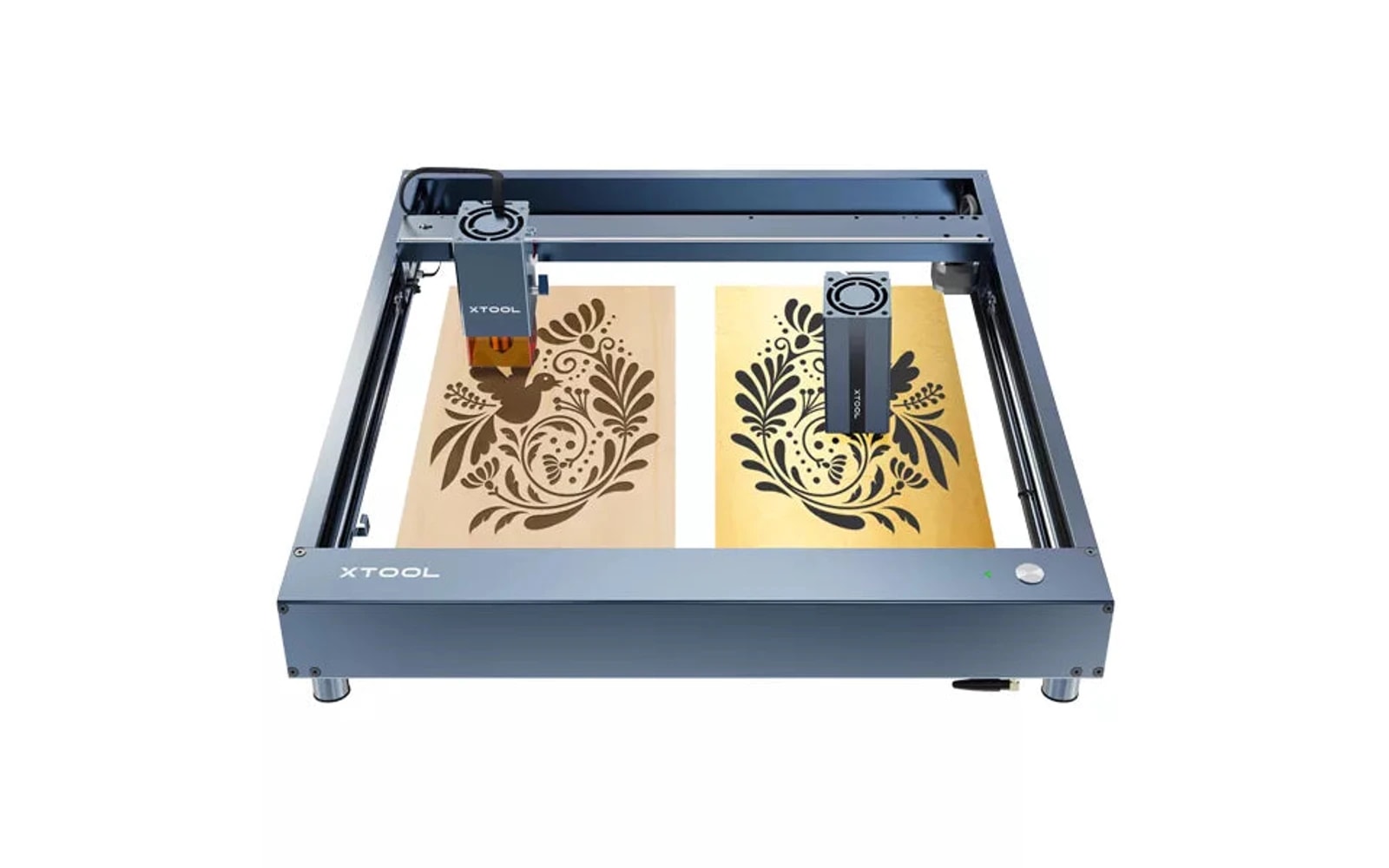

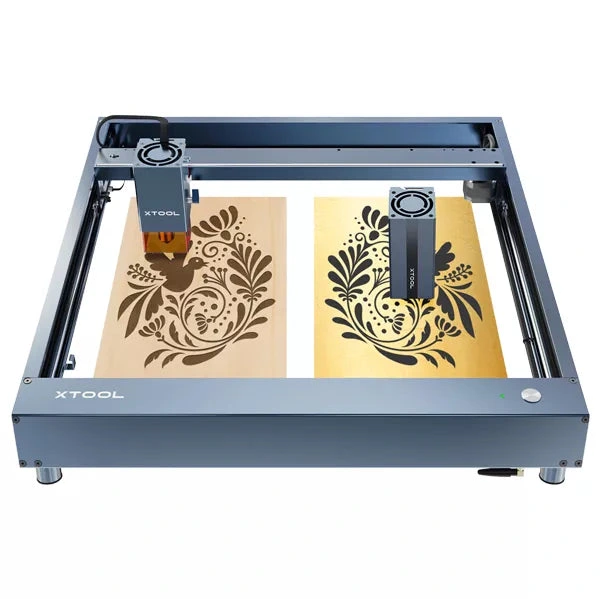

xTool D1 Pro · 10W diode
10W engraving-focused module on the D1 Pro open-frame rail
All xTool models →Add to compare →
Last updated How we evaluate
Released June 2022
Choose installed module
Details below match the selected module.

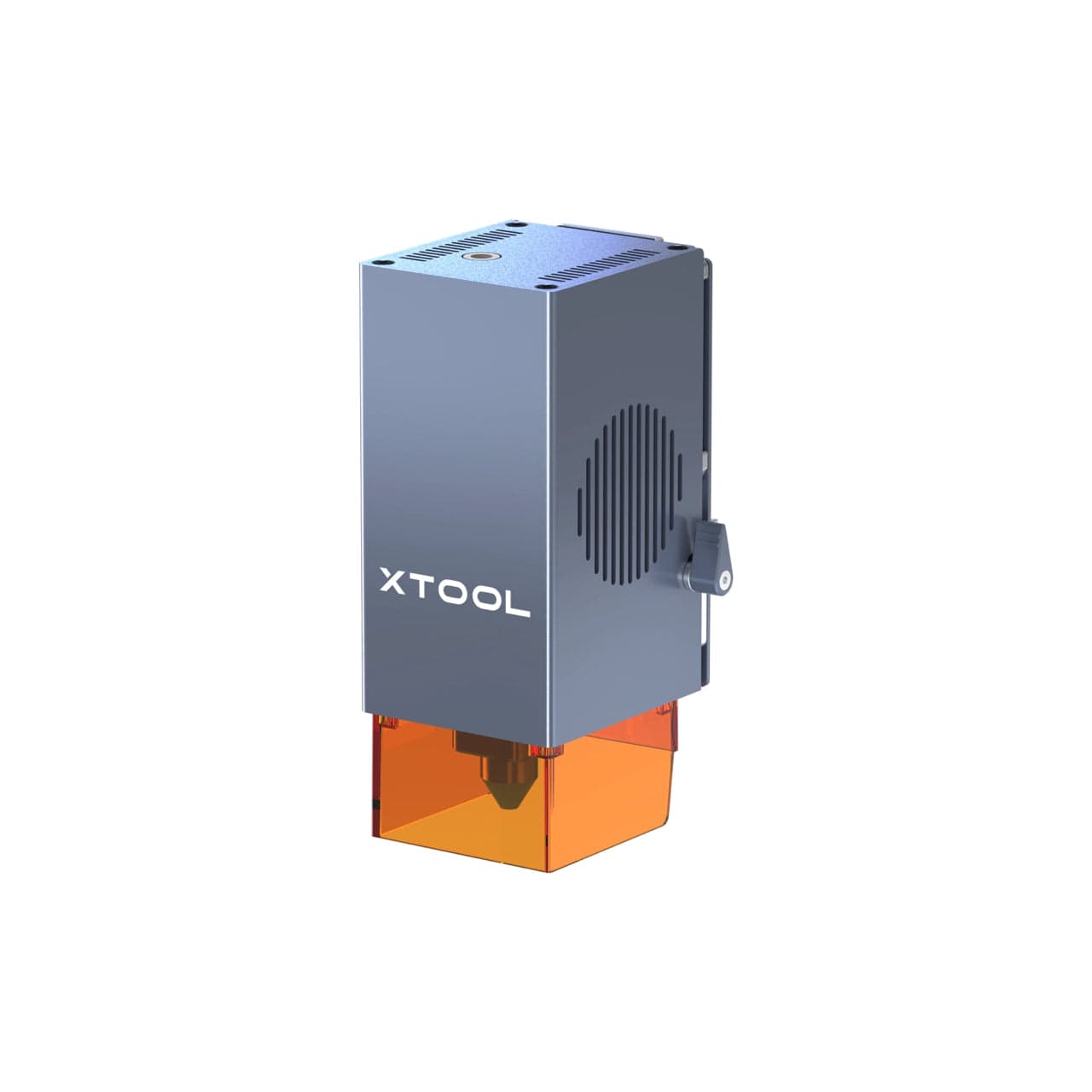

Showing module: 10W diode
TL;DR
The 10W D1 Pro module balances detail engraving and light cuts on xTool's open-frame rail. Good for gifts and leather; compare 20W or 40W modules if plywood cutting dominates your week.
Best for
What makes this machine stand out
Hardware and workflow features worth understanding before you buy : not just wattage on a label.
Swappable laser module
You can upgrade optical power (or add an infrared module on some lines) by swapping the laser head on the same chassis : not buying a whole new machine. Check connector compatibility and firmware before assuming your future 40W module fits today’s 10W purchase.
Open-frame : plan safety first
There is no factory enclosure: you wear OD-rated glasses, control smoke, and keep kids/pets away. You trade cabinet convenience for price and access : fine in a dedicated workshop, stressful in a living room without a plan.
LightBurn compatible
LightBurn support means advanced layers, camera tools, and workflows many makers outgrow the stock app with. Confirm your exact controller board before assuming full features : some machines need a paid license separately.
Our verdict
Ideal if you
The 10W diode module on xTool D1 Pro is right when you mostly engrave wood, leather, and slate and should not pay for cut watts you will not use weekly. Same chassis, upgrade path later.
Skip if you
Skip this module if you cut 5 mm+ stock daily: open the 20W or 40W profile. Cast acrylic and bare metal without spray stay frustrating on diode.
Pros
- 10W on xTool D1 Pro: engraving-first: photo fills and leather at moderate speeds
- Swappable head on the same chassis: upgrade power without replacing the whole machine
- Open-frame: plan laser glasses, exhaust, and workspace rules from day one
- Software on the profile: trial your workflow on scrap before production
Cons
- Clear cast acrylic and thick production cutting still favor CO₂, not diode power alone
- Confirm optical wattage on the listing before you buy
What this machine is for
High-quality hobby and light-business engraving with light, slow cutting
10W module · xTool D1 Pro
Laser spot size
~0.07 mm spot
Motion precision: 0.01 mm
Sample engrave job
~17–24 min
10 × 10 cm (4 × 4 in)
Sample cut job
~9–14 min
10 × 10 cm (4 × 4 in)
Reference benchmark: same job size on every machine so you can compare times fairly. Times are estimates for the reference job above; your design complexity and settings will change them.
Materials
- · Wood
- · Leather
- · Slate
- · Anodized aluminum
- · Stainless steel (with coating spray)
- · Ceramic
Accessories & add-ons
Typical inclusions and add-ons for this profile : confirm your SKU.
- Optional
Enclosure / cabinet
Third-party enclosure improves smoke control and safety
- Recommended
Laser safety glasses
~450 nm diode: OD rated for your wavelength
- Recommended
Fire extinguisher
Editorial guidance : not a live parts list. See also: Ventilation setup · Safety basics
Practical notes
Beginner notes
This profile is the 10W SKU on xTool D1 Pro. Read the TL;DR and benchmarks above, then compare other modules via the chips before buying.
Pro tips
Run material test grids at engraving speeds first. Add air assist for light cuts. If cut jobs exceed ~30% of your week, open the higher-watt profile on this site and compare times.
Pro / technical specsRaw numbers for experienced users comparing machines.
- Max speed (spec)
- 400 mm/s
- Avg engrave speed
- 6–14 mm/s fill
- Avg cut speed
- 2–3 mm/s on 3 mm wood
Alternatives to the xTool D1 Pro 10W
Machines in the same space, picked from our database by type, price, and score.
xTool · Diode · $549 – $699
Launched May 2026, the M2 packs laser engraving, cutting, and integrated inkjet color printing into one enclosed desktop at $599. Built for everyday crafters and Etsy sellers who want color + laser without a pro CO₂ budget: not a metal-marking or production cutter.
Atezr · Diode · $549 – $749
Atezr P2 competes with Acmer P3 and xTool S1 in the enclosed diode space. Decent engraving, moderate cutting. Less community documentation than xTool: verify support in your region.

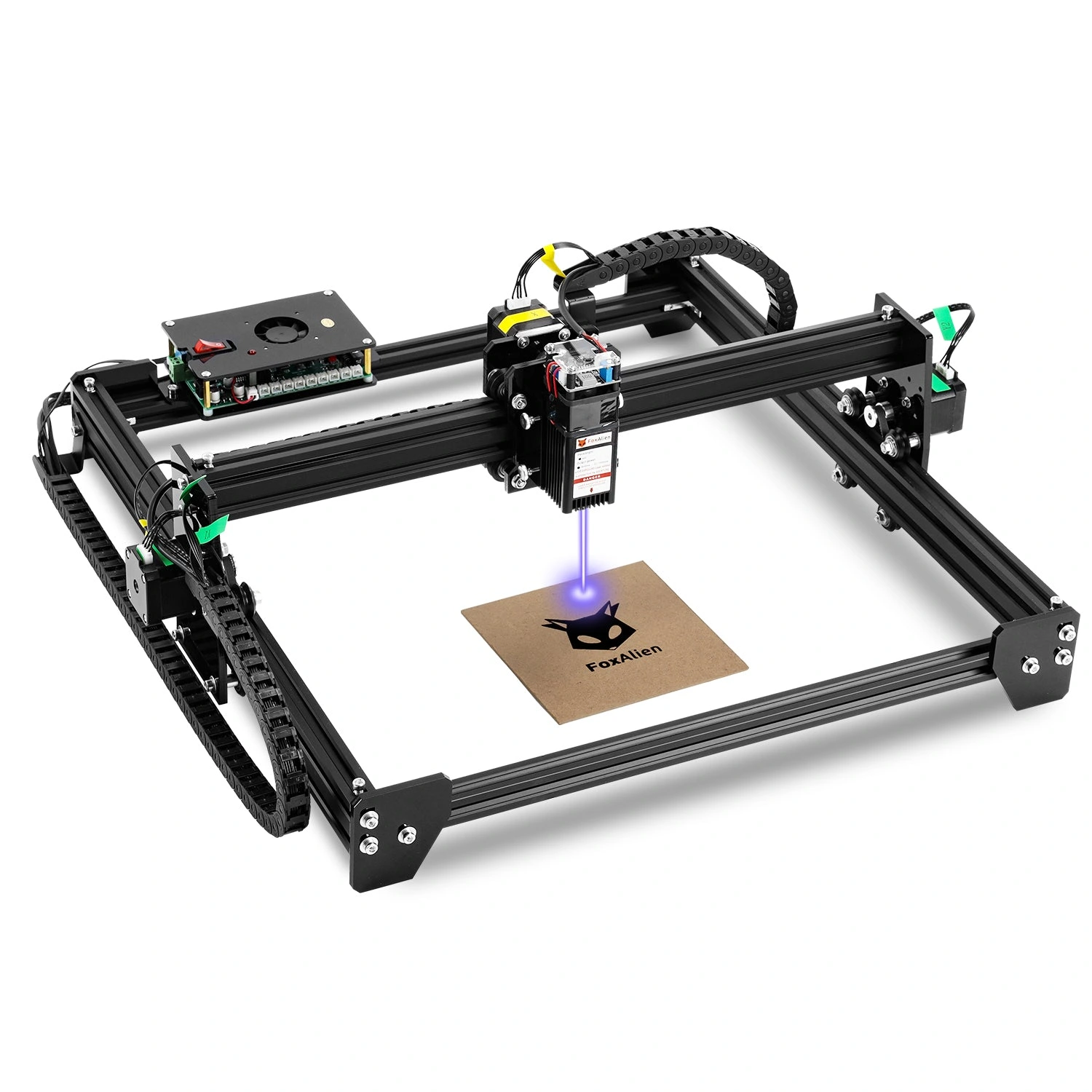

FoxAlien · Diode · $599 – $899
