4 manufacturer photos · 1 / 4
Acmer · Diode
Acmer P2 · 20W
Mid-tier Acmer P2: 20W open-frame with accessory packs
All Acmer models →Add to compare →
Last updated How we evaluate
Released January 2024
Choose a power option
Details below update for the selected power option.
Showing specs for: 20W
TL;DR
Acmer P2 20W sits between P1 and P3 in Acmer's lineup: 20W open frame with optional enclosure and camera bundles. Good value if you don't need P3's full enclosure.
Best for
What makes this machine stand out
Hardware and workflow features worth understanding before you buy : not just wattage on a label.
8 mm plywood in one pass
Acmer's P2-20W sheet lists 4, 6 and 8 mm plywood as single-pass cuts (300 and 200 mm/min), enough for most signs and boxes.
Packs you can grow into
Start with the $484 basic pack and add the enclosure, LightBurn camera or L80 extension kit later (prices on Acmer's store, October 2026).
Our verdict
Ideal if you
Acmer P2 20W is the versatile hobby / side-business SKU: clean engraving and light wood or leather cuts with comparable benchmarks on Maker Atlas.
Skip if you
Open-frame: glasses and exhaust required. Upgrade path to 33W if cutting takes over. Not a CO₂ replacement for clear acrylic or heavy thick-stock production.
Pros
- Acmer's P2-20W sheet cuts 8 mm plywood in one pass at 200 mm/min, and 4 mm at 300 mm/min
- Lowest price on the P2 frame: basic pack at $484 on Acmer's store (October 2026)
- Enclosure, camera and extension packs ($598–1,195) let you start basic and add parts later
Cons
- 10–12 mm plywood needs 2 passes, where the 33W does it in one: compare both if thick stock is planned
- Black acrylic slows down quickly: 4 mm at 100 mm/min, 6 mm in 3 passes, 10 mm in 5
- Basswood engraving preset is 10,000 mm/min: long photo jobs take ~16–25 min for our 10 × 10 cm test
What this machine is for
Everyday engraving plus reliable light cutting on wood, leather, and dark acrylic
20W module · Acmer P2
Laser spot size
~0.08 mm spot
Motion precision: 0.01 mm
Sample engrave job
~16–25 min
10 × 10 cm (4 × 4 in)
Sample cut job
~8–14 min
10 × 10 cm (4 × 4 in)
Reference benchmark: same job size on every machine so you can compare times fairly. Times are estimates for the reference job above; your design complexity and settings will change them.
Materials
- · Wood
- · Leather
- · Acrylic (dark)
Accessories & add-ons
Typical inclusions and add-ons for this profile : confirm your SKU.
- Optional
Enclosure / cabinet
Third-party enclosure improves smoke control and safety
- Recommended
Laser safety glasses
~450 nm diode: OD rated for your wavelength
- Recommended
Fire extinguisher
Editorial guidance : not a live parts list. See also: Ventilation setup · Safety basics
Practical notes
Beginner notes
This profile is the 20W SKU on Acmer P2. Read the TL;DR and benchmarks above, then compare other power options via the chips before buying.
Pro tips
Use air assist for cuts, lower scan speed for photo engraving. Multiple passes at moderate speed beat one aggressive pass. Check the flagship tier’s cut benchmark if you quote production times to customers.
Pro / technical specsRaw numbers for experienced users comparing machines.
- Max speed (spec)
- 300 mm/s
- Avg engrave speed
- 17–43 mm/s fill
- Avg cut speed
- 2–3 mm/s on 3 mm wood
Common questions
How thick can the Acmer P2 20W cut?
Acmer's P2-20W cutting sheet gives plywood at 300 mm/min for 4 mm and 200 mm/min for 6 and 8 mm, all in one pass; 10 and 12 mm need 2 passes. With the focus lowered 2 mm, it lists 15 mm paulownia in one pass at 150 mm/min. Black acrylic: 4 mm in one pass at 100 mm/min, 6 mm in 3 passes.
Which P2 20W pack should I choose?
Acmer's US prices in October 2026: Basic $484, Camera $598, Enclosure $632, Extension $736, All in One $1,195. The Enclosure pack is the one to look at if you work in a living space, since the P2 is an open frame. The Camera pack mainly helps with placing designs on existing objects.
P2 20W or P2 33W: which is the better buy?
The basic packs are about $105 apart ($484 vs $589). The 20W is enough if most of your cutting stays at or under 8 mm plywood. Go 33W if you cut 10–12 mm stock or want shorter cut times: Acmer lists 4 mm plywood at 500 mm/min on the 33W against 300 mm/min here. Buying the 33W module later costs $499, so decide upfront.
Alternatives to the Acmer P2 20W
Machines in the same space, picked from our database by type, price, and score.

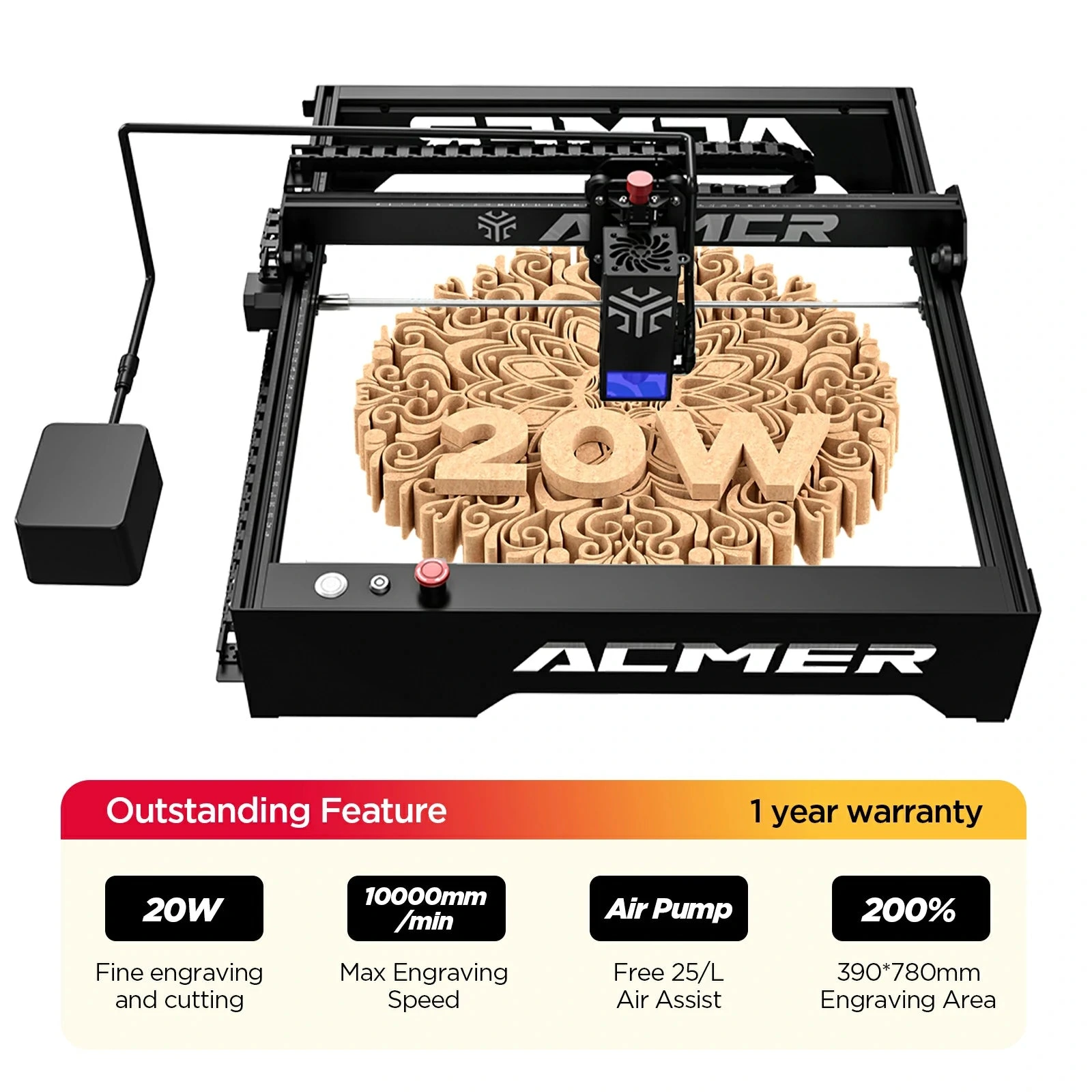

Acmer · Diode · $329 – $399
Acmer P1 20W adds cutting headroom over the 10W P1 on the same frame class. Still a budget brand: verify optical power and expect less polish than Sculpfun or Ortur.
Sculpfun · Diode · $690
The 22W is the middle of Sculpfun's three S30 Ultra heads (11W, 22W, 33W), often sold bundled with LightBurn. The 33W head goes further for thick cuts. Listings that say S30 Ultra 10W or 20W are reseller labels.
xTool · Diode · $499 – $1,229
Launched May 2026, the M2 packs laser engraving, cutting, and integrated inkjet color printing into one enclosed desktop at $599. Built for everyday crafters and Etsy sellers who want color + laser without a pro CO₂ budget: not a metal-marking or production cutter.
