Atomstack · Diode

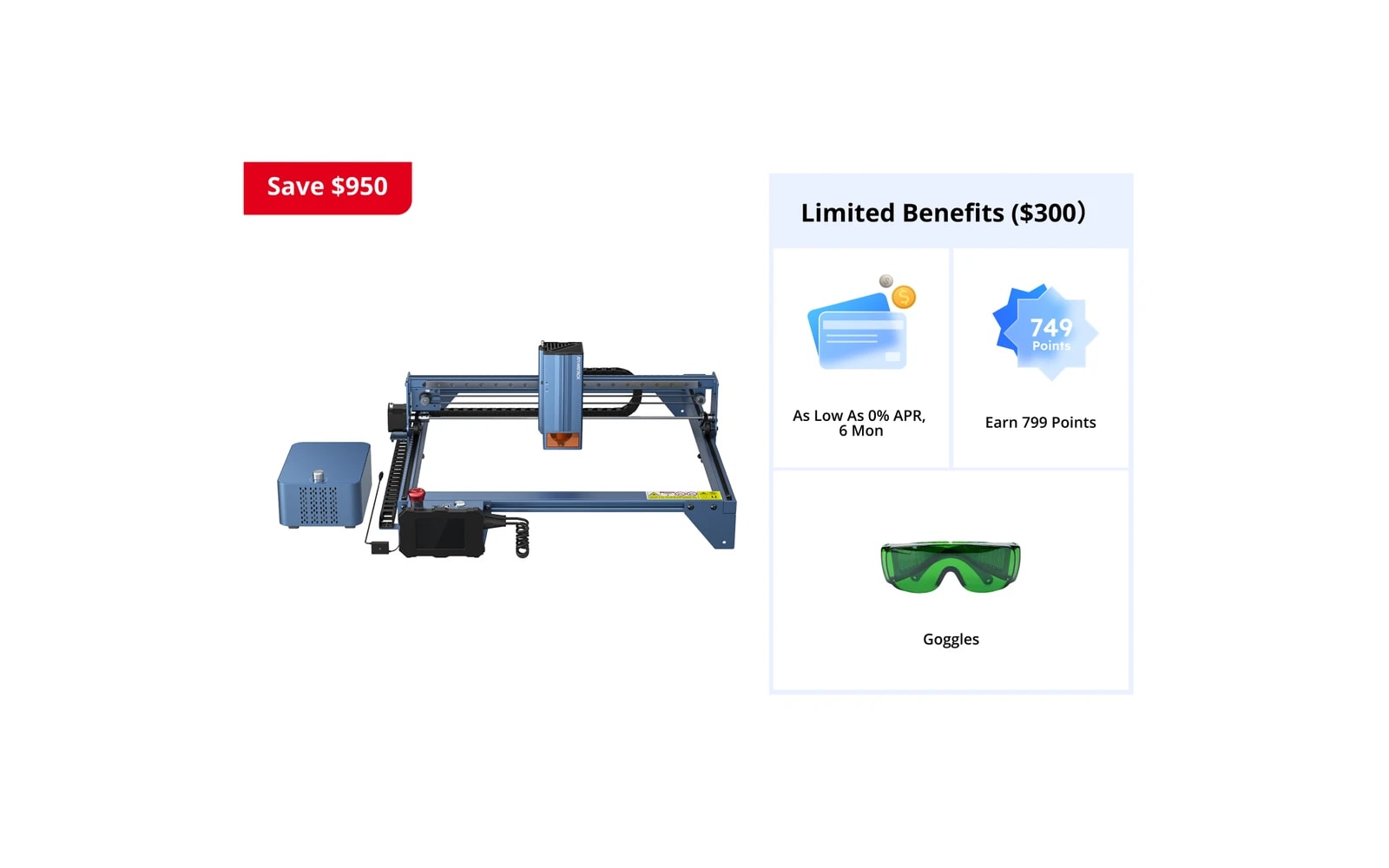

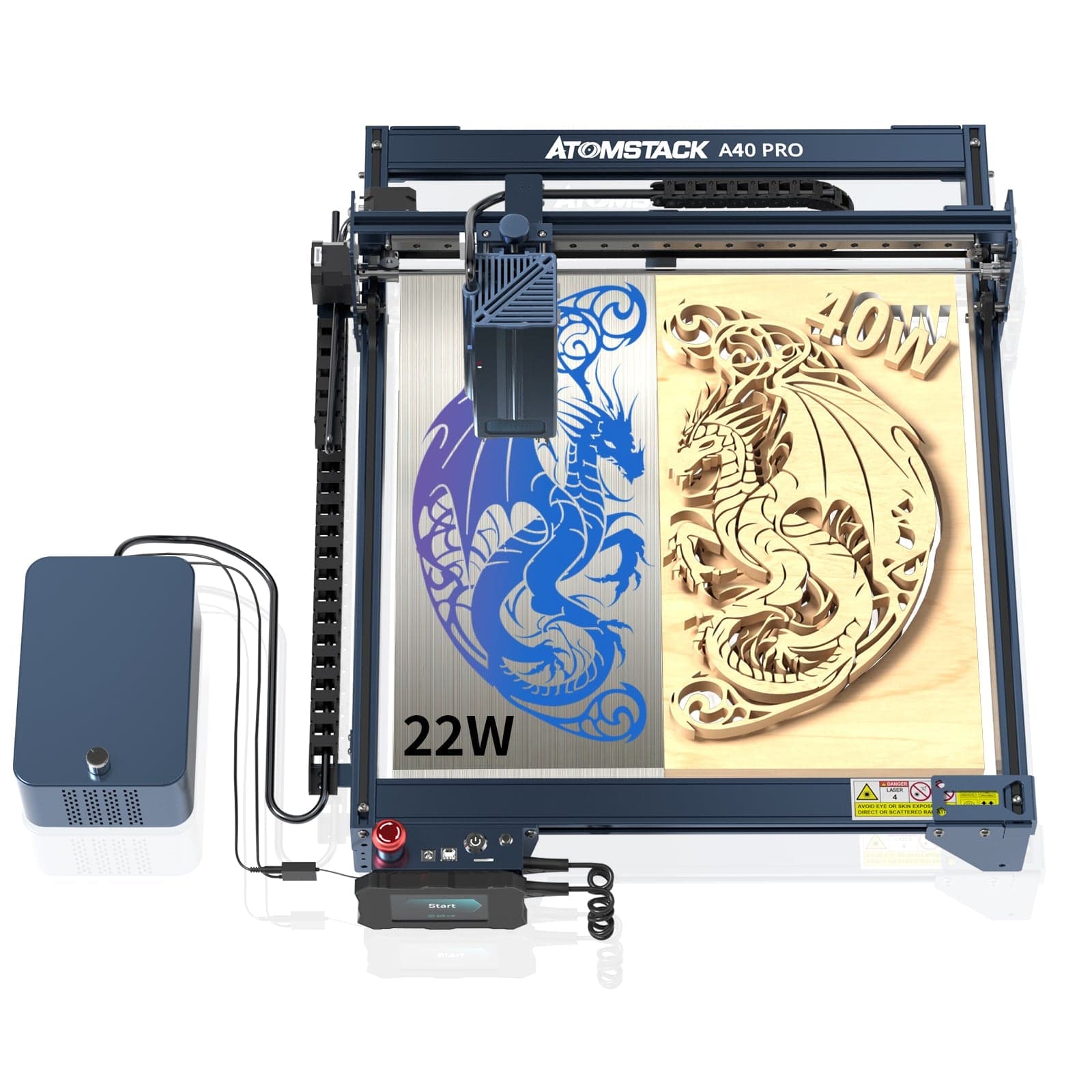

Atomstack A40 Pro · 20W
20W Mid-tier Atomstack with better frame and 40W-class cutting claims
All Atomstack models →Add to compare →
Last updated How we evaluate
Released June 2022
Discontinued
Atomstack no longer sells this machine new. We keep the profile online because it still turns up used and as a reference point.
Choose a power option
Details below update for the selected power option.
Showing specs for: 20W
TL;DR
Atomstack A40 Pro 20W is the 20W SKU on the Atomstack atomstack a40 pro line. Step up from A5 Pro with a stiffer frame and stronger cutting marketing (40W combined). Verify optical power on the listing: do not assume combined-watt marketing.
Best for
What makes this machine stand out
Hardware and workflow features worth understanding before you buy : not just wattage on a label.
Value on the used market
Our price range starts at $349; a used unit at or below that buys a rigid 410 × 400 mm frame for engraving work.
Finer spot than the 40W
~0.07 mm spot in our profile, a touch tighter than the 40W module, which helps on photos and dense text.
Our verdict
Ideal if you
Atomstack A40 Pro 20W is the versatile hobby / side-business SKU: clean engraving and light wood or leather cuts with comparable benchmarks on Maker Atlas.
Skip if you
Open-frame: glasses and exhaust required. Upgrade path to 40W if cutting takes over. Not a CO₂ replacement for clear acrylic or heavy thick-stock production.
Pros
- Sold used only now: at or below the $349 low end of our range, it undercuts current 20W machines of the same cutting class
- ~0.07 mm spot, finer than the 40W module on the same frame: better for photos and small fonts
Cons
- Discontinued: no new stock from Atomstack, so warranty and spare modules depend on the seller
- Slow cutting in our benchmark: ~9–15 min for a 10 × 10 cm square in 3 mm basswood at 2–3 mm/s
- Photo fills take ~18–28 min for our 10 × 10 cm test, about 50% longer than the 40W
What this machine is for
Everyday engraving plus reliable light cutting on wood, leather, and dark acrylic
20W module · Atomstack A40 Pro
Laser spot size
~0.07 mm spot
Motion precision: 0.01 mm
Sample engrave job
~18–28 min
10 × 10 cm (4 × 4 in)
Sample cut job
~9–15 min
10 × 10 cm (4 × 4 in)
Reference benchmark: same job size on every machine so you can compare times fairly. Times are estimates for the reference job above; your design complexity and settings will change them.
Materials
- · Wood
- · Leather
- · Slate
- · Anodized aluminum
Accessories & add-ons
Typical inclusions and add-ons for this profile : confirm your SKU.
- Optional
Enclosure / cabinet
Third-party enclosure improves smoke control and safety
- Recommended
Laser safety glasses
~450 nm diode: OD rated for your wavelength
- Recommended
Fire extinguisher
Editorial guidance : not a live parts list. See also: Ventilation setup · Safety basics
Practical notes
Beginner notes
This profile is the 20W SKU on Atomstack A40 Pro. Read the TL;DR and benchmarks above, then compare other power options via the chips before buying.
Pro tips
Use air assist for cuts, lower scan speed for photo engraving. Multiple passes at moderate speed beat one aggressive pass. Check the flagship tier’s cut benchmark if you quote production times to customers.
Pro / technical specsRaw numbers for experienced users comparing machines.
- Max speed (spec)
- 250 mm/s
- Avg engrave speed
- 10–25 mm/s fill
- Avg cut speed
- 2–3 mm/s on 3–5 mm wood
Common questions
Is the Atomstack A40 Pro 20W still worth buying used?
Only at a clear discount. The A40 Pro is no longer sold new (Atomstack now sells the A40 Pro V2, $769 machine-only in October 2026), so check that the laser module works, ask for the original power supply and assume no factory warranty. Below about $350 it is a reasonable engraving machine; above that, compare current 20W models with warranty.
How thick can the A40 Pro 20W cut?

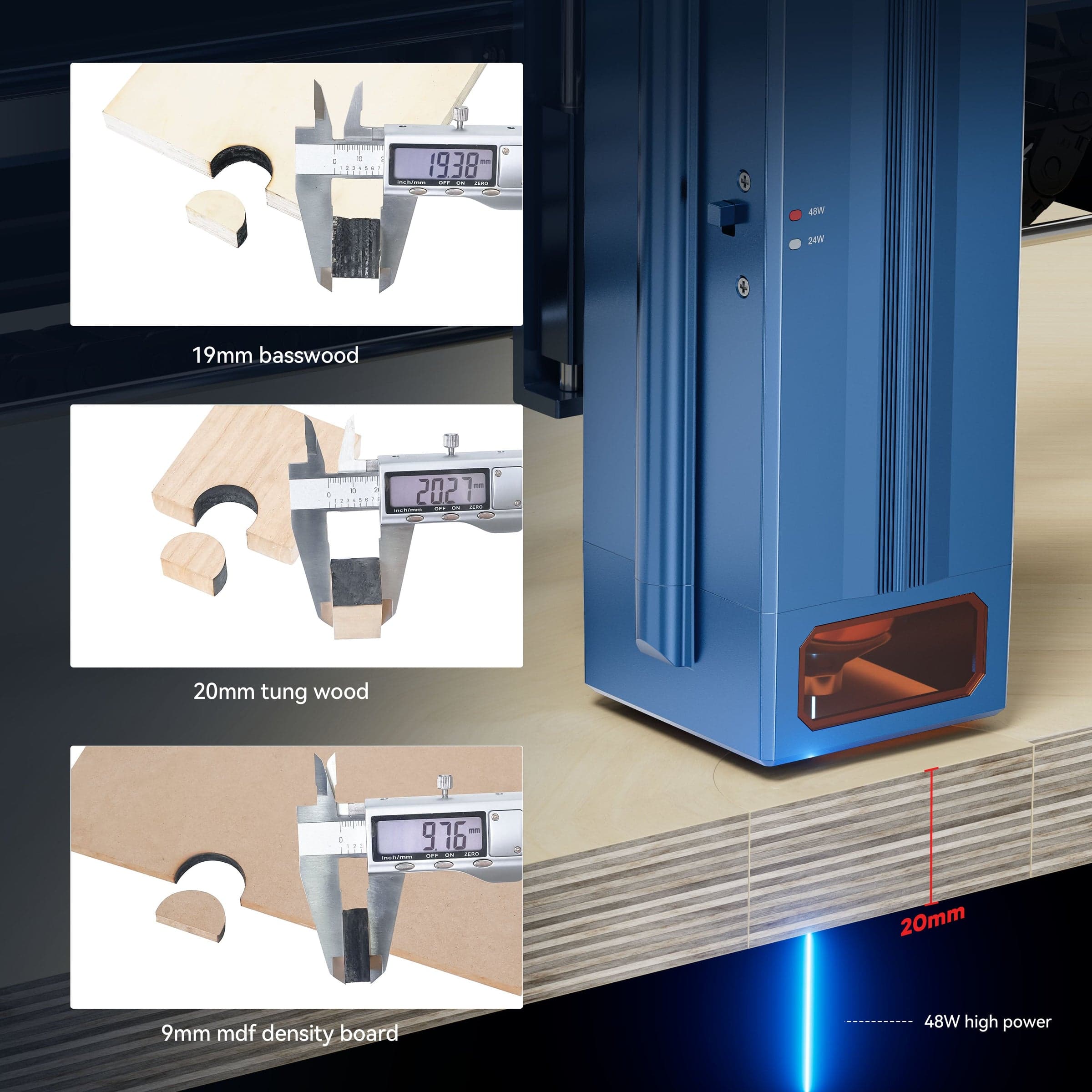

Atomstack's marketing for the A40 Pro family quoted very thick one-pass cuts that apply to its top module, not this one. Our profile lists basswood up to 8 mm (several passes at that thickness) and dark acrylic up to 5 mm; our 3 mm basswood test square takes ~9–15 min.
On the used market, 20W or 40W A40 Pro?
Take the 20W if you engrave much more than you cut: its spot is finer (~0.07 mm vs ~0.08 mm) and listings usually sit lower ($349–499 vs $399–599 in our price range). Take the 40W if cut work matters, since it roughly halves cut time in our benchmark.
