Atomstack · Diode

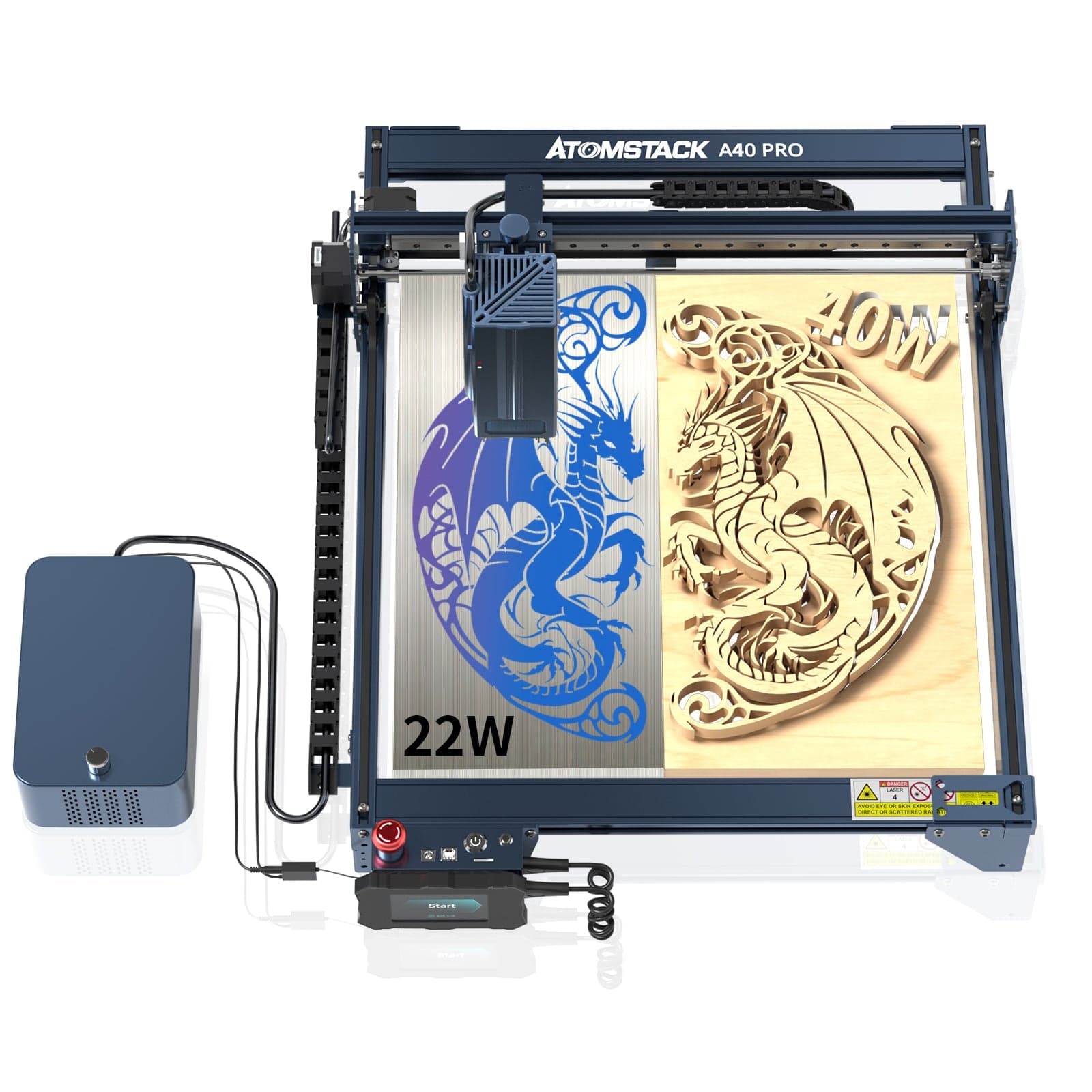

Atomstack A40 Pro · 40W
40W Mid-tier Atomstack with better frame and 40W-class cutting claims
All Atomstack models →Add to compare →
Last updated How we evaluate
Released May 2023
Discontinued
Atomstack no longer sells this machine new. We keep the profile online because it still turns up used and as a reference point.
Choose a power option
Details below update for the selected power option.
Showing specs for: 40W
TL;DR
Atomstack A40 Pro 40W is the 40W SKU on the Atomstack atomstack a40 pro line. Step up from A5 Pro with a stiffer frame and stronger cutting marketing (40W combined). Verify optical power on the listing: do not assume combined-watt marketing.
Compare the Atomstack A40 Pro 40W to…
Popular side-by-side matchups with full specs, scores, and an honest verdict.
Best for
What makes this machine stand out
Hardware and workflow features worth understanding before you buy : not just wattage on a label.
Half the cut time of the 20W
~6–10 min for our 10 × 10 cm square in 3 mm basswood, against ~9–15 min with the 20W module on the same frame.
Thicker stock
Basswood up to 10 mm and dark acrylic up to 5 mm in our profile, with fewer passes than the 20W.
Our verdict
Ideal if you
Atomstack A40 Pro 40W targets mixed engraving and wood-cutting weeks: fewer passes on basswood and dark acrylic than weaker SKUs in the same line.
Skip if you
Wrong pick if you never engrave and only wanted the lowest price. Ultra-fine photo work can look better on an engraving-first SKU. Open-frame: safety and smoke are on you.
Pros
- Roughly halves cut time versus the 20W module: ~6–10 min for our 10 × 10 cm square in 3 mm basswood
- Profile cut range up to 10 mm basswood and 5 mm dark acrylic
- Photo fills at 60–140 mm/s in our tests (~12–18 min for a 10 × 10 cm photo)
Cons
- Discontinued: buy used only with a working-module check, since spare 40W modules for the original A40 Pro are hard to source
- Wider spot (~0.08 mm) and more smoke than the 20W: detail on small photos is slightly softer
- Used prices ($399–599) overlap with new machines that include warranty
What this machine is for
Maximum cut speed and depth in the line: engraving remains strong at tuned speeds
40W module · Atomstack A40 Pro
Laser spot size
~0.08 mm spot
Motion precision: 0.01 mm
Sample engrave job
~12–18 min
10 × 10 cm (4 × 4 in)
Sample cut job
~6–10 min
10 × 10 cm (4 × 4 in)
Reference benchmark: same job size on every machine so you can compare times fairly. Times are estimates for the reference job above; your design complexity and settings will change them.
Materials
- · Wood
- · Leather
- · Slate
- · Anodized aluminum
Accessories & add-ons
Typical inclusions and add-ons for this profile : confirm your SKU.
- Optional
Enclosure / cabinet
Third-party enclosure improves smoke control and safety
- Recommended
Laser safety glasses
~450 nm diode: OD rated for your wavelength
- Recommended
Fire extinguisher
Editorial guidance : not a live parts list. See also: Ventilation setup · Safety basics
Practical notes
Beginner notes
This profile is the 40W SKU on Atomstack A40 Pro. Read the TL;DR and benchmarks above, then compare other power options via the chips before buying.
Pro tips
Treat engraving and cutting as separate profiles. Push cut speeds only after test squares on your material. Compare CO₂ only when clear acrylic or all-day production enters the picture.
Pro / technical specsRaw numbers for experienced users comparing machines.
- Max speed (spec)
- 250 mm/s
- Avg engrave speed
- 60–140 mm/s fill
- Avg cut speed
- 4–10 mm/s on 3–5 mm wood
Common questions
Should I buy a used Atomstack A40 Pro 40W in 2026?
It can make sense if the price is well below $500 and the seller shows a test cut. The A40 Pro is no longer sold new; Atomstack's current model is the A40 Pro V2 (switchable 24W/48W, $769 machine-only in October 2026), so the original's parts supply is shrinking. Factor in a possible module replacement.
What does the A40 Pro 40W cut in practice?
Atomstack's family marketing promised very thick one-pass cuts; we do not rely on those figures. Our profile lists basswood up to 10 mm and dark acrylic up to 5 mm, and our benchmark cuts a 10 × 10 cm square in 3 mm basswood in ~6–10 min at 4–10 mm/s, against ~9–15 min on the 20W.
Is the 40W the right used pick over the 20W?
Yes if you cut more than a few pieces a week: the time saved is the main reason to own it. If you mostly engrave photos, the 20W's finer spot and lower used price ($349–499 vs $399–599) are the better deal.
