Monport · Fiber

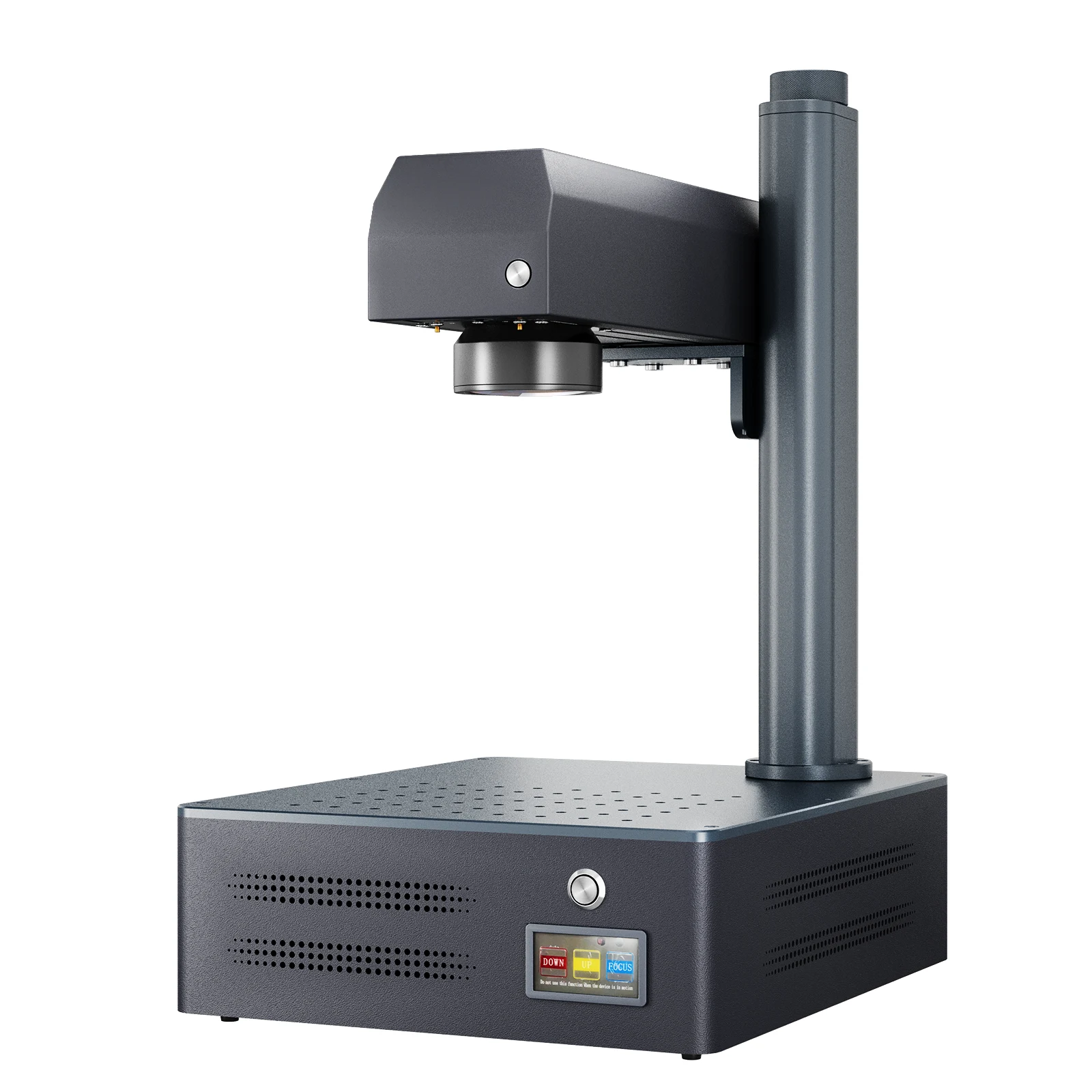

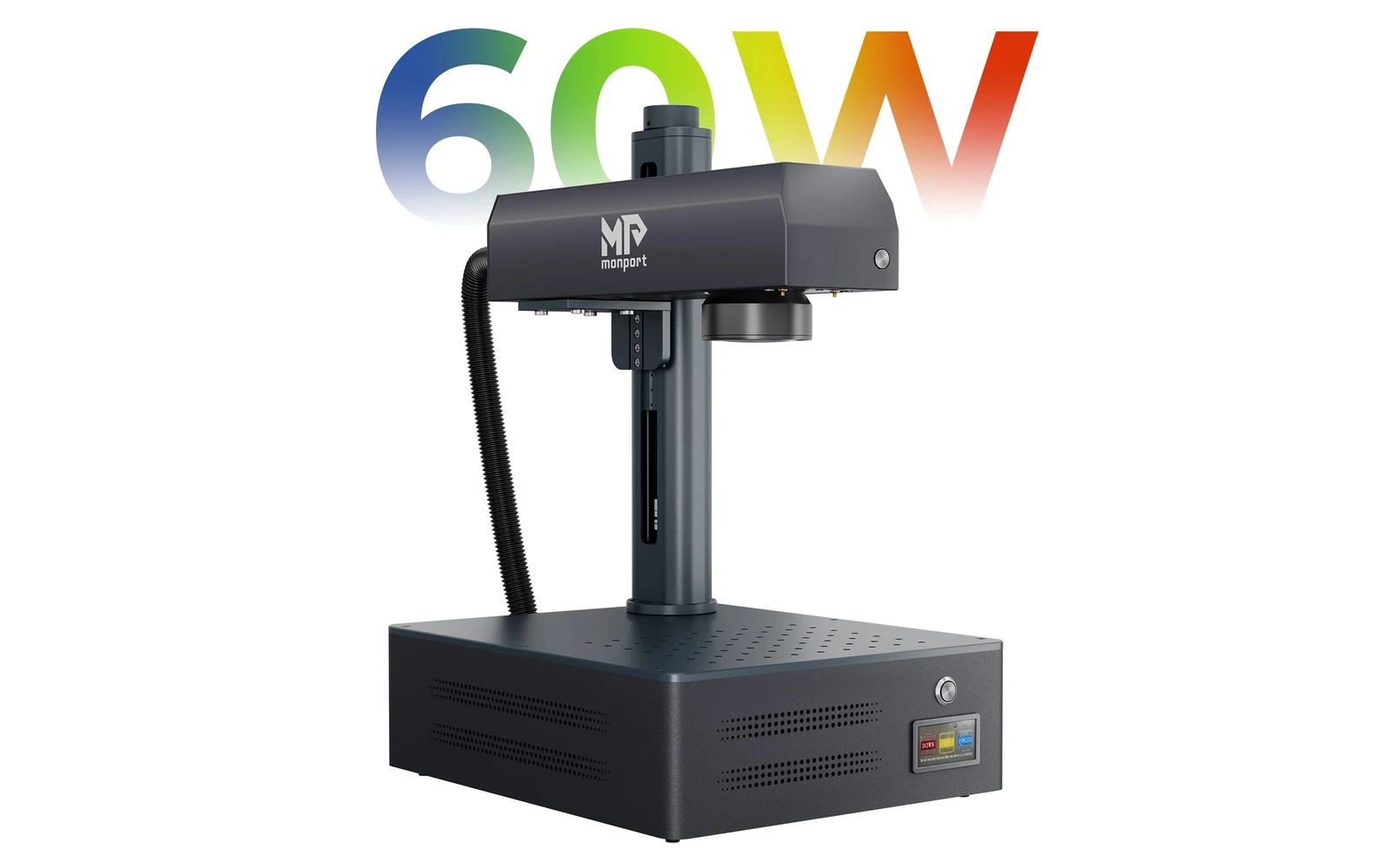

Monport GM Pro MOPA · 60W
Integrated 60W JPT MOPA with autofocus: colour marking plus real engraving depth
All Monport models →Add to compare →
Last updated How we evaluate
Released October 2025
Choose a power option
Details below update for the selected power option.
Showing specs for: 60W
TL;DR
The GM Pro 60W MOPA is the most powerful version of Monport's integrated fiber: a 60W JPT MOPA source with 2 mJ of pulse energy, adjustable 2–500 ns pulse, one-touch autofocus and a 175 × 175 mm field. It covers colour marking and deeper engraving (0.10 mm listed per pass) in one compact machine. $3,598 on Monport's store in October 2026, about $670 less than the split GT 60W MOPA with autofocus.
Best for
What makes this machine stand out
Hardware and workflow features worth understanding before you buy : not just wattage on a label.
Colour and depth in one machine
2 mJ of pulse energy and a 2–500 ns adjustable pulse: oxide colours on stainless steel, black marks on aluminum and deep relief on the same compact chassis.
MOPA 60W under $3,600
At $3,598 in October 2026 the GM Pro 60W MOPA undercuts Monport's split GT 60W MOPA with autofocus by about $670 and the GPro Vision 60W MOPA by about $1,700.
Our verdict
Ideal if you
The GM Pro 60W MOPA is the strongest value in Monport's MOPA range: colour, black marking and deep engraving with autofocus, for well under the price of the split machines.
Skip if you
No camera, a 400 mm Z height that limits tall parts, and an open galvo that needs an enclosure or strict eye protection. Specs are Monport's until independent tests arrive.
Pros
- 2 mJ pulse energy with full MOPA pulse control: colour work and deep engraving from one machine
- About $670 less than Monport's split GT 60W MOPA with autofocus ($4,270, Monport store, Oct 2026)
- 175 × 175 mm field, autofocus and electric lift in a 40 × 33 cm footprint
Cons
- Only $98 more than the manual-focus GM 60W MOPA: check which version is in the cart
- 400 mm maximum Z height, against 550 mm on the split GT series
What this machine is for
Colour marking, deep engraving and relief on a compact one-piece MOPA
60W MOPA fiber · Monport GM Pro MOPA
Laser spot size
—
Motion precision: 0.01 mm
Sample engrave job
~3–6 min
10 × 10 cm (4 × 4 in)
Sample cut job
—
Reference benchmark: same job size on every machine so you can compare times fairly. Times are estimates for the reference job above; your design complexity and settings will change them.
Materials
- · Stainless steel (black and colour)
- · Aluminum (bare and anodized)
- · Brass & copper
- · Titanium (colour)
- · Gold & silver
- · Plastics
- · Stone
Accessories & add-ons
Typical inclusions and add-ons for this profile : confirm your SKU.
- Optional
Enclosure / cabinet
Third-party enclosure improves smoke control and safety
- Included
Laser safety glasses
~450 nm diode: OD rated for your wavelength
- Recommended
Fire extinguisher
Editorial guidance : not a live parts list. See also: Ventilation setup · Safety basics
Practical notes
Beginner notes
This profile is the 60W tier of the GM Pro MOPA, the version to pick when colour and engraving depth both matter. Compare the other tier via the chips.
Pro tips
For deep relief, use long pulses and high power with several passes, refocusing with the autofocus as the surface goes down; switch to short pulses for the final cleaning pass to brighten the bottom.
Pro / technical specsRaw numbers for experienced users comparing machines.
- Max speed (spec)
- 10 000 mm/s
- Avg engrave speed
- ~500–2 000 mm/s
- Avg cut speed
- —
Common questions
What is the difference between the GM Pro 60W MOPA and the GM 60W MOPA?
The Pro version has one-touch autofocus and an electric lift; the GM 60W MOPA, listed on the same page at $3,500 in October 2026, is set by hand. For $98 more, the autofocus version is the easier daily machine.
GM Pro 60W MOPA or GPro Vision 60W MOPA?
Both use a 60W MOPA source and a 175 × 175 mm field. The GPro Vision is a split fiber with a 16 MP positioning camera at $5,299; the GM Pro 60W MOPA is a one-piece machine without camera at $3,598 (October 2026). Pay for the camera only if you place artwork on many irregular finished parts.
Can the GM Pro 60W MOPA cut metal?
Thin sheet, in many passes. With 2 mJ of pulse energy it is the strongest tier of the line for cut-outs and deep relief, but it remains a marking laser with a 175 × 175 mm field.
Alternatives to the Monport GM Pro 60W MOPA
Machines in the same space, picked from our database by type, price, and score.
Monport · Fiber · $3,600 – $4,950
Monport GT 60W MOPA Fiber is the 60W SKU on the Monport monport gt line. Monport GT 30W brings split-cabinet fiber marking with autofocus: useful for varying part heights. Verify optical power on the listing: do not assume combined-watt marketing.
Monport · Fiber · $5,299 – $5,499
The GPro Vision 60W MOPA adds Monport's 16 MP positioning camera and autofocus to a 60W MOPA source with a 175 × 175 mm field. MOPA pulse control opens colour marking on stainless steel and titanium and cleaner marks on plastics; Monport rates it for brass up to 2.5 mm thick. $5,299 on Monport's store in October 2026, listed for mid-October shipping. The line launched in June 2026; no independent review yet.
Creality · Fiber · $4,299
The 60W MOPA WaveSync head is Creality's top metal module for Falcon T1: pulse control for color effects on stainless and faster deep engraving than the 20W fiber option. For shops that already committed to the T1 chassis and need production metal throughput.
