4 manufacturer photos · 1 / 4
Ortur · Diode
Ortur LM2 S2 · 5W
5W Ortur LM2 S2: lowest-cost Ortur still worth knowing
All Ortur models →Add to compare →
Last updated How we evaluate
Released January 2022
Choose a power option
Details below update for the selected power option.
Showing specs for: 5W
TL;DR
Ortur LM2 S2 5W is the entry SKU: engraving-first, minimal cutting. Fine for learning if price is right; most users outgrow it quickly.
Best for
What makes this machine stand out
Hardware and workflow features worth understanding before you buy : not just wattage on a label.
Cheapest Ortur frame
Ortur listed the LU2-4 version at $199.99 in October 2026, a low-risk way to learn laser engraving.
Fine spot for engraving
About 0.07 mm in our profile: small lettering and line art stay crisp on wood and leather.
Our verdict
Ideal if you
Ortur LM2 S2 5W suits makers who sell marks, photos, and gifts more than daily panel cutting. Reasonable open-frame entry price.
Skip if you
Skip if you already quote 3 mm+ cutting in production: see 10W in the line. Not for cast acrylic or bare metal without spray.
Pros

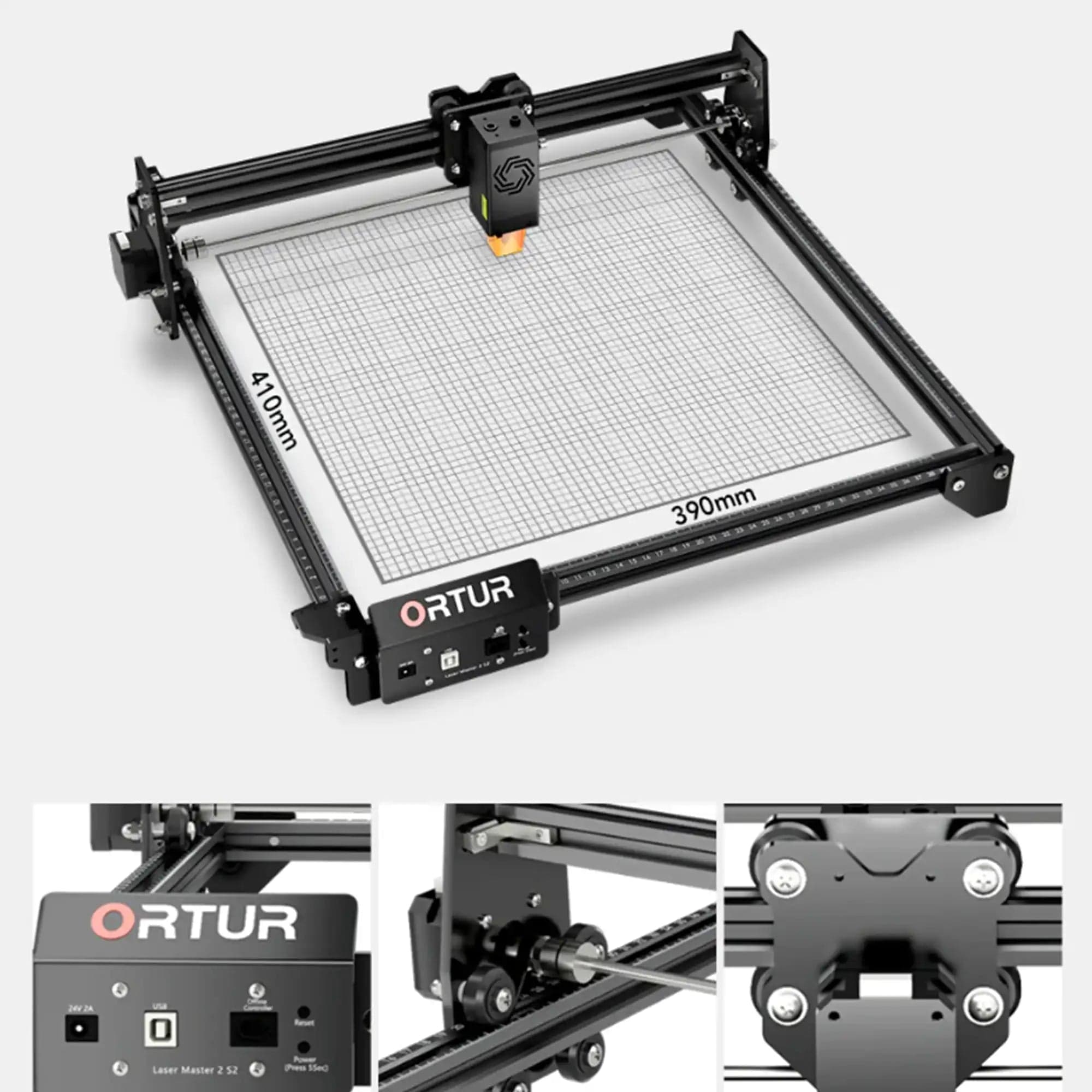

- Lowest-cost way into Ortur's 400 × 400 mm frame
- Fine ~0.07 mm spot for text, logos and leather marks
- Little smoke on engraving jobs, manageable with a simple window exhaust
Cons
- 3 mm basswood is the realistic cutting ceiling, at ~2–3 mm/s
- Older platform: Ortur's own listing quotes 5,000 mm/min, slow next to newer frames
- A 10 × 10 cm photo fill takes ~18–28 min in our tests
What this machine is for
Detailed engraving on organics and coated metal: occasional thin cuts only
Engraving-first desktop diode for makers who prioritize mark quality over cut speed

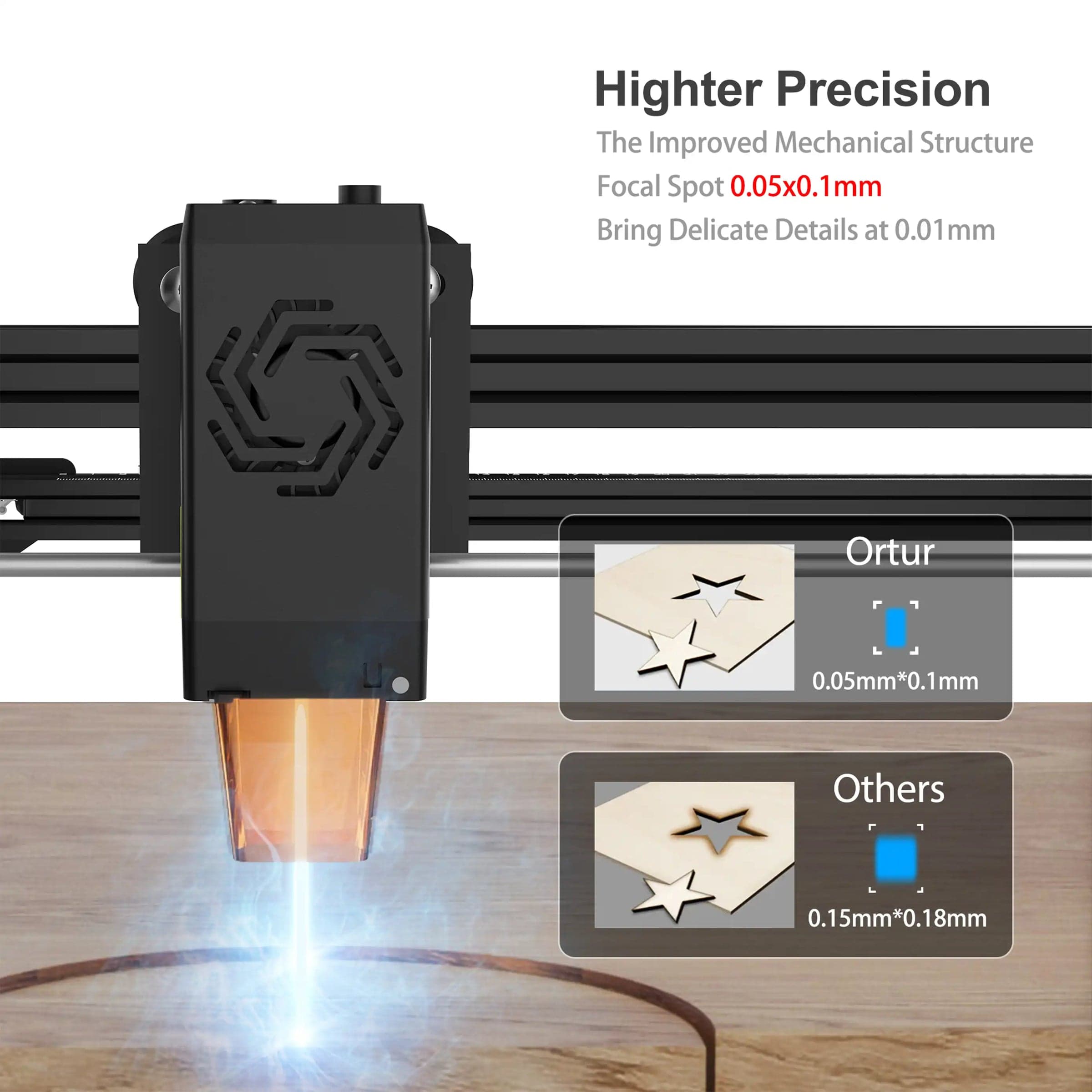

Laser spot size
~0.07 mm spot
Motion precision: 0.01 mm
Sample engrave job
~18–28 min
10 × 10 cm (4 × 4 in)
Sample cut job
~9–15 min
10 × 10 cm (4 × 4 in)
Reference benchmark: same job size on every machine so you can compare times fairly. Times are estimates for the reference job above; your design complexity and settings will change them.
Materials
- · Wood
- · Leather
- · Paper
Accessories & add-ons
Typical inclusions and add-ons for this profile : confirm your SKU.
- Optional
Enclosure / cabinet
Third-party enclosure improves smoke control and safety
- Recommended
Laser safety glasses
~450 nm diode: OD rated for your wavelength
- Recommended
Fire extinguisher
Editorial guidance : not a live parts list. See also: Ventilation setup · Safety basics
Practical notes
Beginner notes
This profile is the 5W SKU on Ortur LM2 S2. Read the TL;DR and benchmarks above, then compare other power options via the chips before buying.
Pro tips
Optimize for engraving: lower DPI on photos, higher scan speed on line art after test burns. Air assist still helps clarity. Compare benchmark times on the next tier before assuming you need more power.
Pro / technical specsRaw numbers for experienced users comparing machines.
- Max speed (spec)
- 300 mm/s
- Avg engrave speed
- 16–42 mm/s fill
- Avg cut speed
- 2–3 mm/s on 3 mm wood
Common questions
Which laser module is the LM2 S2 5W?
It uses Ortur's LU2-4 module, rated at 5.5W optical, sold in SF (short focus) and LF (long focus) versions. In October 2026 Ortur's store listed both at $199.99, with the LF version out of stock. Check which version a used machine carries before buying spare lenses.
Can the LM2 S2 5W cut 3 mm plywood?
Just about. In our benchmarks a 10 × 10 cm square in 3 mm basswood takes about 9–15 min at 2–3 mm/s. Plywood, with its glue layers, usually needs two or three passes; anything thicker is not reliable on this module.
LM2 S2 5W or 10W: which should I buy?
The gap is small: about $70 on our tracked listings ($179–279 against $249–349). The 10W cuts our 3 mm square in about 6–10 min and fills much faster. Keep the 5W only for engraving-only use on a tight budget, where its fine spot is an asset.
