Ortur · Diode

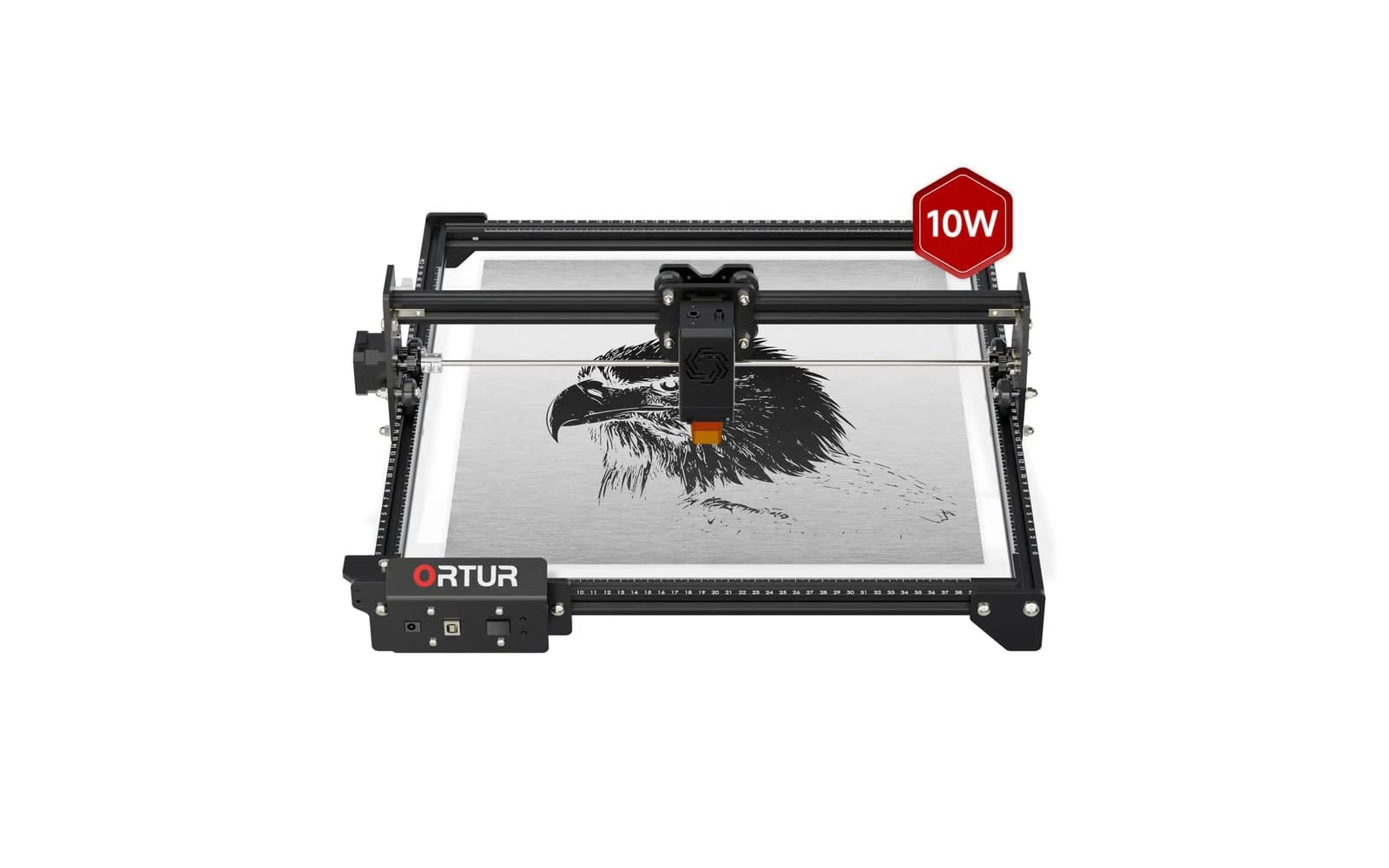

Ortur LM2 S2 · 10W
10W Ortur LM2 S2: faster engraves than 5W on the same frame
All Ortur models →Add to compare →
Last updated How we evaluate
Released January 2022
Choose a power option
Details below update for the selected power option.
Showing specs for: 10W
TL;DR
Ortur LM2 S2 10W is the higher-power SKU in the LM2 S2 family: better cutting on thin wood and quicker fills than 5W, still open-frame and budget-oriented.
Best for
What makes this machine stand out
Hardware and workflow features worth understanding before you buy : not just wattage on a label.
Big step for a small price gap
Roughly a third faster on 3 mm cuts and several times faster on fills than the lower-power LM2 S2, for about $70 more.
Good used value

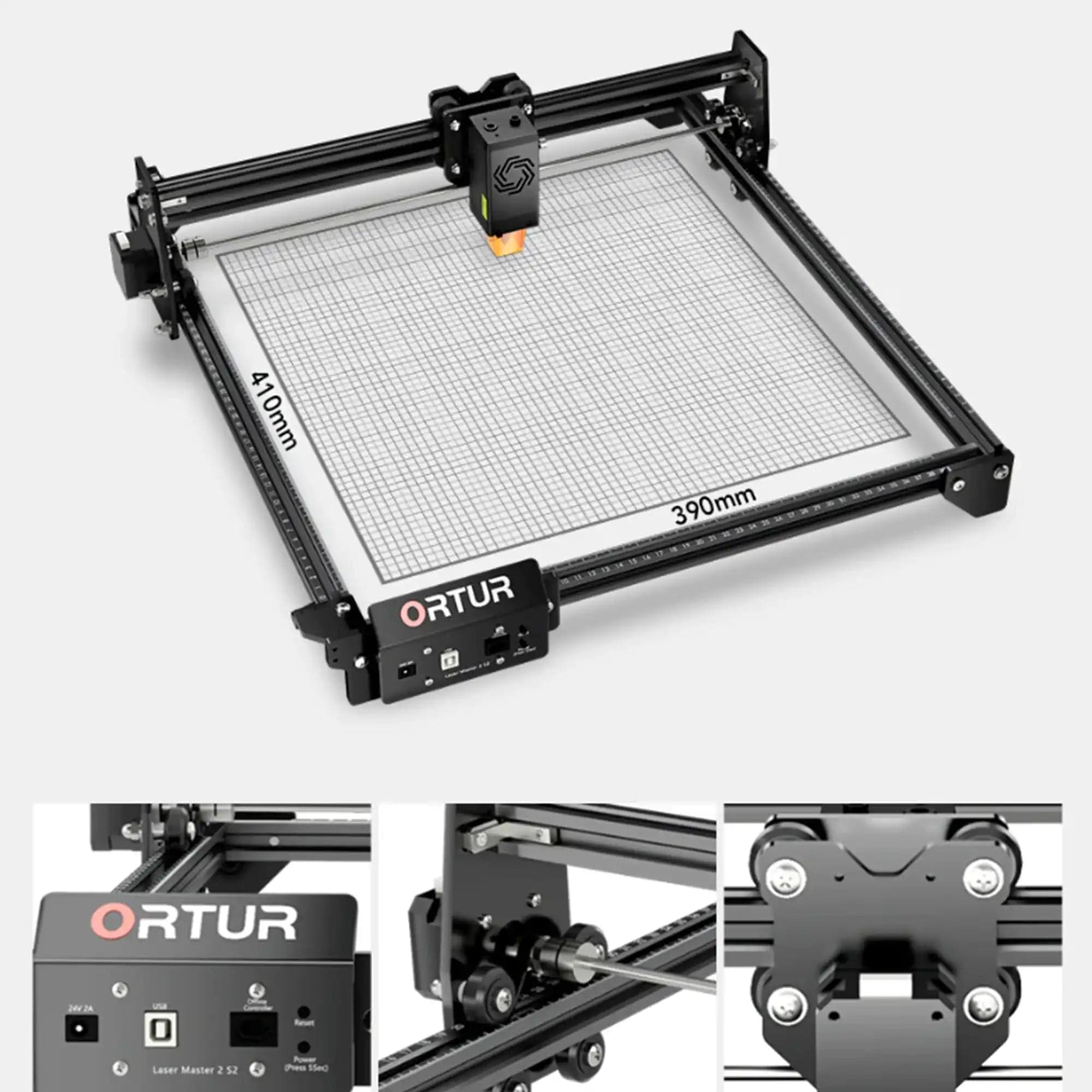

Out of stock new in October 2026, it often shows up second-hand at entry-level prices with a large 400 × 400 mm frame.
Our verdict
Ideal if you
Ortur LM2 S2 10W suits makers who sell marks, photos, and gifts more than daily panel cutting. Reasonable open-frame entry price.
Skip if you
Skip if you already quote 4 mm+ cutting in production. Not for cast acrylic or bare metal without spray.
Pros
- Cuts 3 mm basswood squares in ~6–10 min in our benchmarks
- Filled engraving at ~60–150 mm/s: a 10 × 10 cm photo in ~12–18 min
- Same frame and accessories as the lower-power LM2 S2
Cons
- Ortur's LU2-10A listing was out of stock in October 2026
- Slightly wider ~0.08 mm spot: small text is a little less crisp than with the lower-power module
- Stock thicker than 5 mm needs multiple passes and air assist
What this machine is for
High-quality hobby and light-business engraving with light, slow cutting

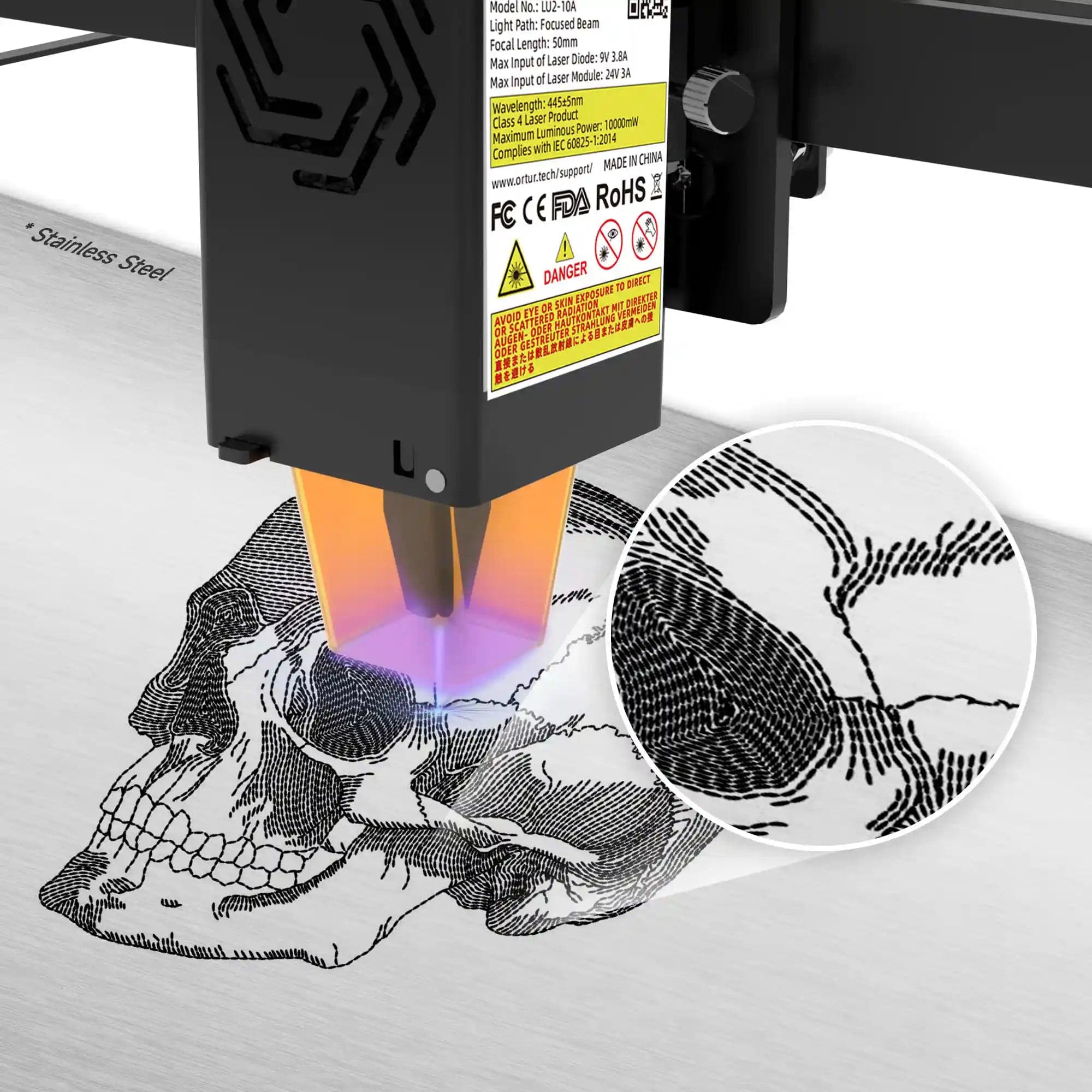

10W module · Ortur LM2 S2

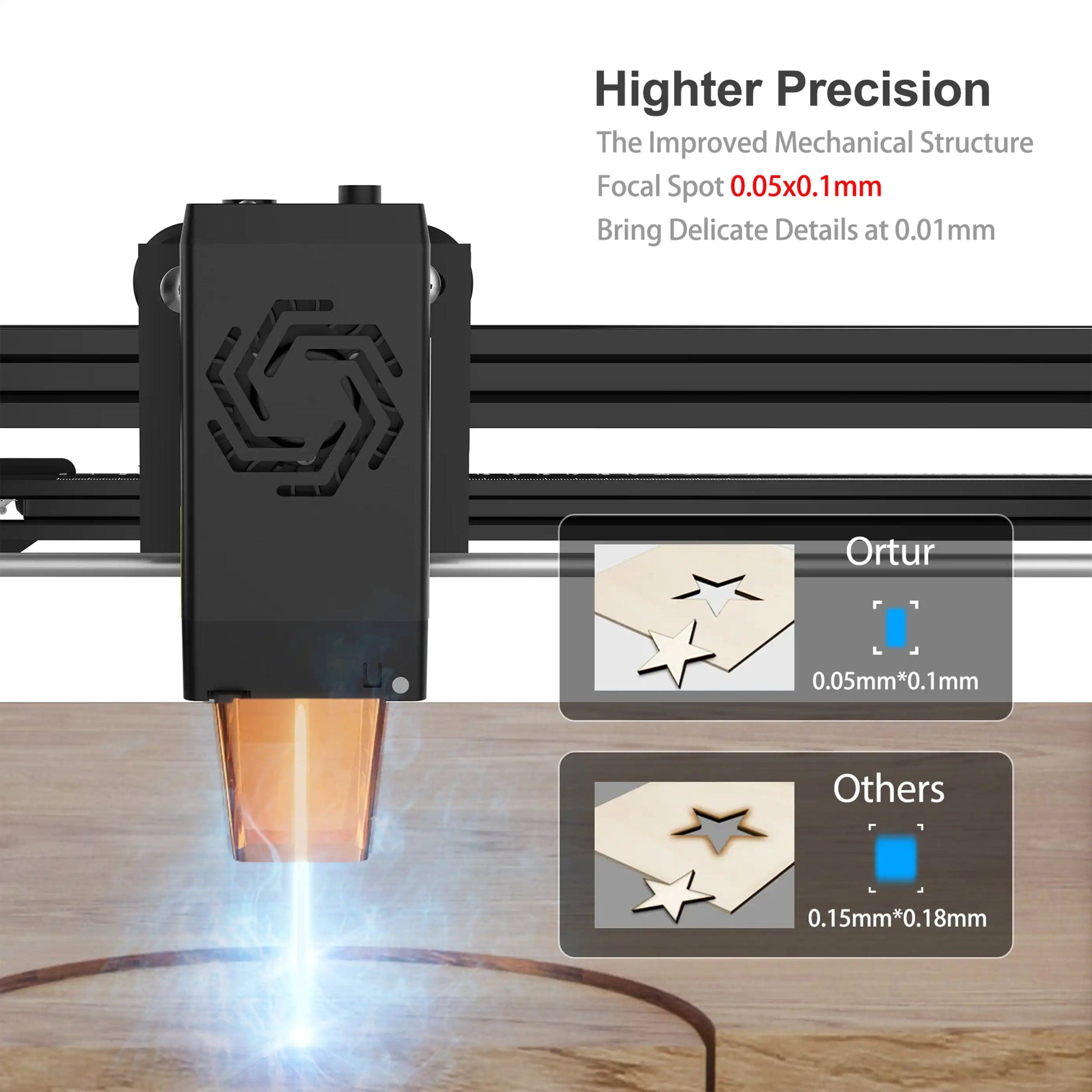

Laser spot size
~0.08 mm spot
Motion precision: 0.01 mm
Sample engrave job
~12–18 min
10 × 10 cm (4 × 4 in)
Sample cut job
~6–10 min
10 × 10 cm (4 × 4 in)
Reference benchmark: same job size on every machine so you can compare times fairly. Times are estimates for the reference job above; your design complexity and settings will change them.
Materials
- · Wood
- · Leather
- · Slate (dark)
Accessories & add-ons
Typical inclusions and add-ons for this profile : confirm your SKU.
- Optional
Enclosure / cabinet
Third-party enclosure improves smoke control and safety
- Recommended
Laser safety glasses
~450 nm diode: OD rated for your wavelength
- Recommended
Fire extinguisher
Editorial guidance : not a live parts list. See also: Ventilation setup · Safety basics
Practical notes
Beginner notes
This profile is the 10W SKU on Ortur LM2 S2. Read the TL;DR and benchmarks above, then compare other power options via the chips before buying.
Pro tips
Run material test grids at engraving speeds first. Add air assist for light cuts. If cut jobs exceed ~30% of your week, open the higher-watt profile on this site and compare times.
Pro / technical specsRaw numbers for experienced users comparing machines.
- Max speed (spec)
- 10,000 mm/min (marketing)
- Avg engrave speed
- 60–150 mm/s fill
- Avg cut speed
- 4–10 mm/s on 3 mm wood
Common questions
Is the LM2 S2 10W still available new?
Ortur's store listed the LM2 S2 with the LU2-10A 10W module at $209.99 in October 2026, but out of stock. Expect to buy it used or from remaining reseller stock; Ortur also runs pre-owned listings for its older machines.
How thick can the LM2 S2 10W cut?
Ortur's page shows 12 mm wood and 5 mm acrylic cut in one pass, but those images sit in the LM2 Pro S2 section and may not apply to this frame. In our benchmarks a 10 × 10 cm square in 3 mm basswood takes about 6–10 min at 4–10 mm/s; plan 3–5 mm in one or two passes.
Is the 10W worth it over the LM2 S2 5W?
For about $70 more on our tracked listings, yes in most cases: 3 mm cut times drop from 9–15 min to 6–10 min, and photo fills run at about 60–150 mm/s instead of 16–42 mm/s. The 5W only makes sense for engraving-only use on the smallest budget.
Alternatives to the Ortur LM2 S2 10W
Machines in the same space, picked from our database by type, price, and score.
Ortur · Diode · $140 – $1,740
The 10W Laser Master 3 is Ortur's lower-power SKU on the same frame. Ideal for learning and engraving; cutters should choose the 20W version.
Sculpfun · Diode · $299 – $449
Sculpfun S9 10W is the 10W SKU on the Sculpfun sculpfun s9 line. Before S30 Ultra, the S9 was Sculpfun's workhorse. Verify optical power on the listing: do not assume combined-watt marketing.
Sculpfun · Diode · $270
Sculpfun S10 10W (2022) is a mid-size open-frame engraver with a sturdier industrial frame than S9, ~385 mm work area, and detachable laser cover. Positioned between budget S9 and S30 families for makers who want better rigidity without Ultra pricing.
