4 manufacturer photos · 1 / 4
xTool · Diode

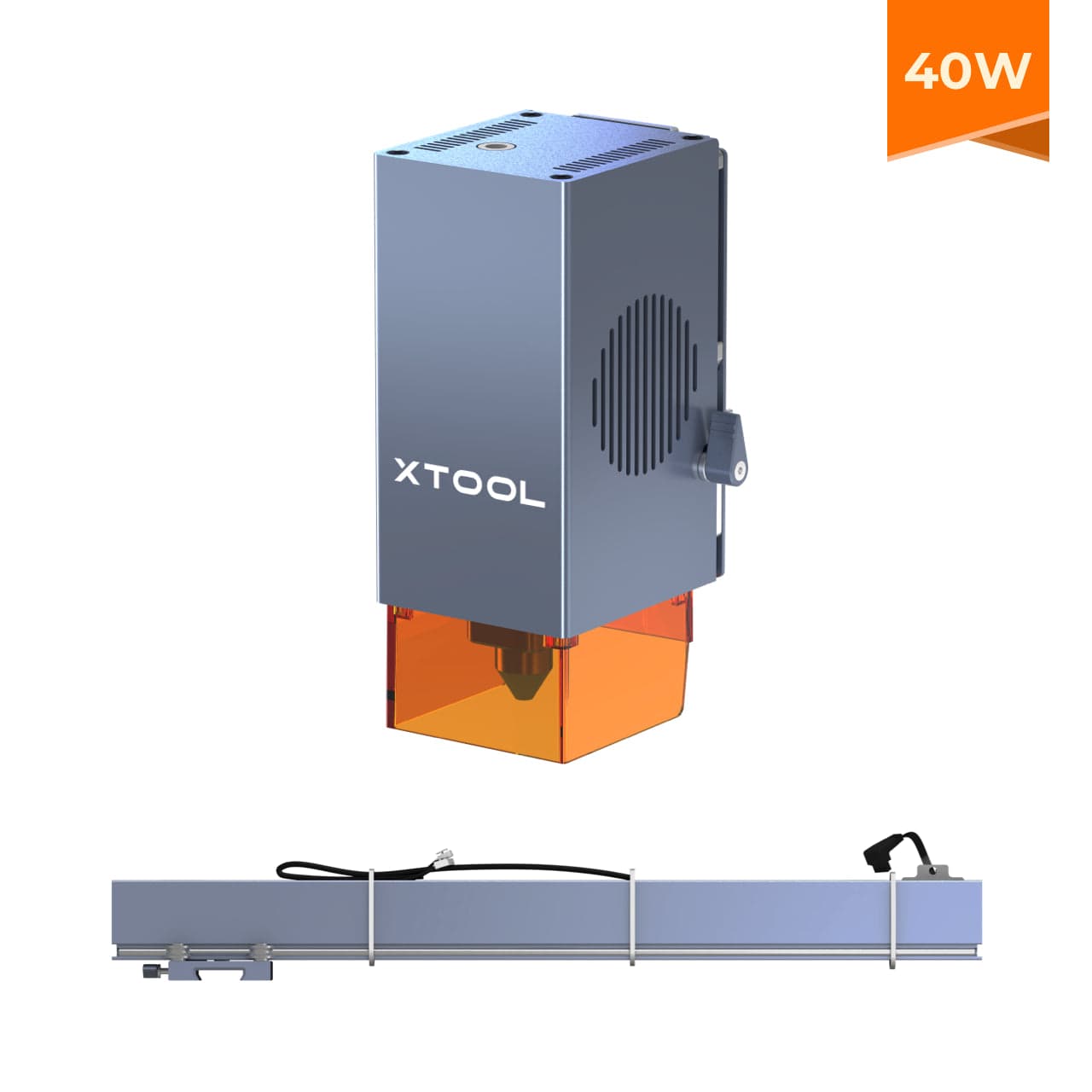

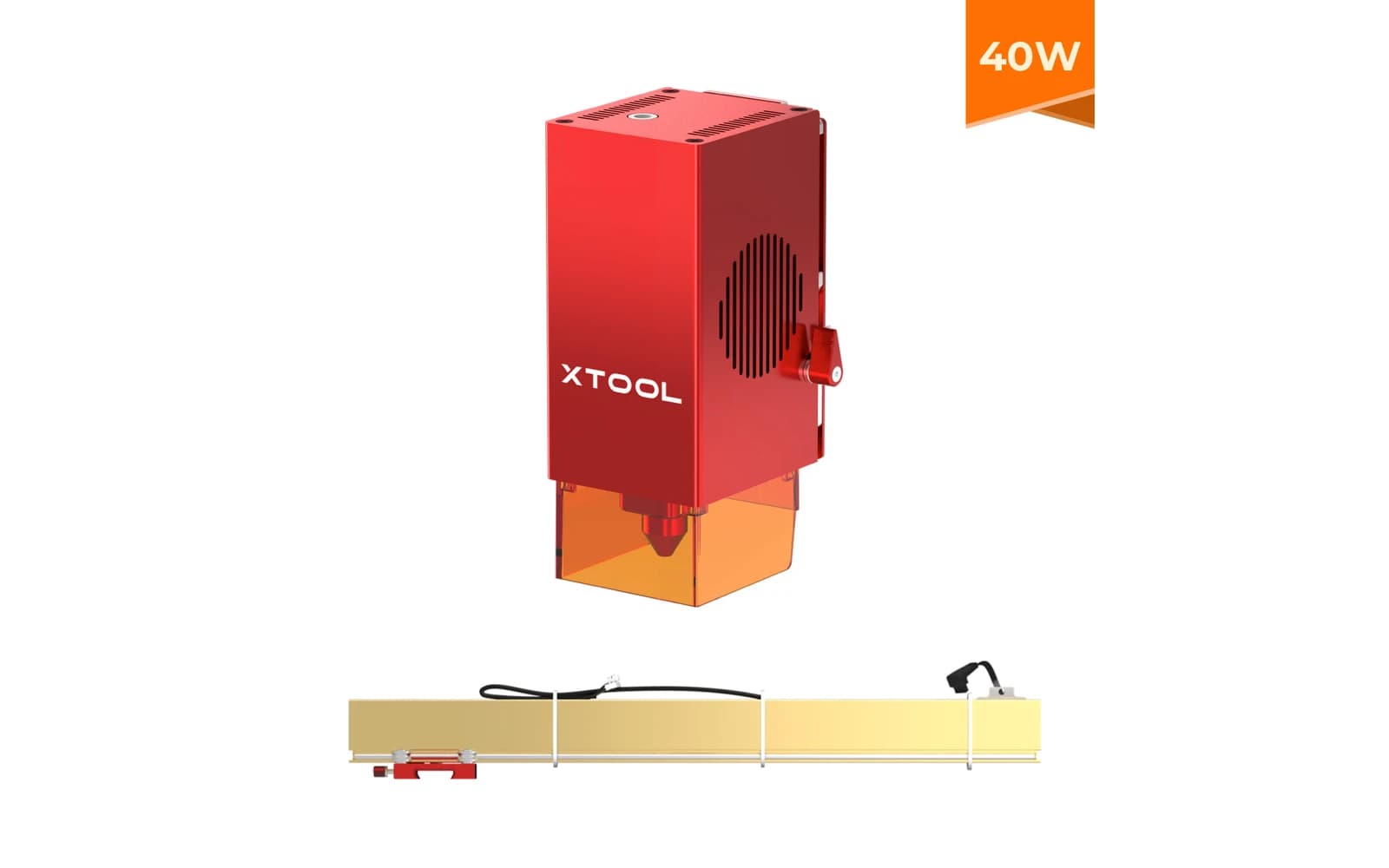

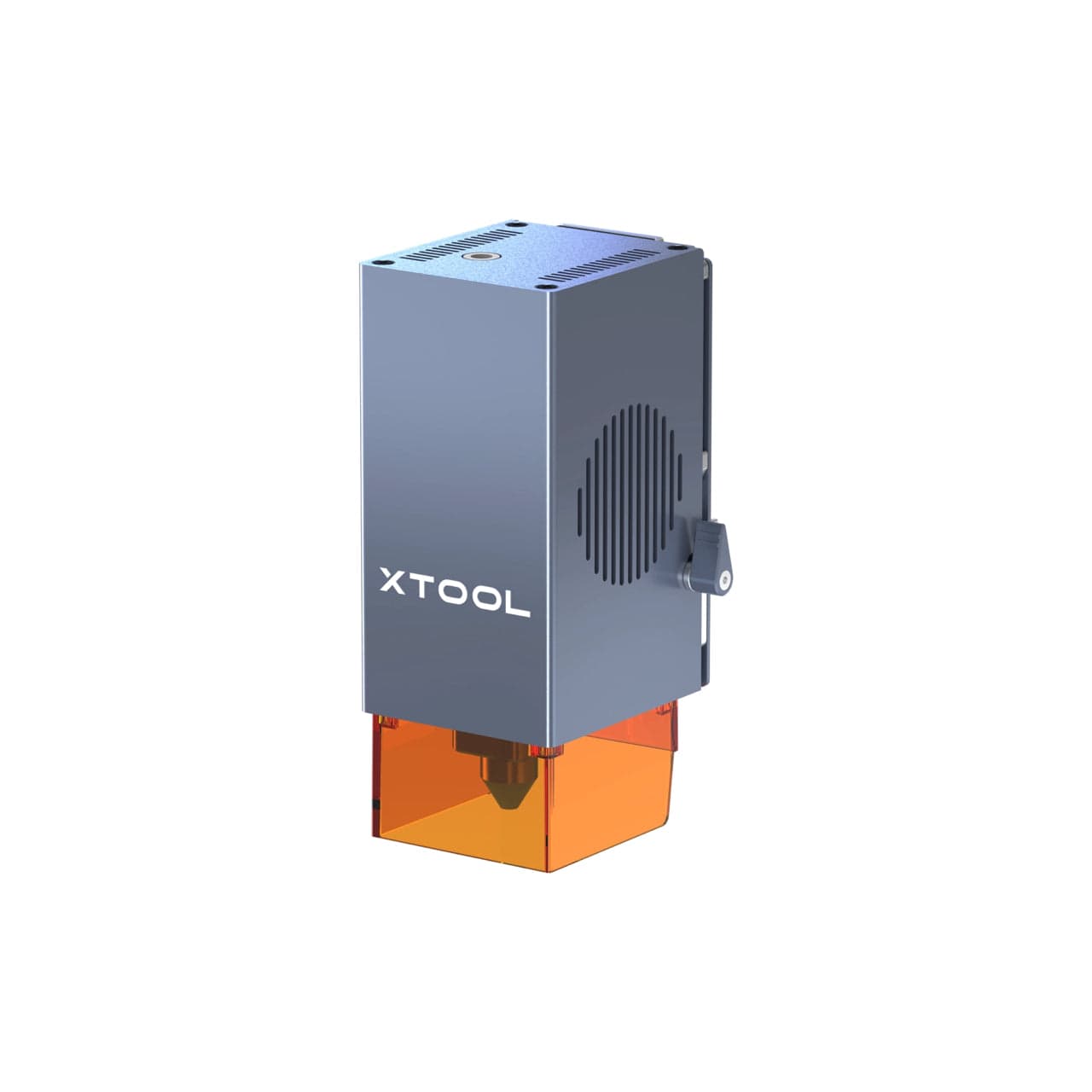

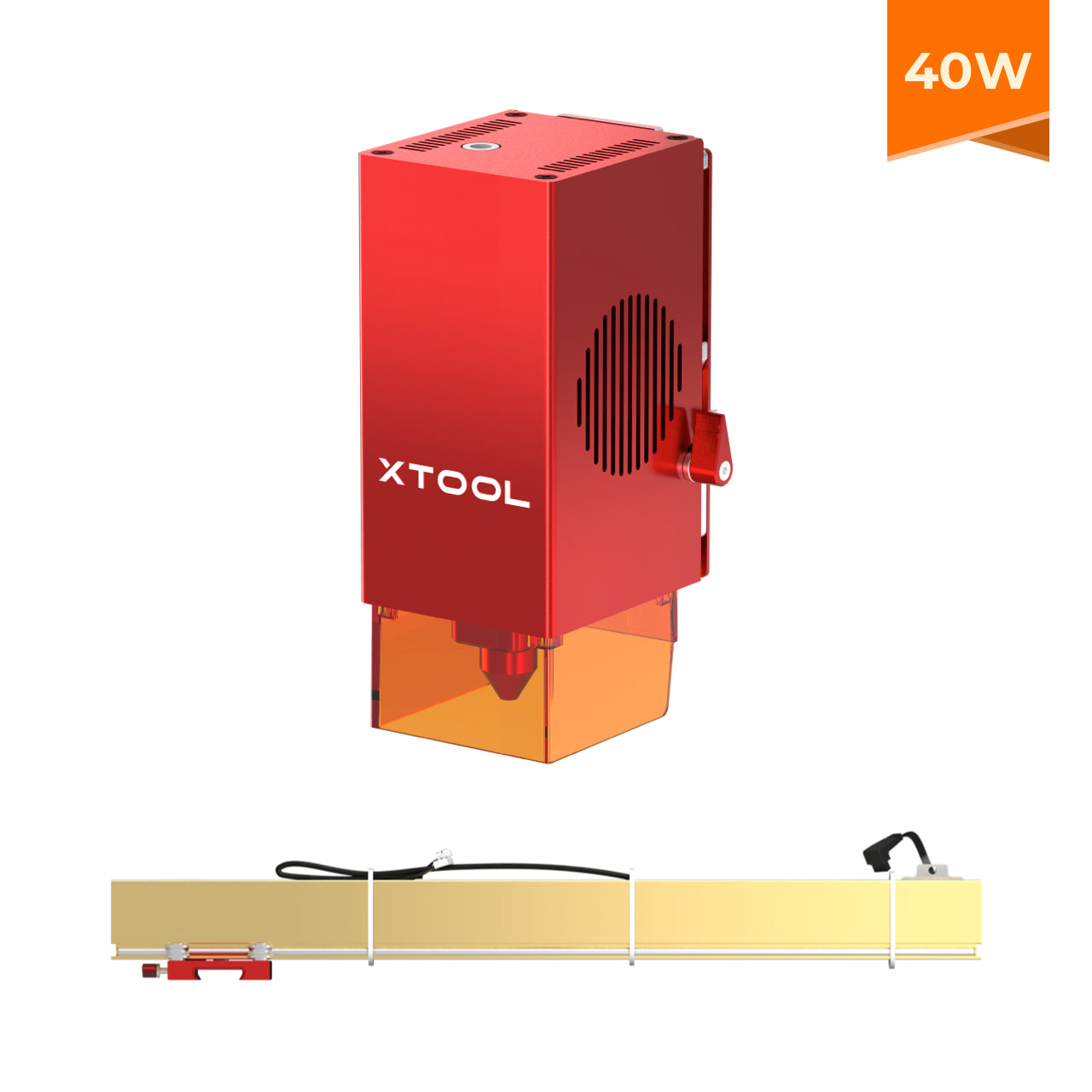

xTool D1 Pro · 40W diode
40W Top D1 Pro module: strongest open-frame xTool diode
All xTool models →Add to compare →
Last updated How we evaluate
Released March 2023
Choose installed module
Details below match the selected module.
Showing module: 40W diode
TL;DR
The 40W D1 Pro module swaps onto the same frame as 5W–20W heads. Best cut headroom in the line; verify optical power on the listing.
Compare the xTool D1 Pro 40W to…
Popular side-by-side matchups with full specs, scores, and an honest verdict.
Best for
What makes this machine stand out
Hardware and workflow features worth understanding before you buy : not just wattage on a label.
Swappable laser module
You can upgrade optical power (or add an infrared module on some lines) by swapping the laser head on the same chassis : not buying a whole new machine. Check connector compatibility and firmware before assuming your future 40W module fits today’s 10W purchase.
Open-frame : plan safety first
There is no factory enclosure: you wear OD-rated glasses, control smoke, and keep kids/pets away. You trade cabinet convenience for price and access : fine in a dedicated workshop, stressful in a living room without a plan.
LightBurn compatible
LightBurn support means advanced layers, camera tools, and workflows many makers outgrow the stock app with. Confirm your exact controller board before assuming full features : some machines need a paid license separately.
Our verdict
Ideal if you
The 40W diode module is the most cut-focused head on xTool D1 Pro: thicker basswood and faster fills than entry modules on the same chassis.
Skip if you
Overkill if you only do fine engraving. Still a diode: clear cast acrylic means CO₂. Plan glasses and exhaust if the chassis is open-frame.
Pros
- Strongest cut headroom in the line: about 10 mm basswood-class stock in benchmarks
- Swappable head on the same chassis: upgrade power without replacing the whole machine
- Open-frame: plan laser glasses, exhaust, and workspace rules from day one
Cons
- Clear cast acrylic and thick production cutting still favor CO₂, not diode power alone
- Confirm optical wattage on the listing before you buy
What this machine is for
Maximum cut speed and depth in the line: engraving remains strong at tuned speeds
40W module · xTool D1 Pro
Laser spot size
~0.08 mm spot
Motion precision: 0.01 mm
Sample engrave job
~7–10 min
10 × 10 cm (4 × 4 in)
Sample cut job
~4–6 min
10 × 10 cm (4 × 4 in)
Reference benchmark: same job size on every machine so you can compare times fairly. Times are estimates for the reference job above; your design complexity and settings will change them.
Materials
- · Wood
- · Leather
- · Slate
- · Anodized aluminum
- · Stainless steel (with coating spray)
- · Ceramic
Accessories & add-ons
Typical inclusions and add-ons for this profile : confirm your SKU.
- Optional
Enclosure / cabinet
Third-party enclosure improves smoke control and safety
- Recommended
Laser safety glasses
~450 nm diode: OD rated for your wavelength
- Recommended
Fire extinguisher
Editorial guidance : not a live parts list. See also: Ventilation setup · Safety basics
Practical notes
Beginner notes
This profile is the 40W SKU on xTool D1 Pro. Read the TL;DR and benchmarks above, then compare other modules via the chips before buying.
Pro tips
Treat engraving and cutting as separate profiles. Push cut speeds only after test squares on your material. Compare CO₂ only when clear acrylic or all-day production enters the picture.
Pro / technical specsRaw numbers for experienced users comparing machines.
- Max speed (spec)
- 400 mm/s
- Avg engrave speed
- 80–180 mm/s fill
- Avg cut speed
- 4–12 mm/s on 3 mm wood
