Creality · Diode

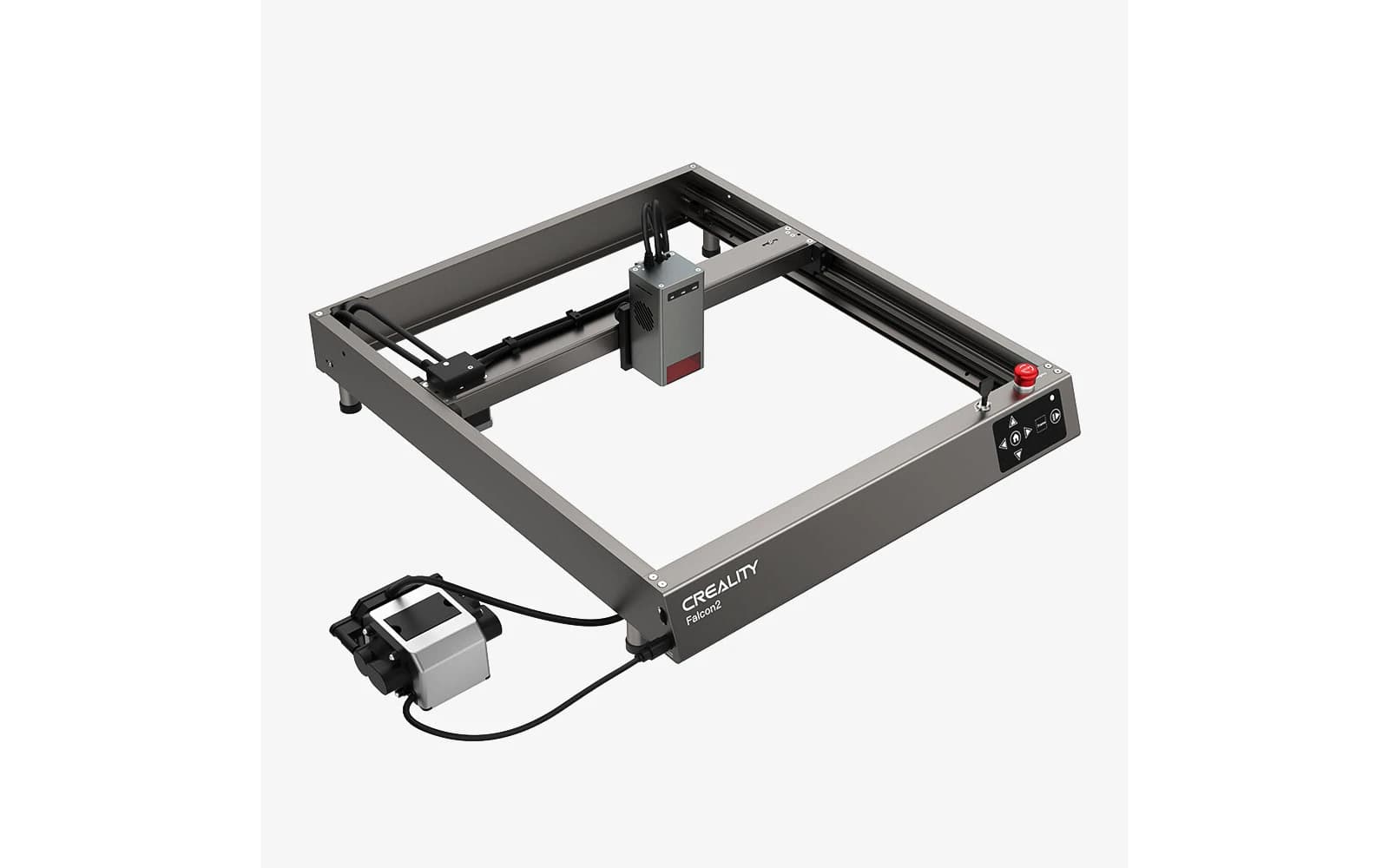

Creality Falcon2 · 22W
22W Entry Creality diode: simple upgrade path for 3D printer owners
All Creality models →Add to compare →
Last updated How we evaluate
Released February 2024
Choose a power option
Details below update for the selected power option.
Showing specs for: 22W
TL;DR
Creality Falcon2 22W is the 22W SKU on the Creality creality falcon2 line. The base Falcon2 12W is Creality's affordable open-frame diode. Verify optical power on the listing: do not assume combined-watt marketing.
Compare the Creality Falcon2 22W to…
Popular side-by-side matchups with full specs, scores, and an honest verdict.
Best for
What makes this machine stand out
Hardware and workflow features worth understanding before you buy : not just wattage on a label.
10 mm basswood in one pass
Creality rates the 22W module for 10 mm basswood in a single pass, which covers boxes, signs and ornaments in common plywood thicknesses.
Air assist built in
The integrated air assist clears smoke from the cut, for cleaner edges and less charring without buying a separate pump.
Our verdict
Ideal if you
Creality Falcon2 22W targets mixed engraving and wood-cutting weeks: fewer passes on basswood and dark acrylic than weaker SKUs in the same line.
Skip if you
Wrong pick if you never engrave and only wanted the lowest price. Ultra-fine photo work can look better on an engraving-first SKU. Open-frame: safety and smoke are on you.
Pros
- 10 mm basswood in one pass, per Creality
- Integrated air assist for cleaner cuts
- Creality claims colour marking on stainless steel with the right settings
Cons
- Open frame: goggles, ventilation and fire safety are up to you
- Wider spot (about 0.10 mm) than lower-power diodes: very fine photo detail is softer
- Thick hardwood and clear acrylic remain out of reach
What this machine is for
Faster cutting and deeper hobby cuts while keeping solid engraving capability
Cut-biased diode tier for makers who outgrew 10–20W job times but stay on the same frame
Laser spot size
~0.10 mm spot
Motion precision: 0.01 mm
Sample engrave job
~12–18 min
10 × 10 cm (4 × 4 in)
Sample cut job
~6–10 min
10 × 10 cm (4 × 4 in)
Reference benchmark: same job size on every machine so you can compare times fairly. Times are estimates for the reference job above; your design complexity and settings will change them.
Materials
- · Wood
- · Leather
- · Slate
- · Anodized aluminum
Accessories & add-ons
Typical inclusions and add-ons for this profile : confirm your SKU.
- Optional
Enclosure / cabinet
Third-party enclosure improves smoke control and safety
- Recommended
Laser safety glasses
~450 nm diode: OD rated for your wavelength
- Recommended
Fire extinguisher
Editorial guidance : not a live parts list. See also: Ventilation setup · Safety basics
Practical notes
Beginner notes
This profile is the 22W SKU on Creality Falcon2. Read the TL;DR and benchmarks above, then compare other power options via the chips before buying.
Pro tips
Tune cut passes with air assist and focus checks. For photo engraving, slow down vs your cut presets: this head is optimized for throughput on wood, not only finesse.
Pro / technical specsRaw numbers for experienced users comparing machines.
- Max speed (spec)
- 300 mm/s
- Avg engrave speed
- 65–140 mm/s fill
- Avg cut speed
- 3–8 mm/s on 2–4 mm wood
Common questions
What can the Falcon2 22W cut in one pass?
Creality rates it at 10 mm basswood in one pass and 0.1 mm thin metal sheet; its own settings guide uses full power at 700 mm/min for 2 mm basswood. Our materials list stays at about 8 mm for clean, repeatable cuts.
Falcon2 22W or 12W?
The 22W is the current model and fills a 10 × 10 cm photo in about 12–18 min against 17–26 min for the 12W in our benchmark. The 12W is discontinued; unless you find one used for far less, take the 22W.
Is the 22W enough, or should I look at a 40W?
For ornaments, boxes in 3–6 mm plywood and engraving, the 22W is enough. Creality also sells a Falcon2 40W ($639 single unit, $739 Basic Kit in October 2026, against $589 for the 22W Basic Kit); it is worth the extra if you cut 10 mm stock every week.
